Rare blue phosphor 5LO38M Mini 5 cm CRT oscilloscope cathode ray tube NOS
Rare blue phosphor 5LO38M Mini 5 cm CRT oscilloscope cathode ray tube NOS
Regular price
€41,67 EUR
Regular price
Sale price
€41,67 EUR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

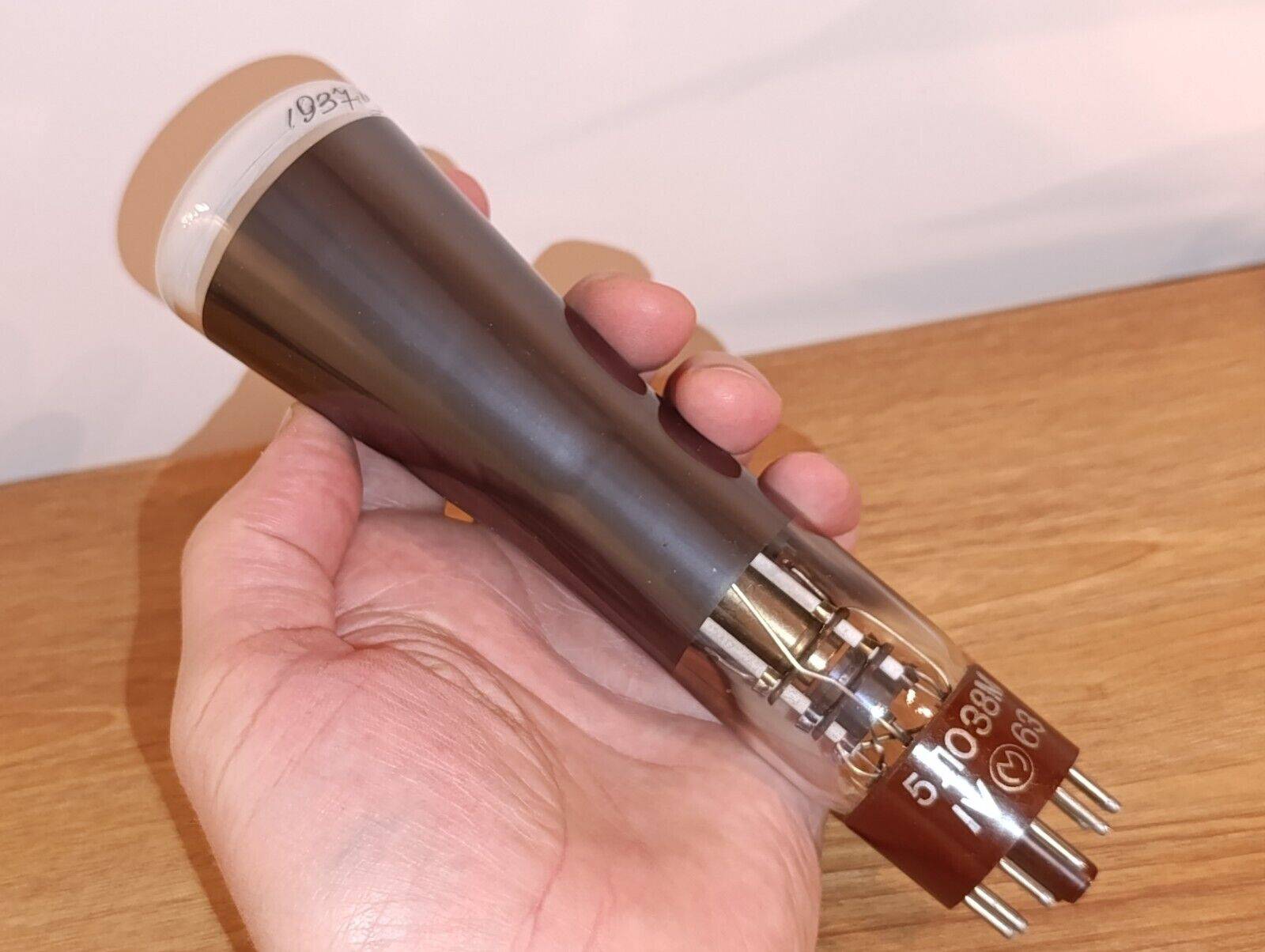

5LO38M(5ЛО38M) Vintage Oscilloscope CRT Tube
5LO38I (5ЛО38И) is a small vintage CRT tube. Made in USSR (Soviet Union).
DIY clock based on this tube, driver kit - contact seller: "al-truism" on ebay!
Tube 5LO38M small-sized single-beam (5LO-38M, 5L 38M, 5L038M, 5L0-38M, 5L0 38M)
For visual observation of various electrical processes in radio electronic devices.
The color of the screen is green.

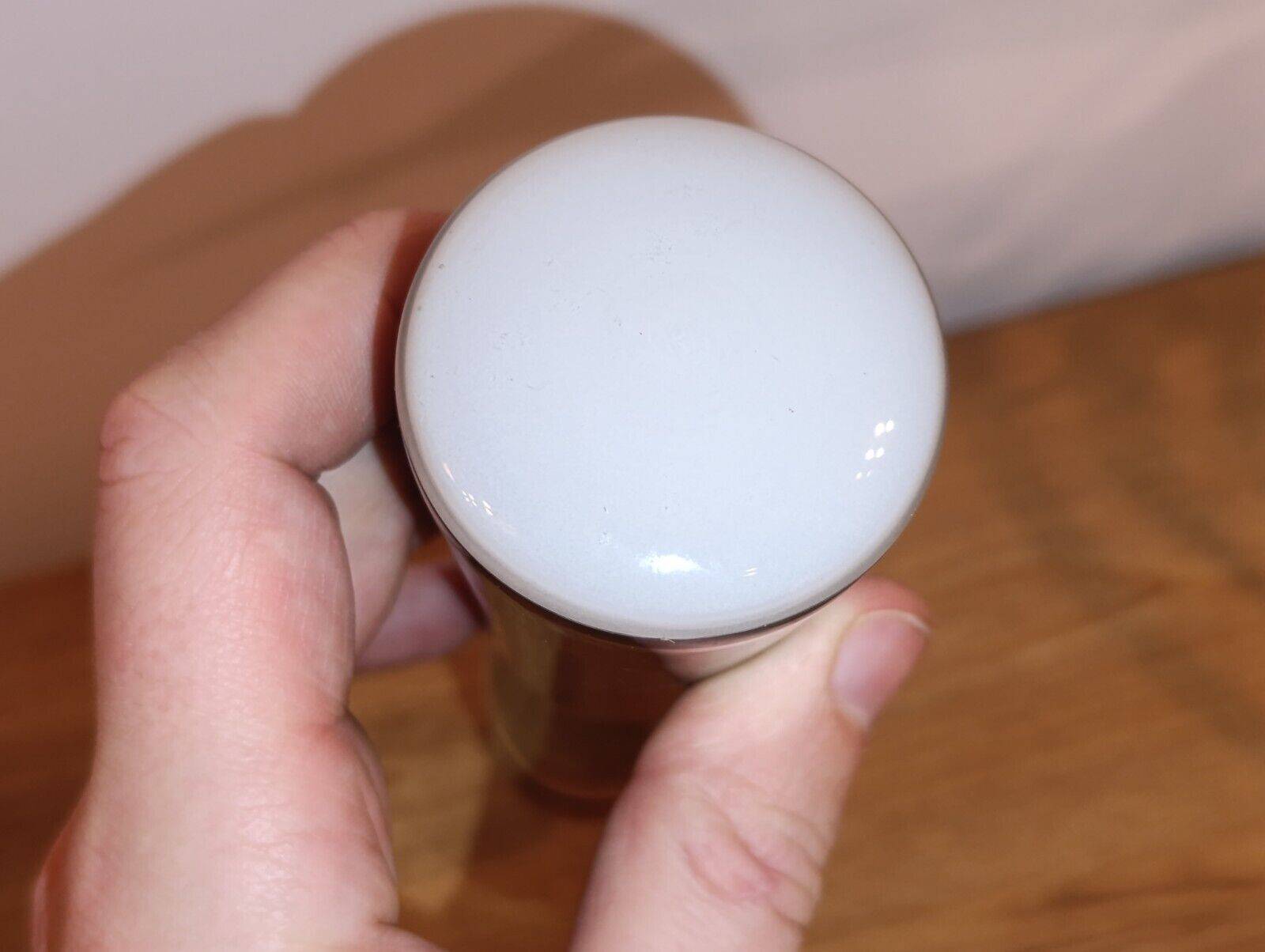

The diameter of the working part of the screen is 44mm.
Small-sized single-beam tube 5LO38M with a rounded screen and a convex surface. It is intended for visual observation of various electrical processes in radio electronic devices.
The color of the glow of the screen is 5L38 and green. The diameter of the working part of the screen is 44mm. The width of the focused line in the center of the screen is not more than 0.5 mm. The afterglow time is not more than 0.1 s.

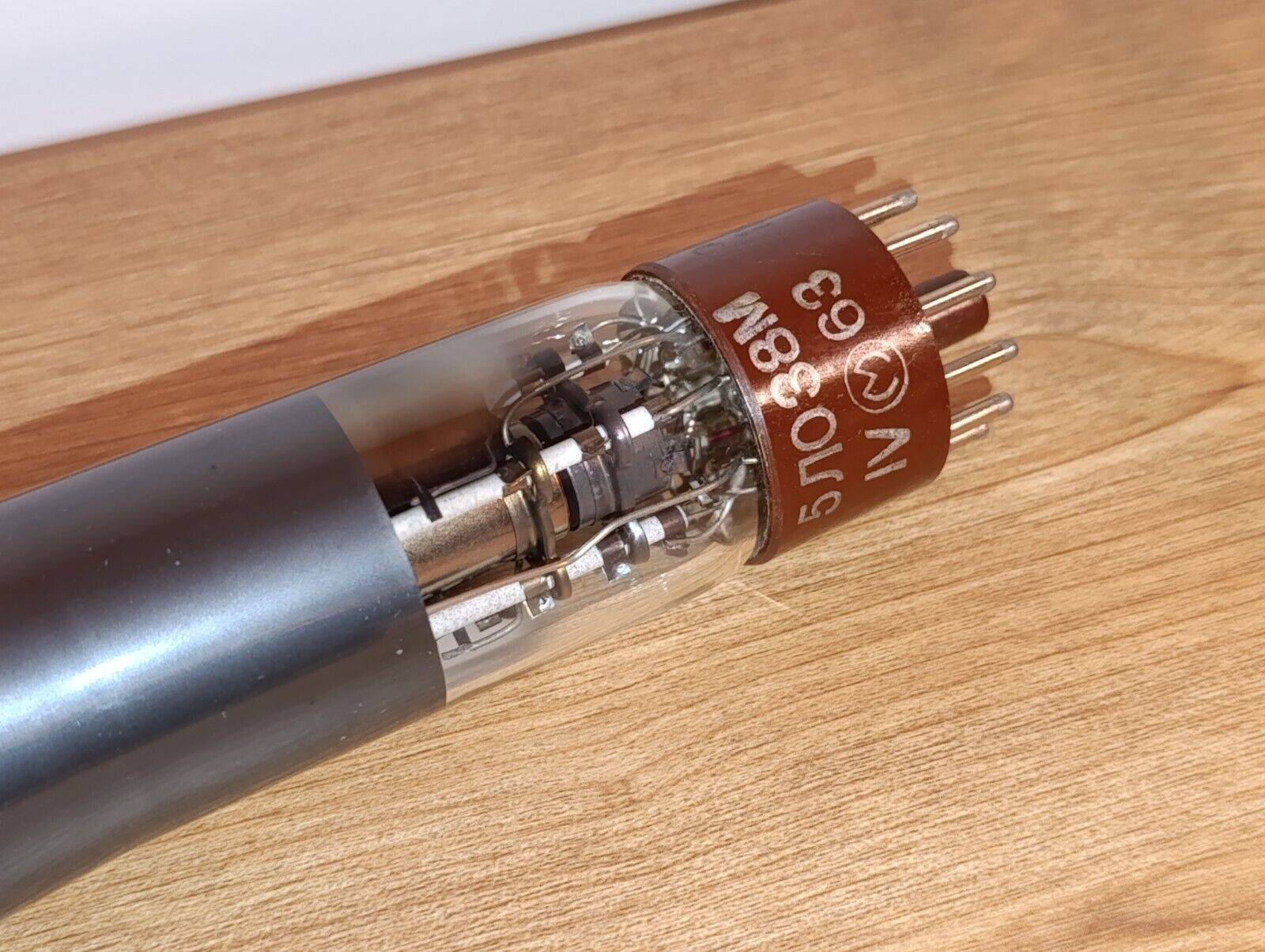

Electrode leads: 1, 11-heater; 2-cathode; 3 - temporary deflection plate X1; 4-first anode; 6-signal deflecting plate Y1; 7 - the second anode; 8 - temporary deflection plate X2; 9 - signal deflecting plate V2; 10 - modulator; 5-do not connect.
Decoration - glass with a plinth. Weight, 0,25 kg.
| Name | Not less | Not more |
| Heating voltage, V | 5,7 | 6,9 |
| First anode voltage, V | 550 | |
| Second anode voltage, V | 500 | 1100 |
| Modulation voltage, V | - 125 | 0 |
| Heater voltage relative to the cathode, V | -125 | 0 |
| The voltage between any of the deflecting plates and the second anode, V | -660 | 660 |
| The impedance in the circuit of any of the deflecting plates at a frequency of 50 Hz, MOhm | 1,5 | |
| Resistance in the modulator circuit, MOhm | 1,5 |
---------------------------------------------------------------------------------------------------------------------------------------------------
Import duties, taxes and chargers are not included in the item price or shipping charges. These charges are the buyer's responsibility.
Please check with your country's customs office to determine what these additional costs will be prior to bidding buying.
Combine shipping is accepted.
If you need less or more items of this type, or if you need add some other items, contact us, and we will make special listing for you.
Give us the list of items you need, and we'll do the rest.
We have many other vacuum tubes for audio and other, ask us if you need any of them.
Items are shipped from Lithuania Post (Europe Union) via expedited International tracking.
