OG-4 OG4 DEKATRON COUNTING SPINNER NIXIE NOS TUBE PLASTIC BASE 1pcs.

OG-4 OG4 DEKATRON COUNTING SPINNER NIXIE NOS TUBE PLASTIC BASE 1pcs.

€15,83 EUR
€15,83 EUR
Sale Sold out
Shipping calculated at checkout.

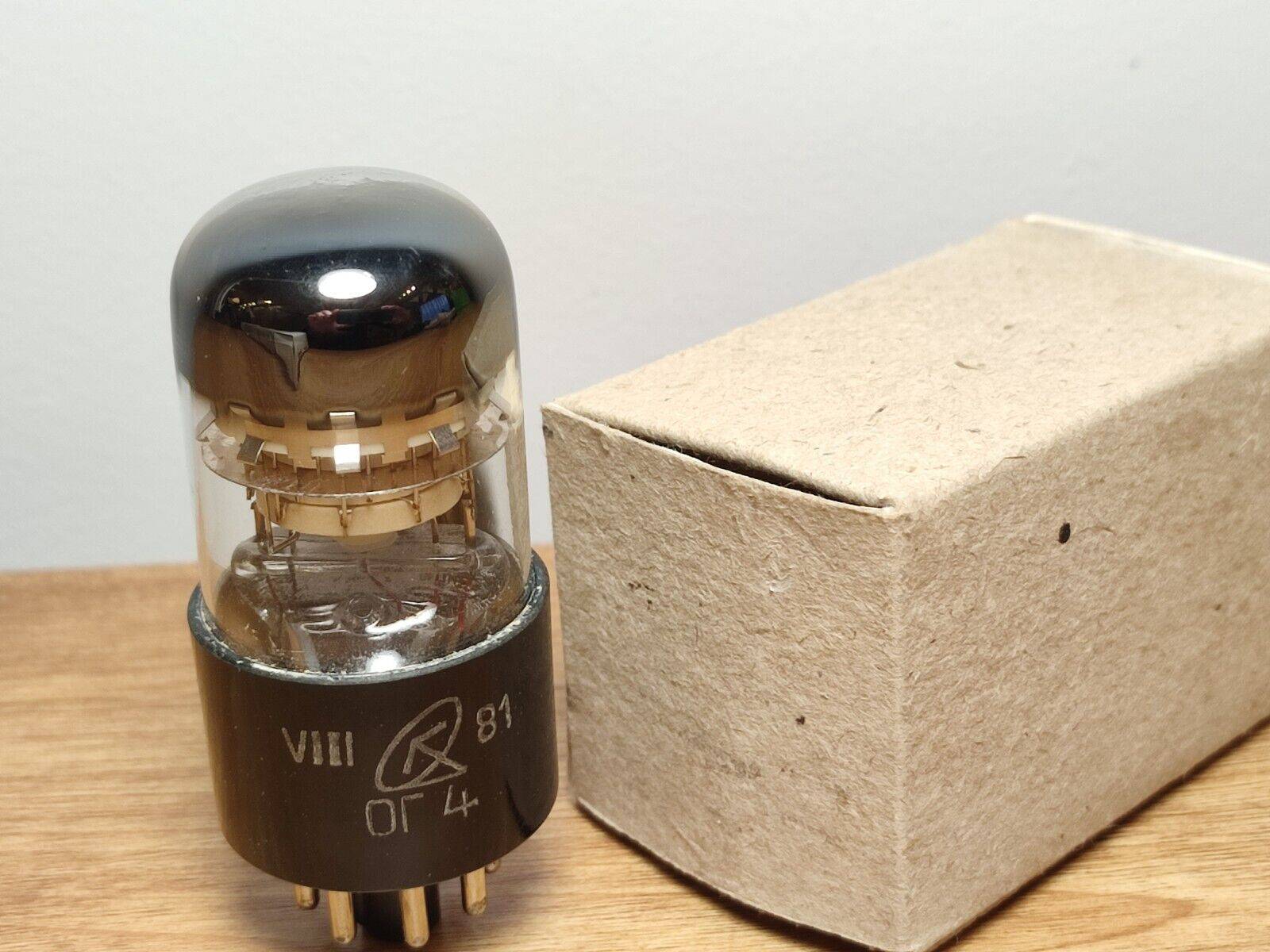

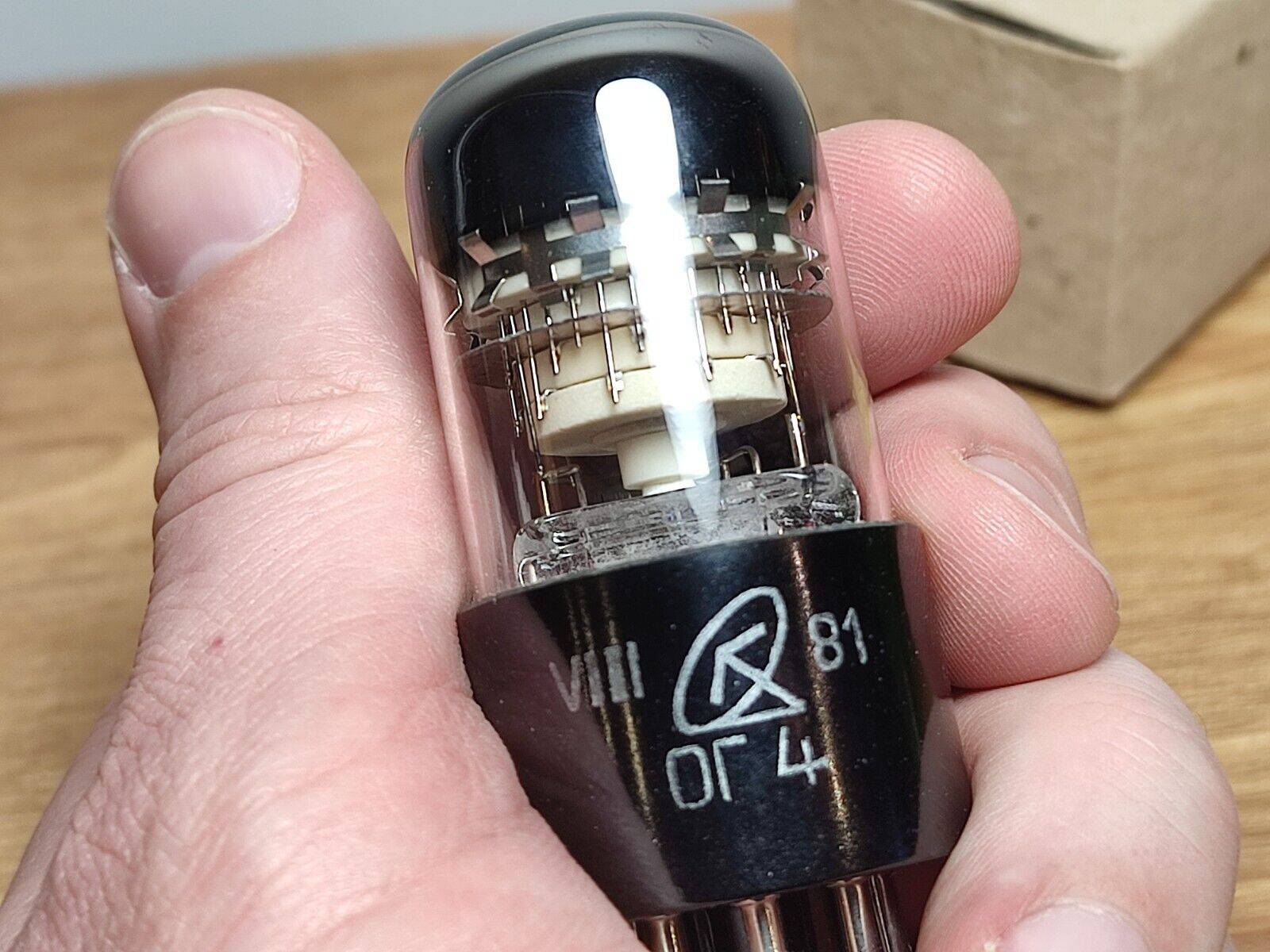

OG-4 OG4 DEKATRON COUNTING SPINNER NIXIE NOS TUBE PLASTIC BASE 1pcs.


1 pcs lot. DATES CAN BE DIFFERENT THANK THE PHOTO!!!

Made in USSR RARE TUBE
tube type OG4 (ОГ4)
Brand Reflector/Sovtec
Substitutes -
Counting direction bidirectional
Operation double pulse
Sort counting tube
Base K8A
Socket K8A
Zero position aligned with spline
Counting steps 10
Number of guides 2
Gas filling Neon
Tube diameter max. mm 33
Tube height max. mm 76
Max. counting speed kHz 2
Supply volt. min. V 375 (425)
Supply volt. typ. V 450
Maintaining voltage min. V 130
Maintaining voltage typ. V 150
Maintaining voltage max. V 170
Anode/cath. current min. µA 300
Anode/cath. current typ. µA 400
Anode/cath. current max. µA 450 (500)
Power supply power min. mW 180
Anode resistor typical kΩ 820
Guide bias volt. min. V 30
Guide bias typ pulse op. V 35
Guide bias volt. max. V 40
Guide signal voltage pulse Vp 135-200 (175)
Guide signal pulse duration min µs 160-500 (160)
Output voltage V 15

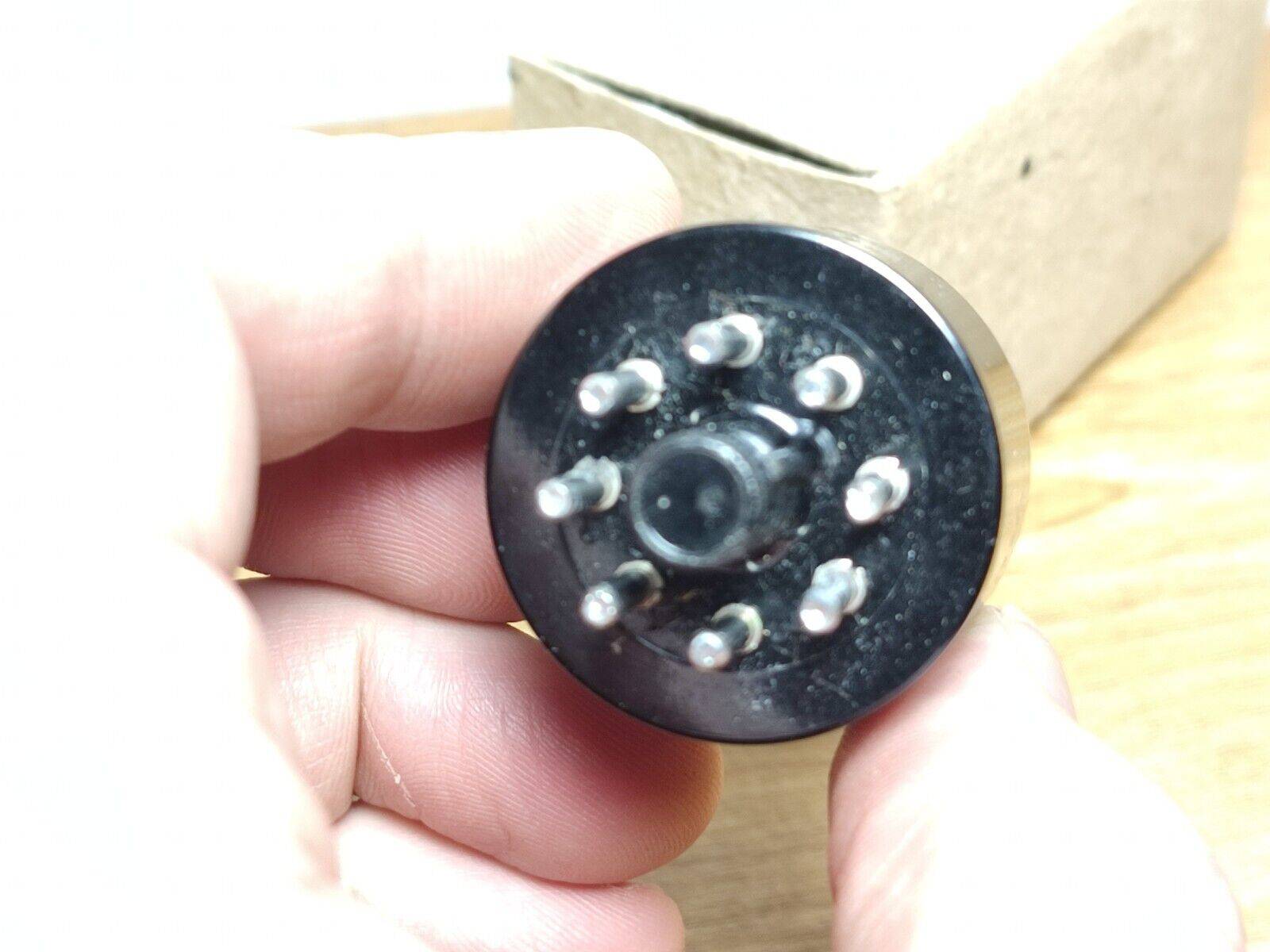

Pinout:
PIN 01 K0
PIN 02 NC
PIN 03 A
PIN 04 G1
PIN 05 NC
PIN 06 G2
PIN 07 NC
PIN 08 K1-9



------------------------------------------------------------------------------------------------------------------------------------------
