NEW 10 pcs. 6J3P 6Z3P (6Zh3P) PENTODES vintage TUBES USSR =(6BC5, 6AG5, EF96)

NEW 10 pcs. 6J3P 6Z3P (6Zh3P) PENTODES vintage TUBES USSR =(6BC5, 6AG5, EF96)

€6,67 EUR
€6,67 EUR
Sale Sold out
Shipping calculated at checkout.
NEW 10 pcs. 6J3P 6Z3P (6Zh3P) PENTODES vintage TUBES USSR =(6BC5, 6AG5, EF96)

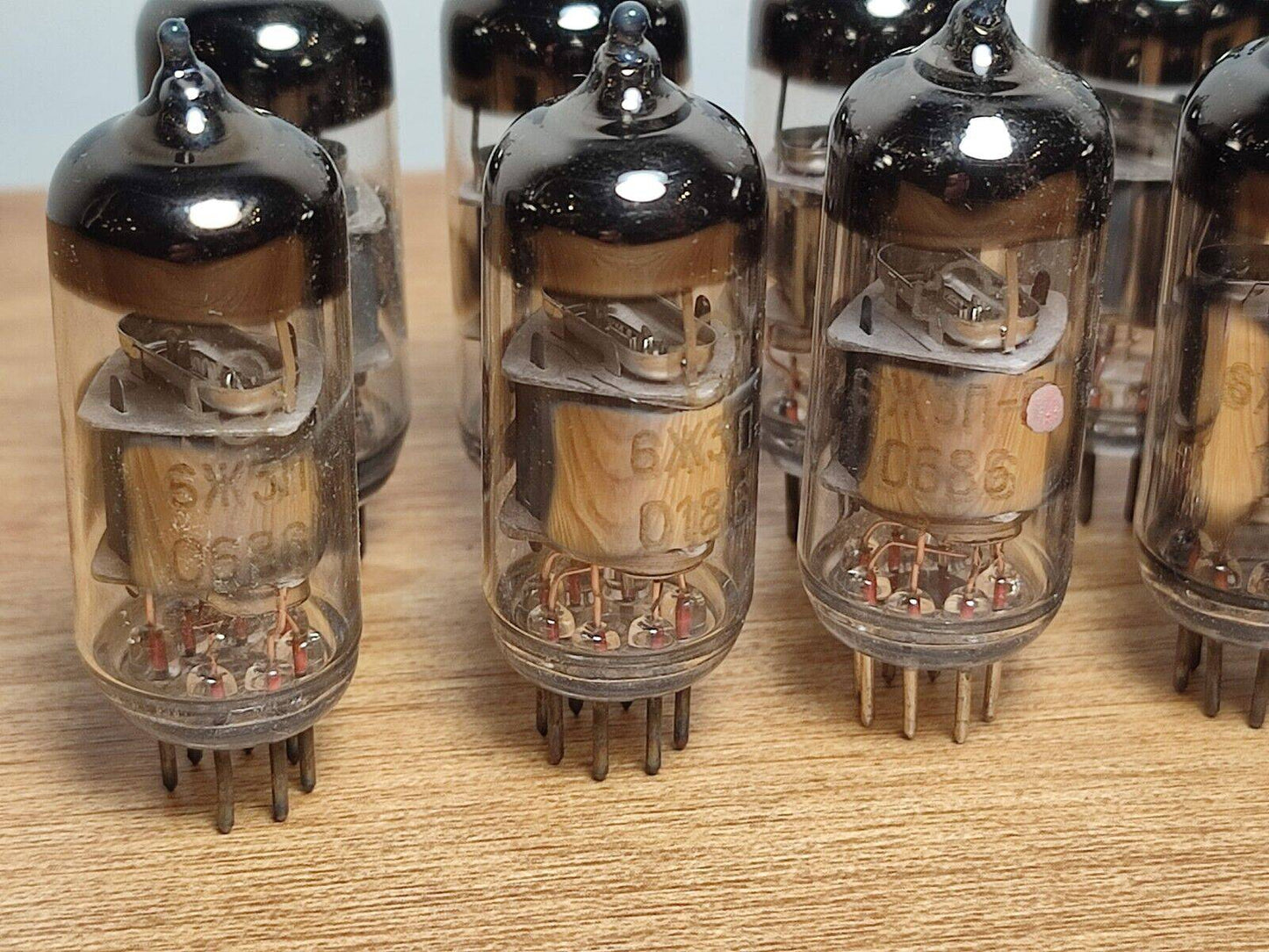

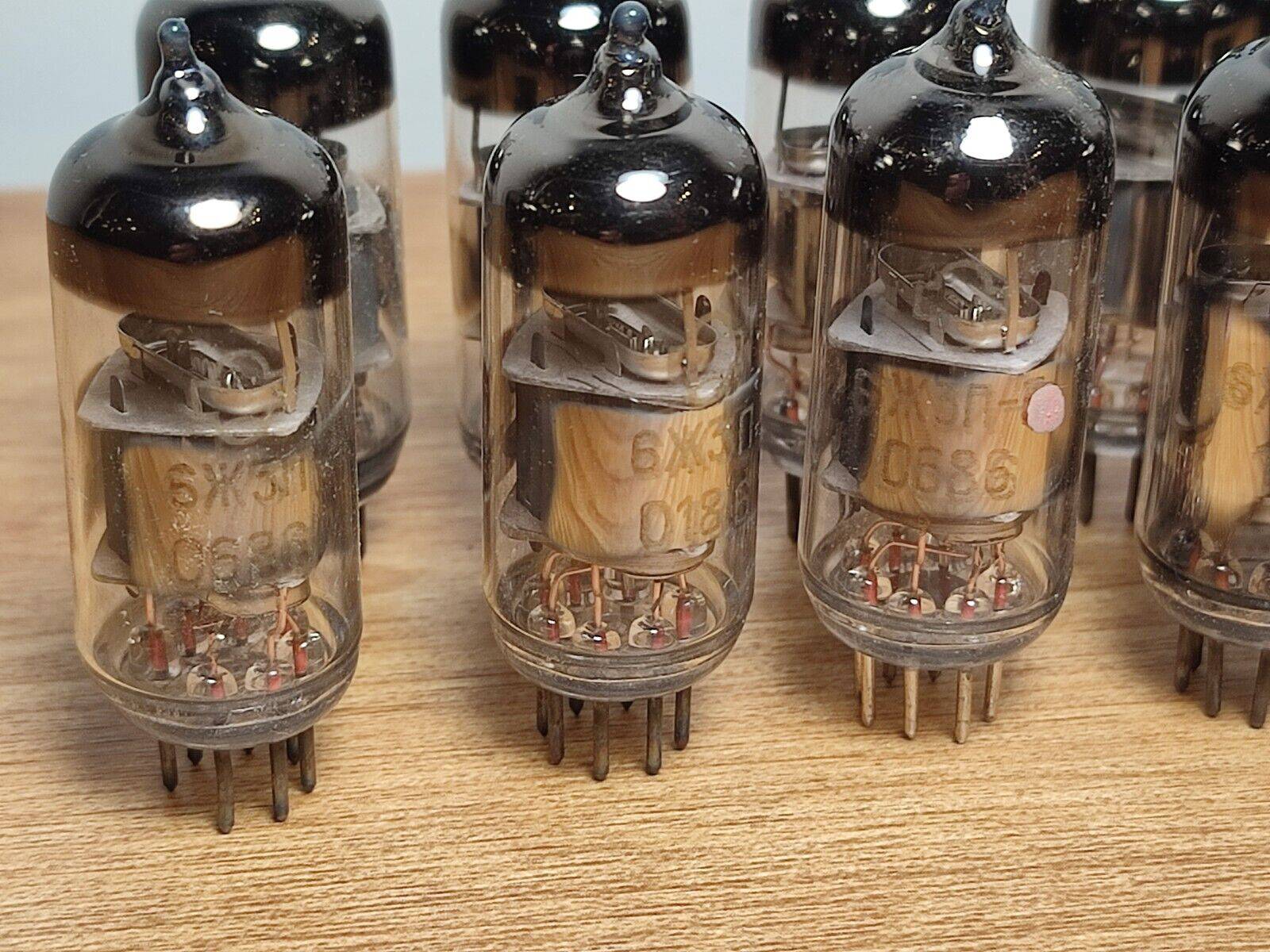

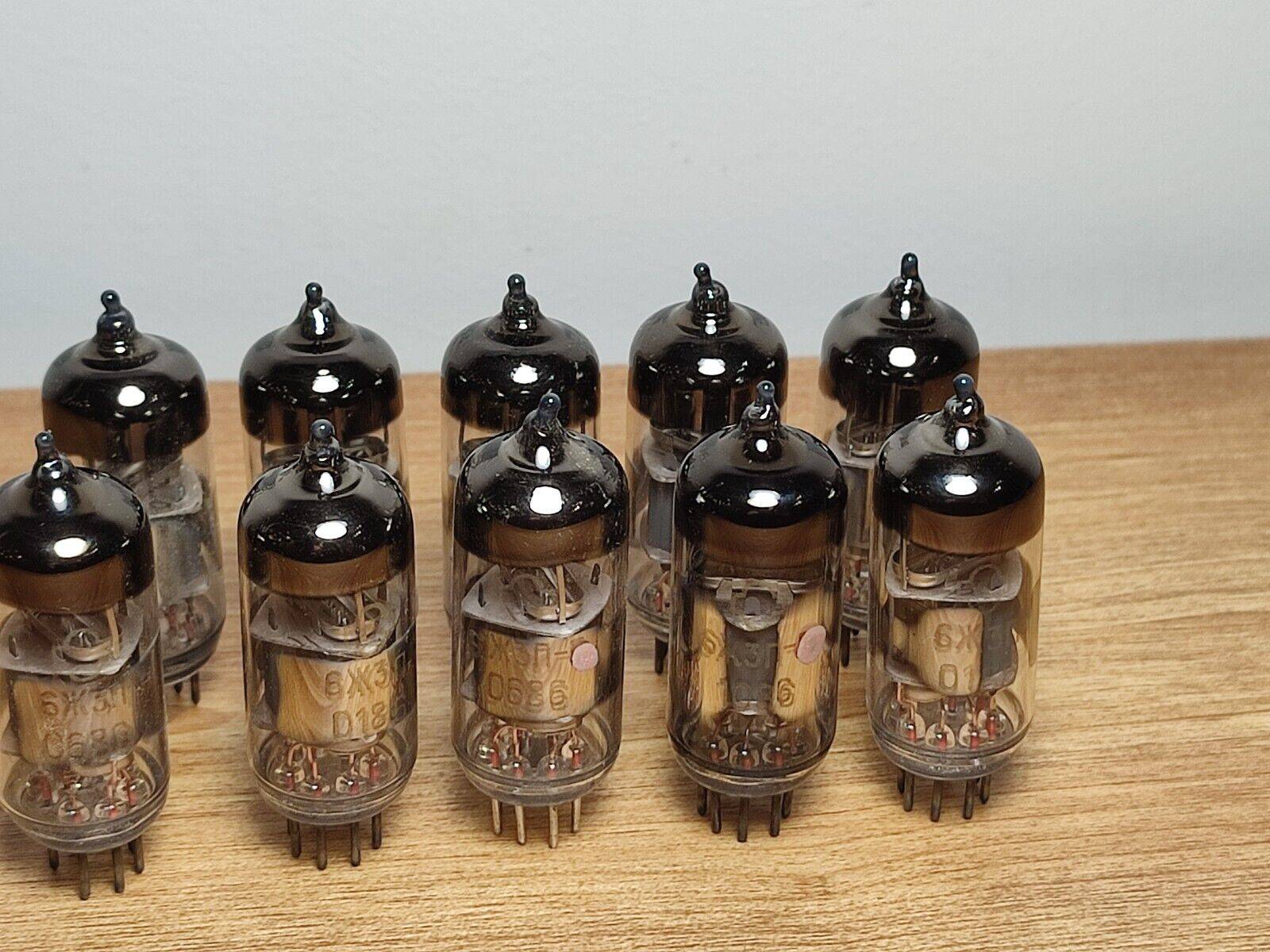

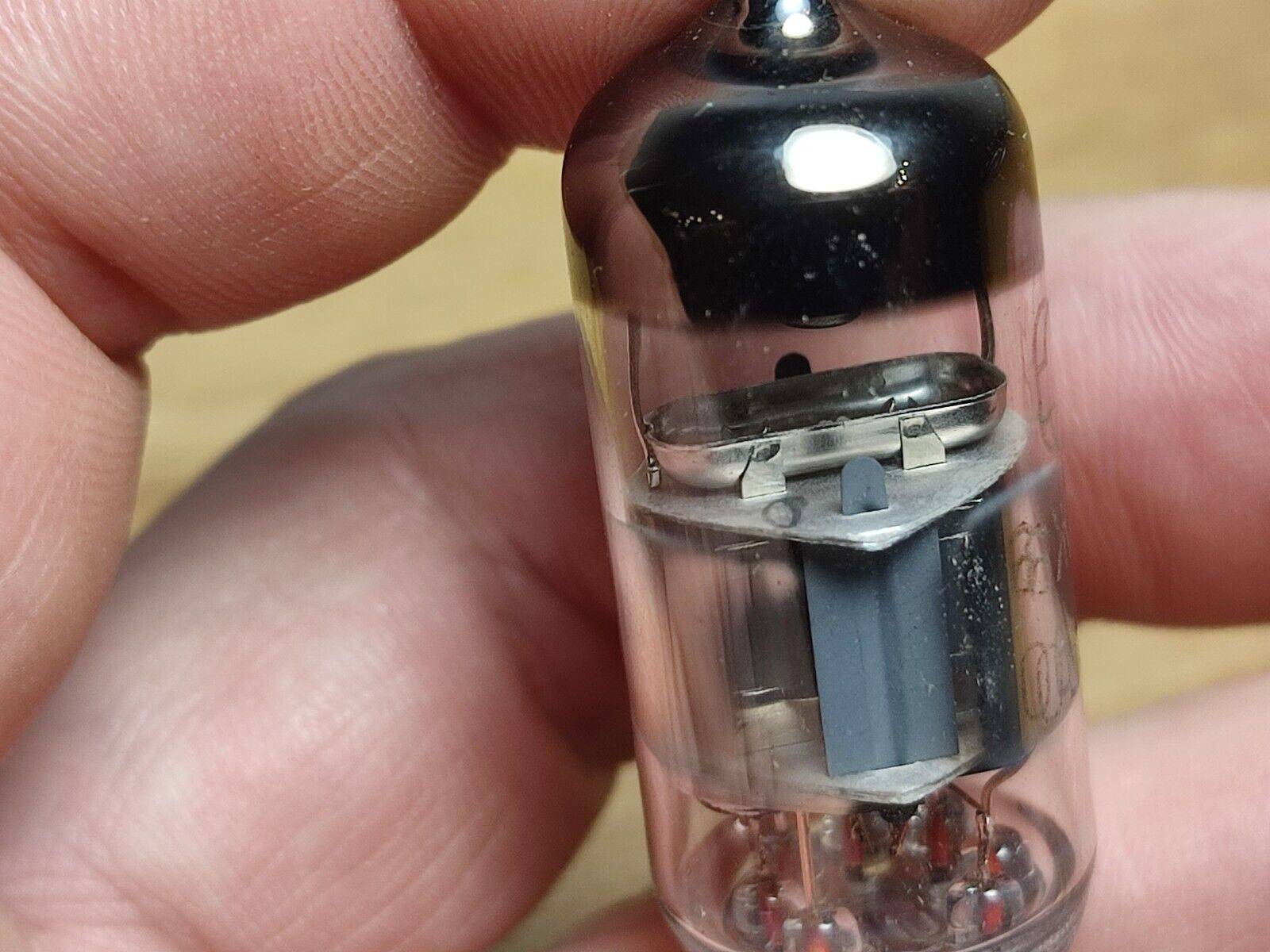

  • 6J3P Vintage USSR Pentode Tubes

    Lot of 10 pcs.

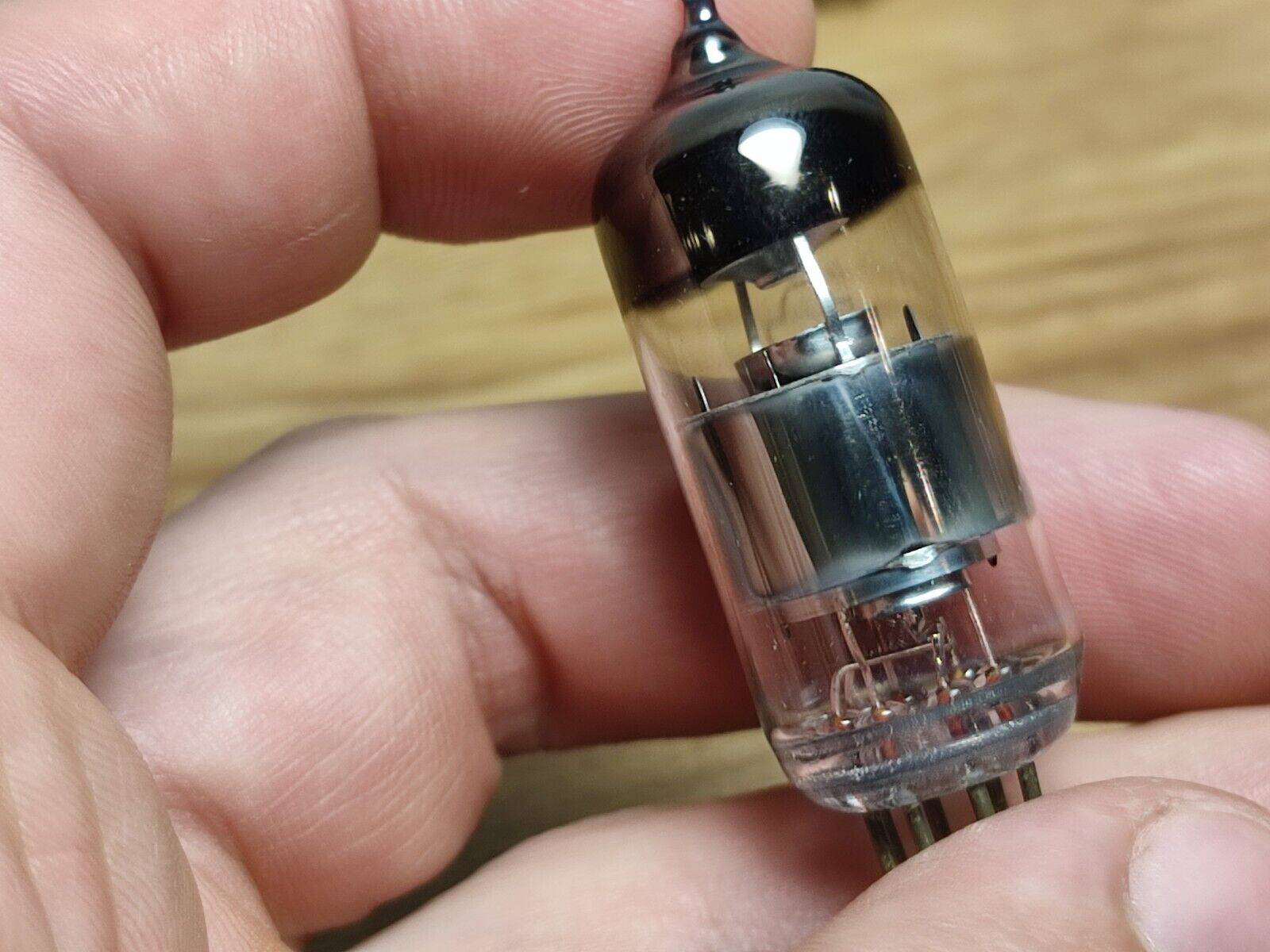

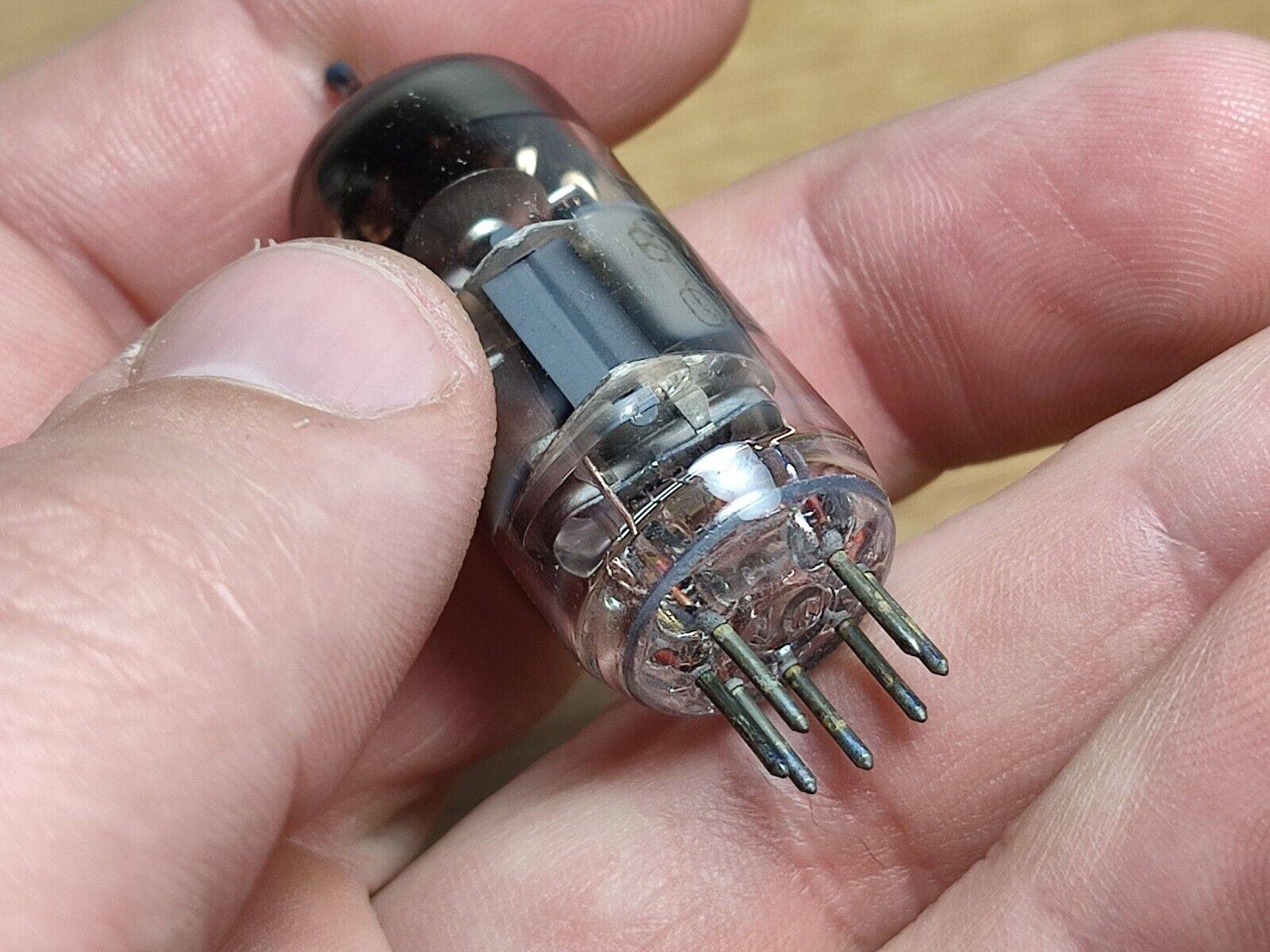

    Valve pins can be either shiny or gray.

    TECHNICAL DATA :

    Heater voltage 6.3 ± 0.6 V
    Incandescent current 300 ± 20 mA
    The nominal anode voltage (DC) 250 V
    Anode voltage limit MAX 330 V
    The anode current of 7.0 ± 1.8 mA
    The reverse current of the first grid is 1.0 µa
    Grid voltage second limit (MAX) 165 V
    Grid current second 2.0 ± 0.7 mA
    Power by the anode, maximum 2.5 W
    Power by the second grid, maximum 0.55 W
    Voltage between the cathode and the heater limit (MAX) 100 V
    S= 5.0 ± 1.0 mA / V
    The cut-off voltage of the electronic current of the first grid is not more than -1.3 V
    Internal resistance 0.8 MOhm
    Resistance in the cathode circuit for autobias 200 Ohms
    The resistance in the chain of the first grid is the limit of 0.5 MOhm
    Input capacity 6.5 ± 1.3 pF
    Output capacity 3.05 ± 0.55 pF
---------------------------------------------------------------------------------------------------------------------------------------------------

Import duties, taxes and chargers are not included in the item price or shipping charges. These charges are the buyer's responsibility.
Please check with your country's customs office to determine what these additional costs will be prior to bidding buying.

Combine shipping is accepted.
If you need less or more items of this type, or if you need add some other items, contact us, and we will make special listing for you.
Give us the list of items you need, and we'll do the rest.

We have many other vacuum tubes for audio and other, ask us if you need any of them.

Items are shipped from Lithuania Post (Europe Union) via expedited International tracking.
