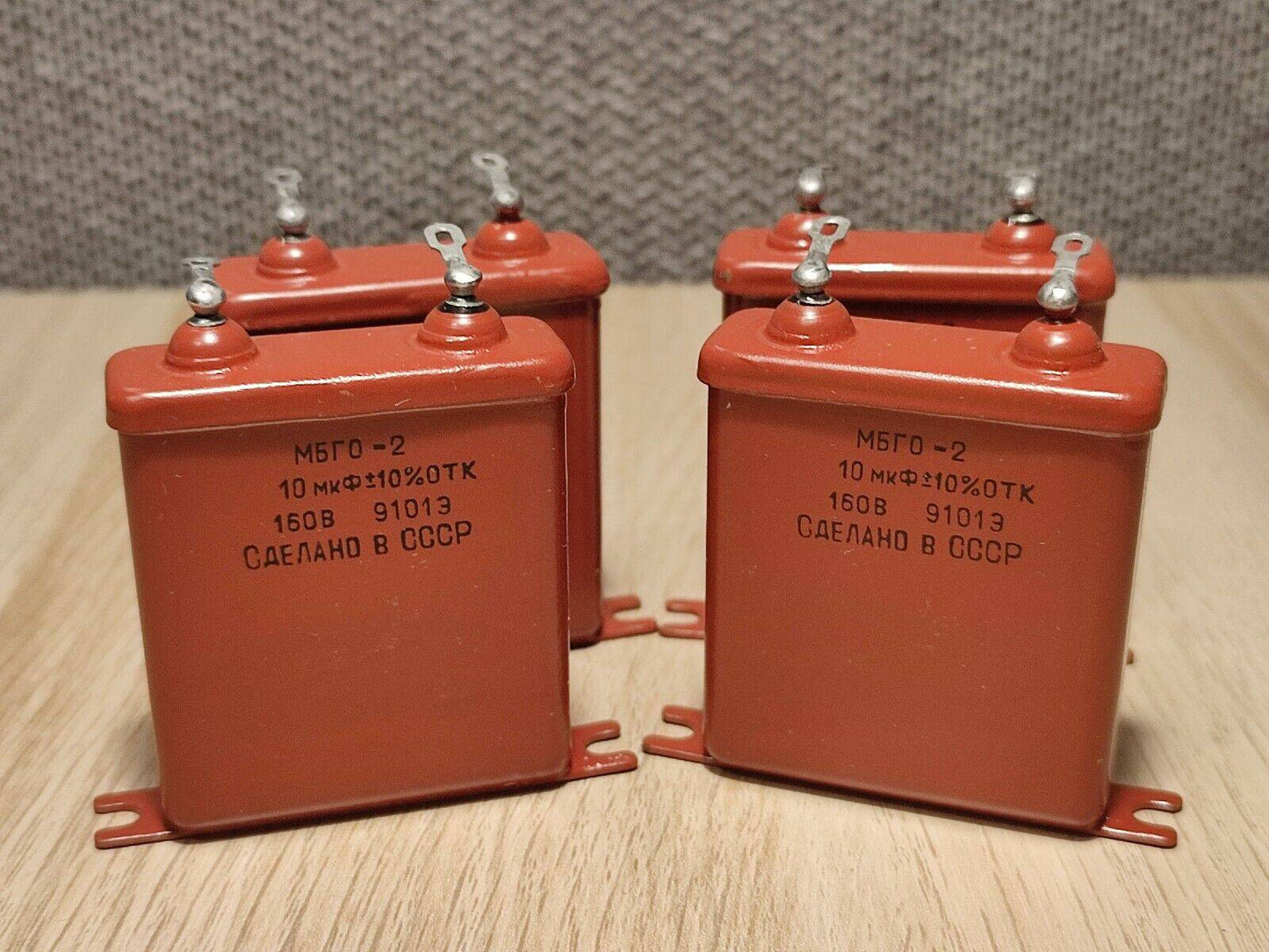

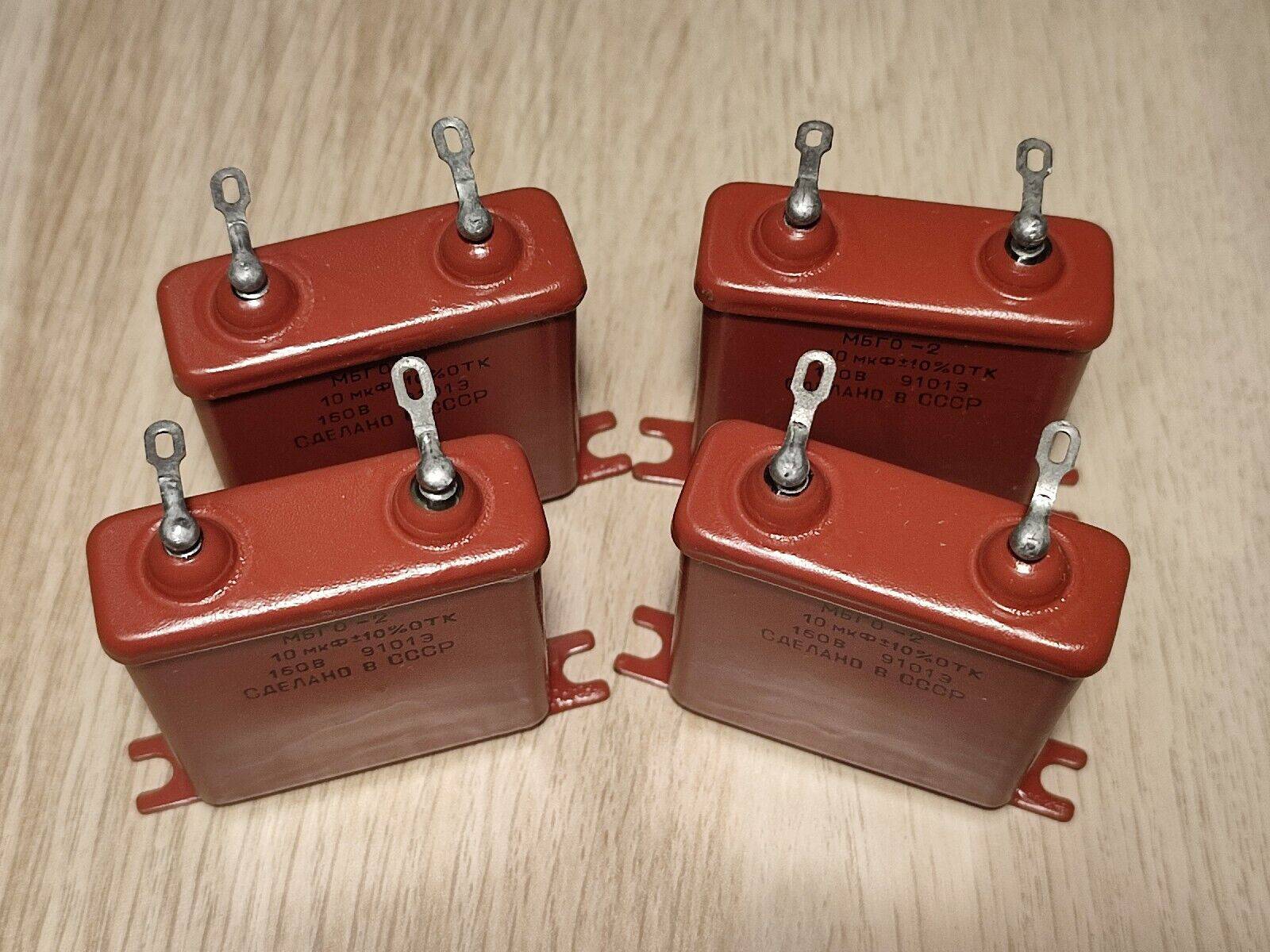

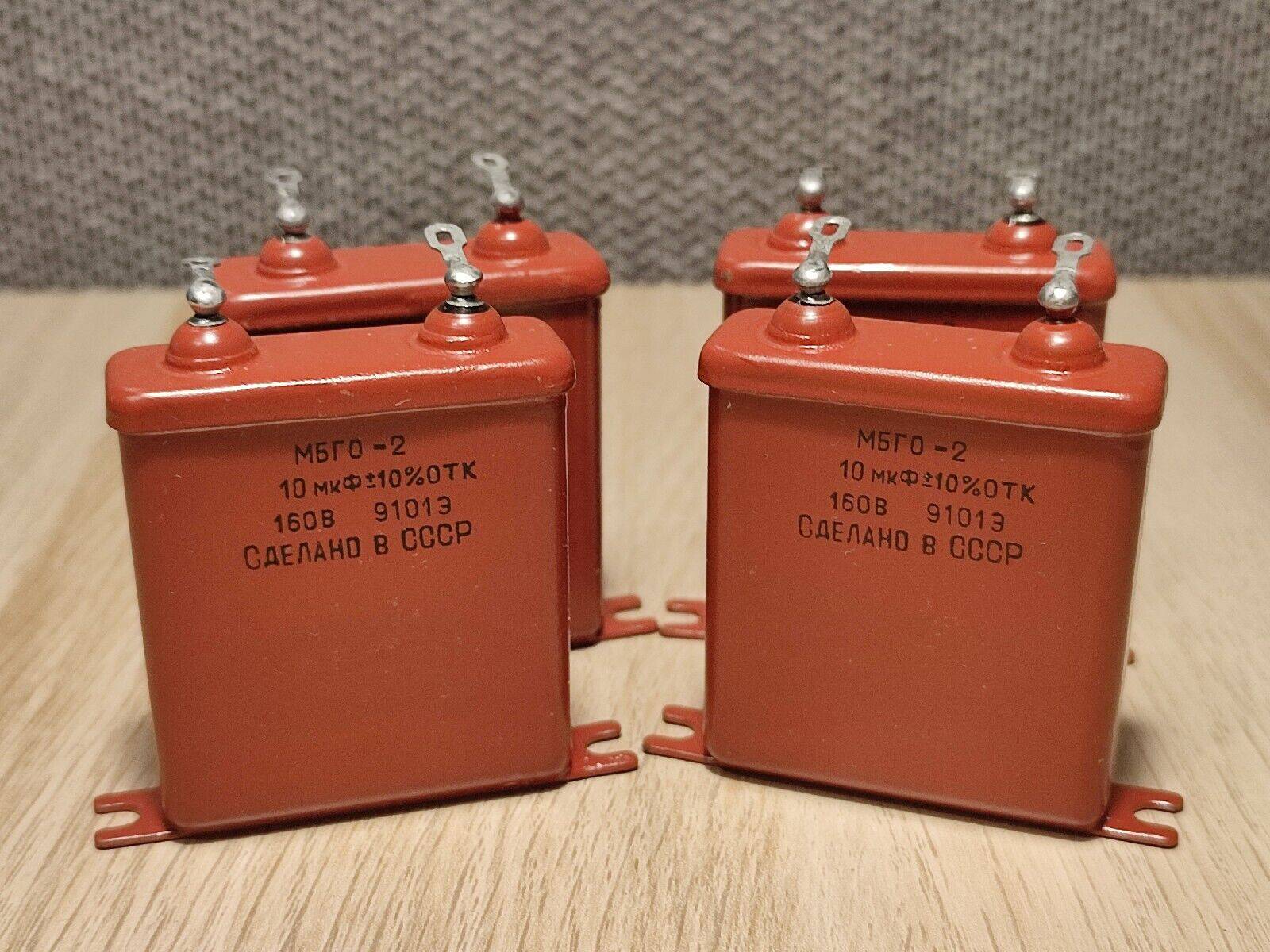

Lot of 4 pcs ( Same Batch) MBGO-2 10uF 160V Russian PIO Capacitors New
Lot of 4 pcs ( Same Batch) MBGO-2 10uF 160V Russian PIO Capacitors New
Regular price
€9,99 EUR
Regular price
Sale price
€9,99 EUR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

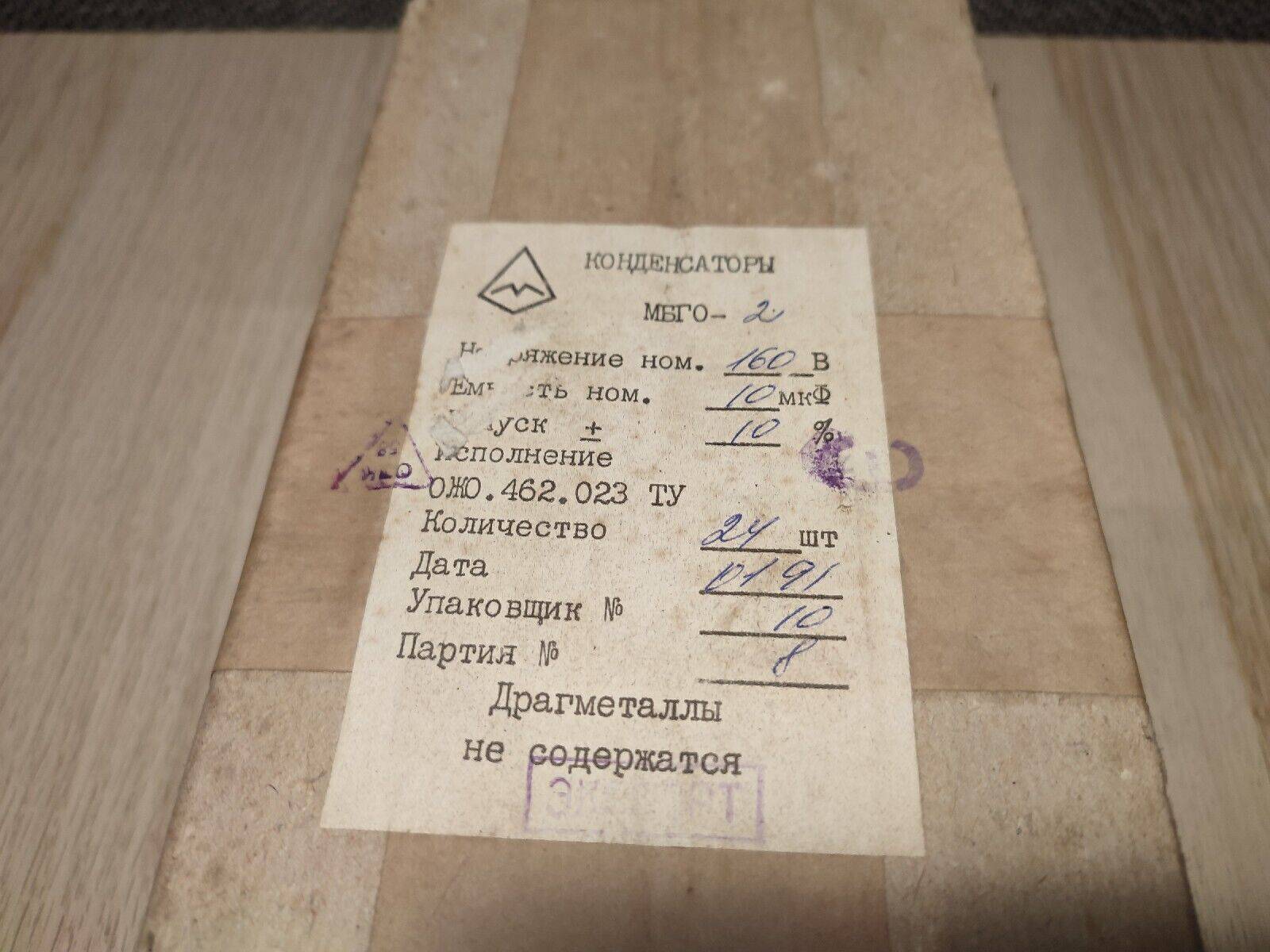

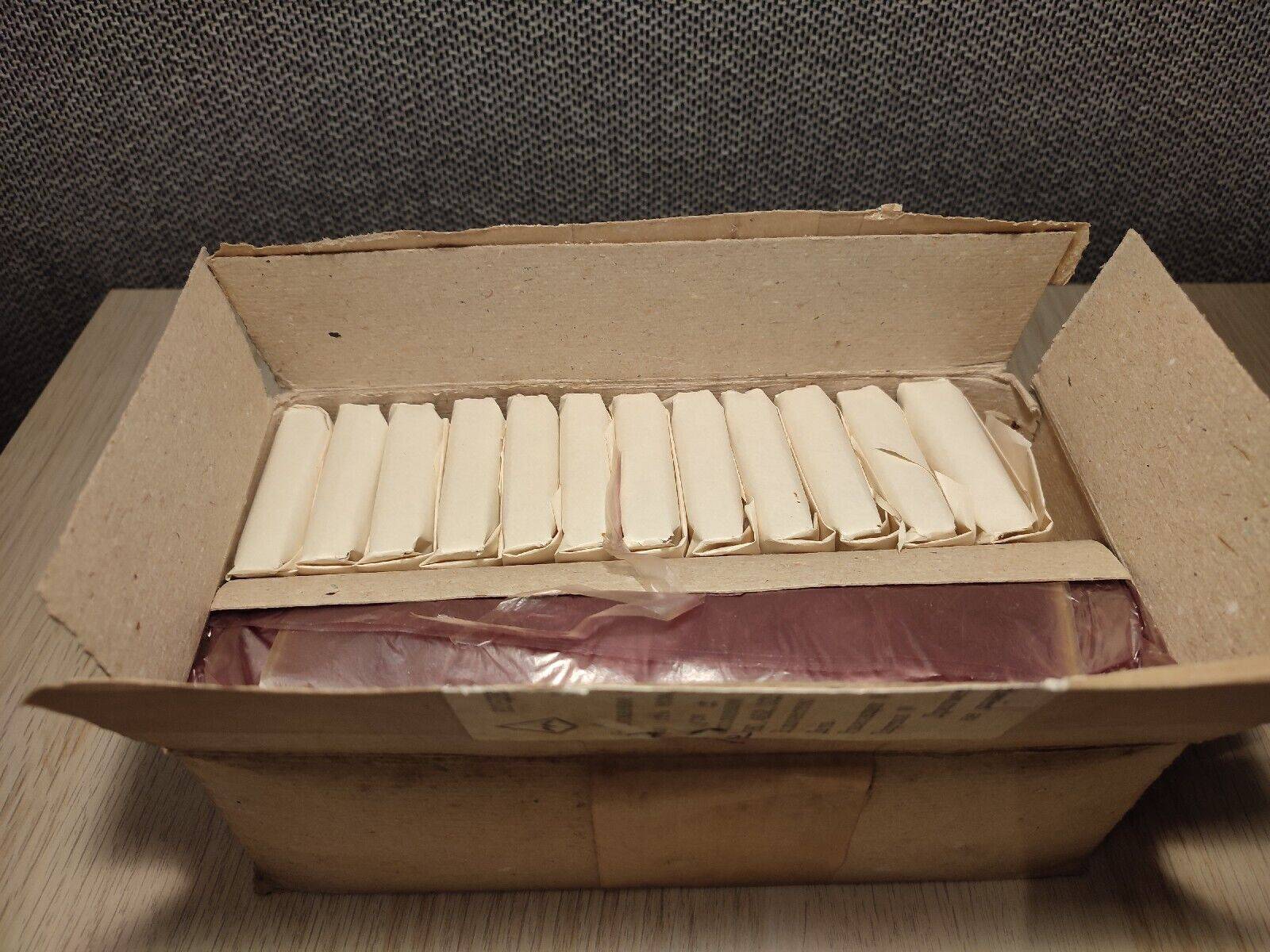

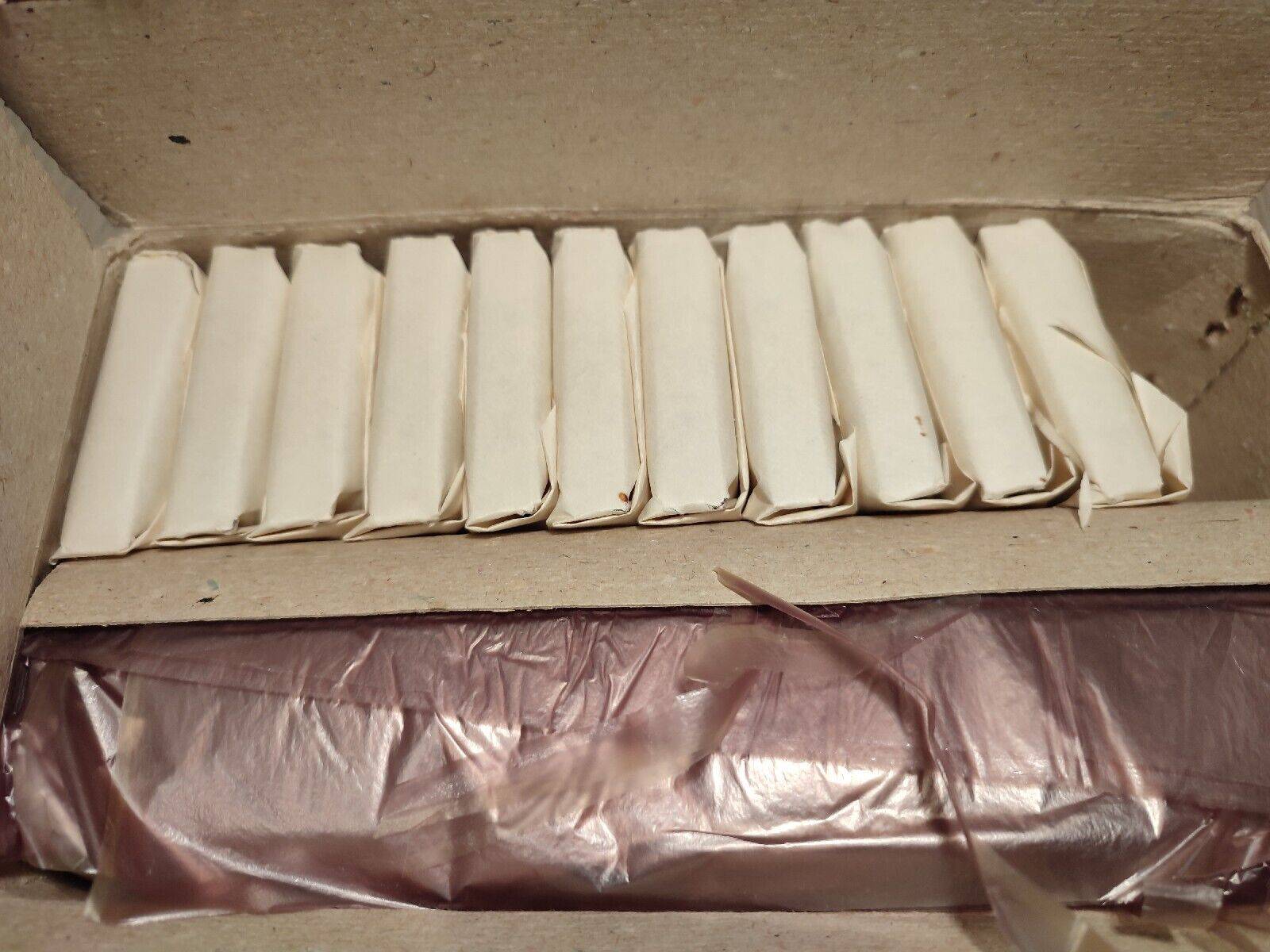

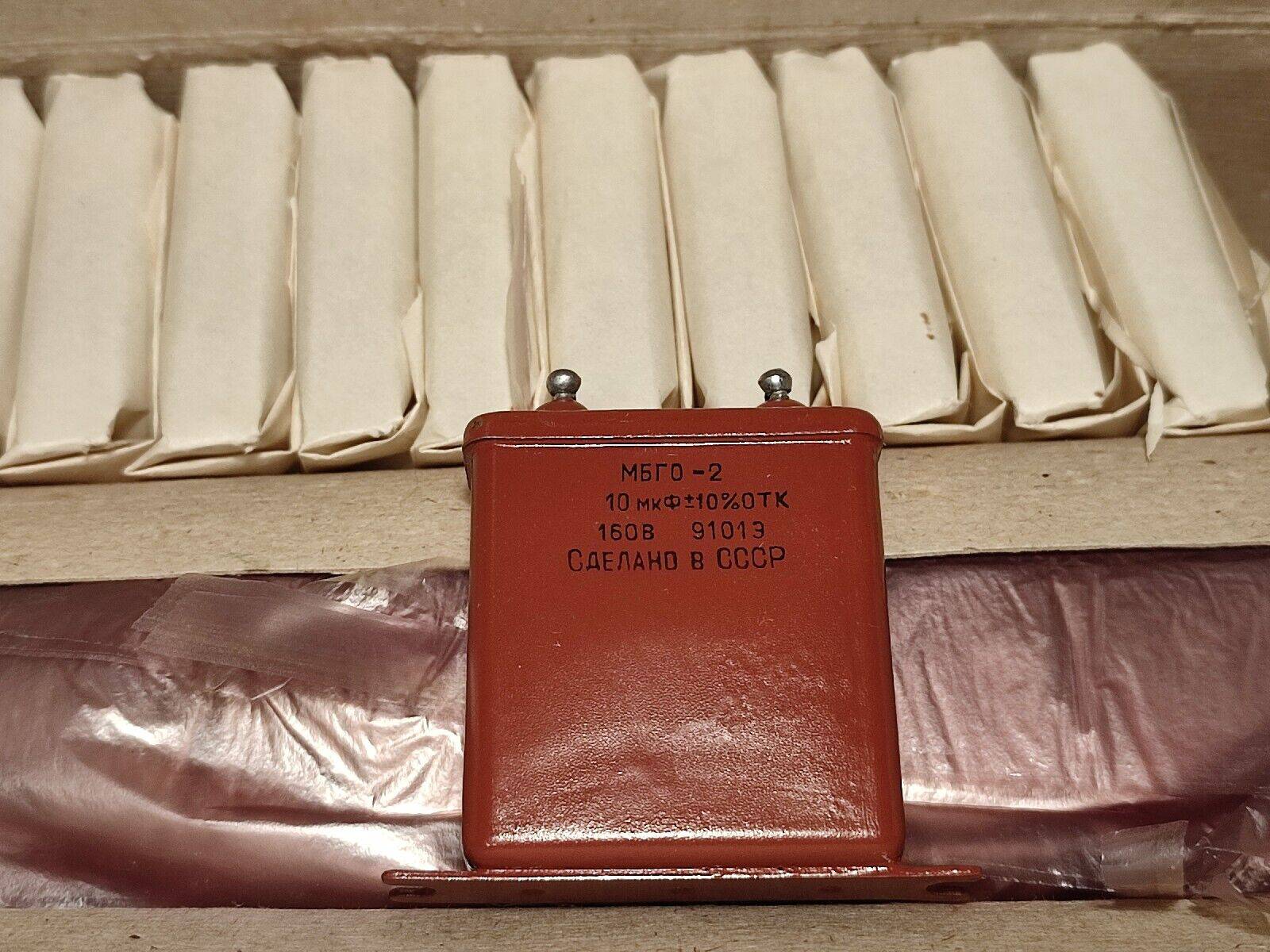

Lot of 4 pcs ( Full Box) MBGO-2 10uF 160V Russian PIO Capacitors New/ NOS
MBGO-2
10uF 160V 10%
Qty 4
Russian
PIO Caps
NOS
Dimensions:
H
59 /
L
45(60) /
W
15
mm
▼ The main technical parameters MBGO:
The advantages of MBGO capacitors are that they have good performance capacitance and nominal voltage with small sizes, long service life and the ability to recover after a breakdown - when a short circuit occurs at certain points in the winding, the short circuit current melts and partially evaporates the thin metal in the breakdown zone as a result which layers of the winding become isolated from each other.
The disadvantage of capacitors is low insulation resistance, and accordingly a high leakage current. It is undesirable to use these capacitors with a nominal voltage close to the circuit voltage.
Main characteristics of capacitors MBGO-1 /MBGO-2:
- Nominal capacity: 0,25 ... 30 uF
- Nominal voltage: 160V ... 630V;
- Tolerances capacity: ± 10, ± 20%
- Dissipation factor:
(
tgδ
) Not more than 0.025
- Operating temperature range:
-60
...
+60 ° C
- Minimum working hours: 20 000 h
Precious metal content silver 0.02 g
Weight - 64g /pc
Combine shipping is accepted.
If you need less or more items of this type, or if you need add some other items, contact us, and we will make special listing for you.
Give us the list of items you need, and we'll do the rest.
We have many other vacuum tubes for audio and other, ask us if you need any of them.
Items are shipped from EU- Lithuania Post via expedited International tracking.
