(8-30) pF LOT OF 2 RUSSIAN VARIABLE CERAMIC PRECISION PISTON TRIMMER CAPACITORS

(8-30) pF LOT OF 2 RUSSIAN VARIABLE CERAMIC PRECISION PISTON TRIMMER CAPACITORS

€6,67 EUR
€6,67 EUR
Sale Sold out
Shipping calculated at checkout.
(8-30) pF LOT OF 2 RUSSIAN VARIABLE CERAMIC PRECISION PISTON TRIMMER CAPACITORS

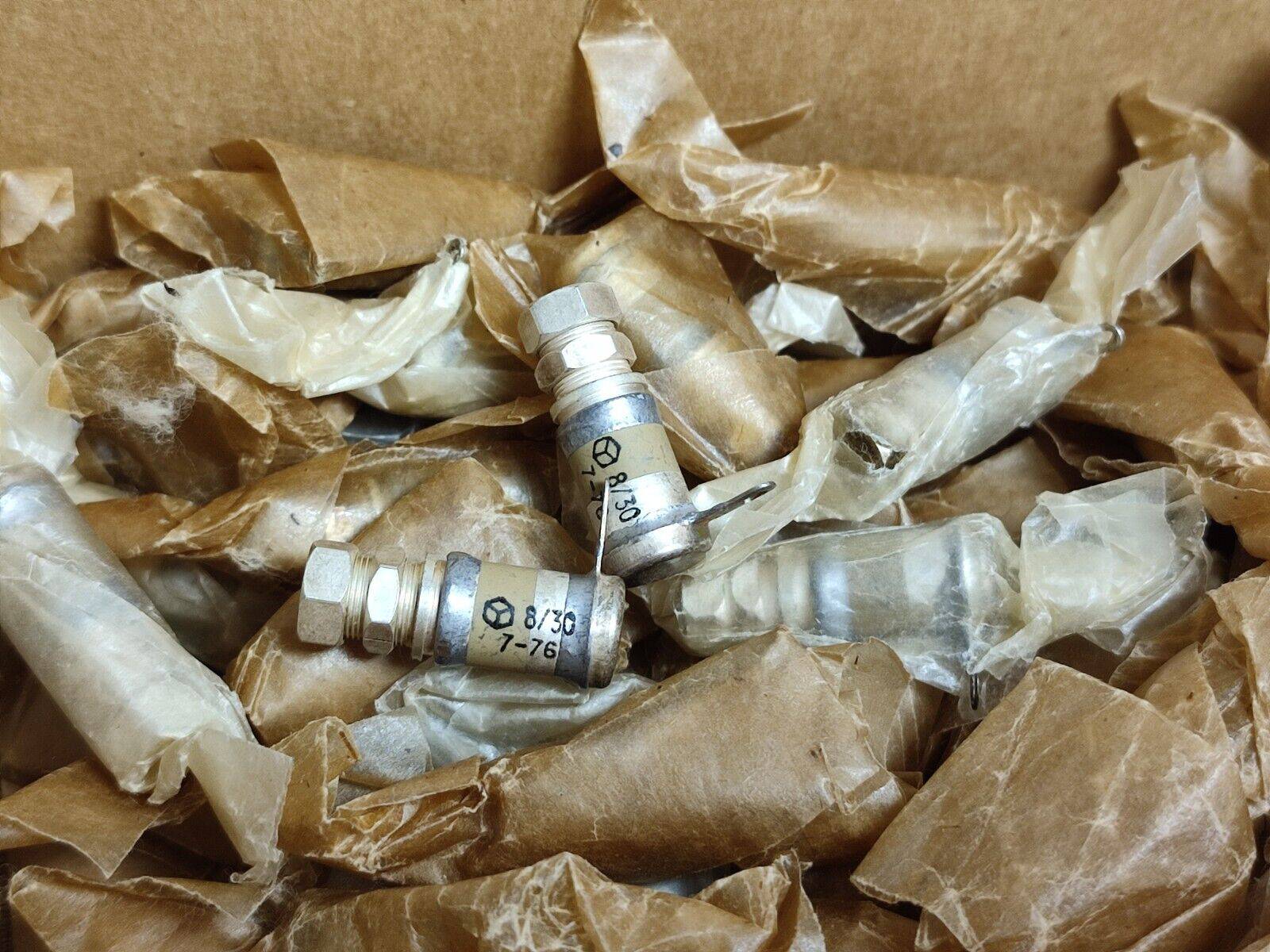

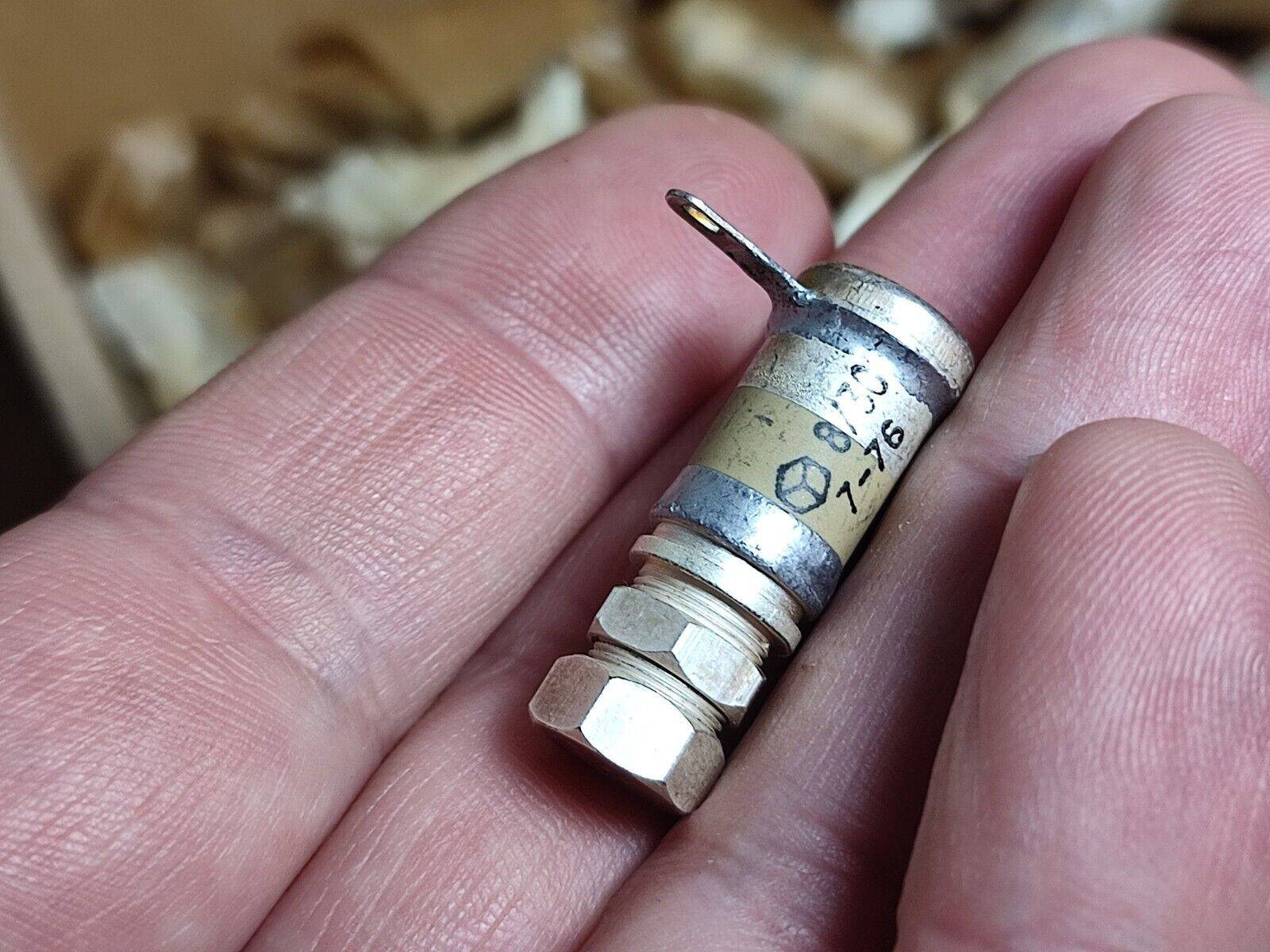

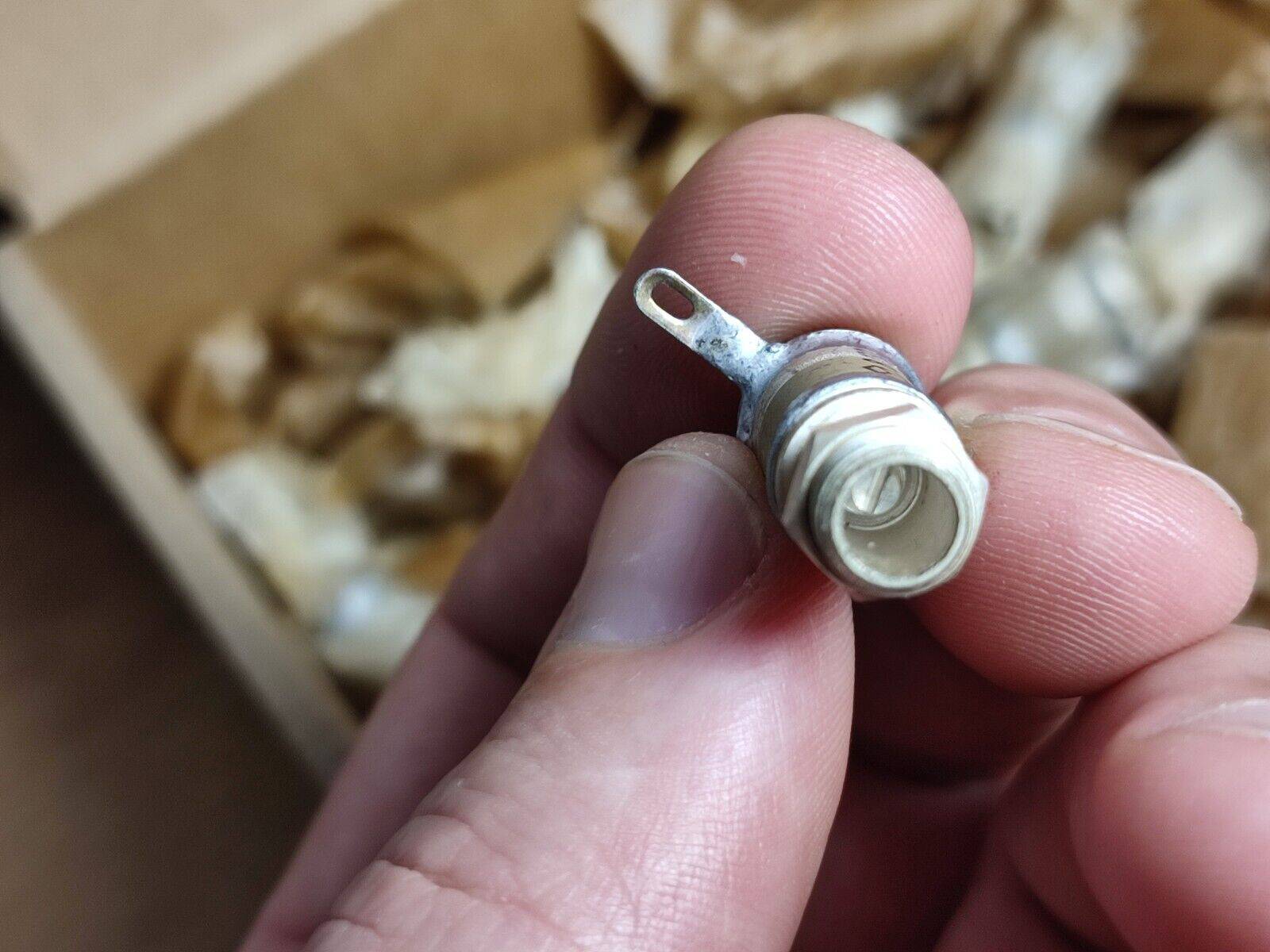

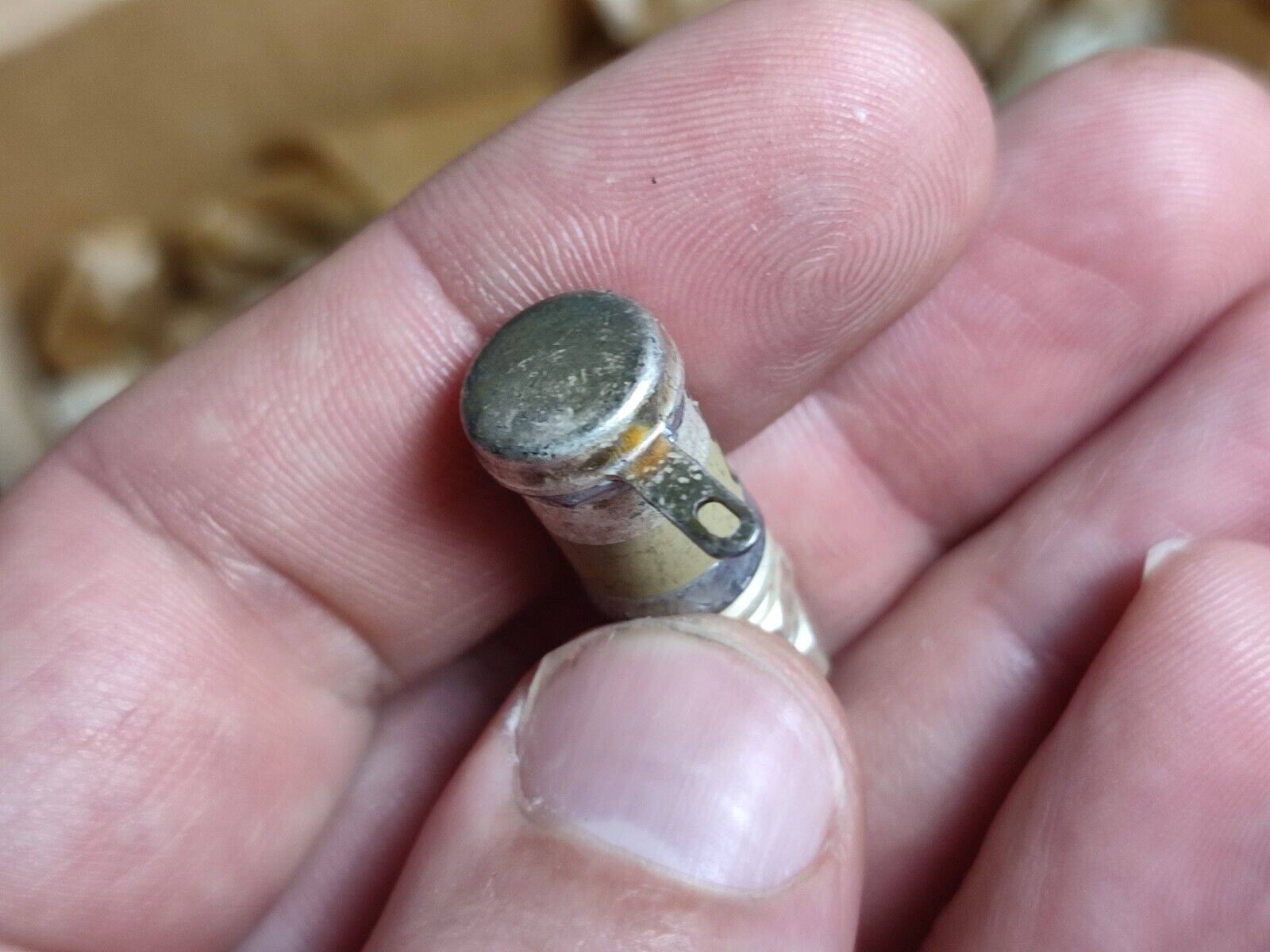

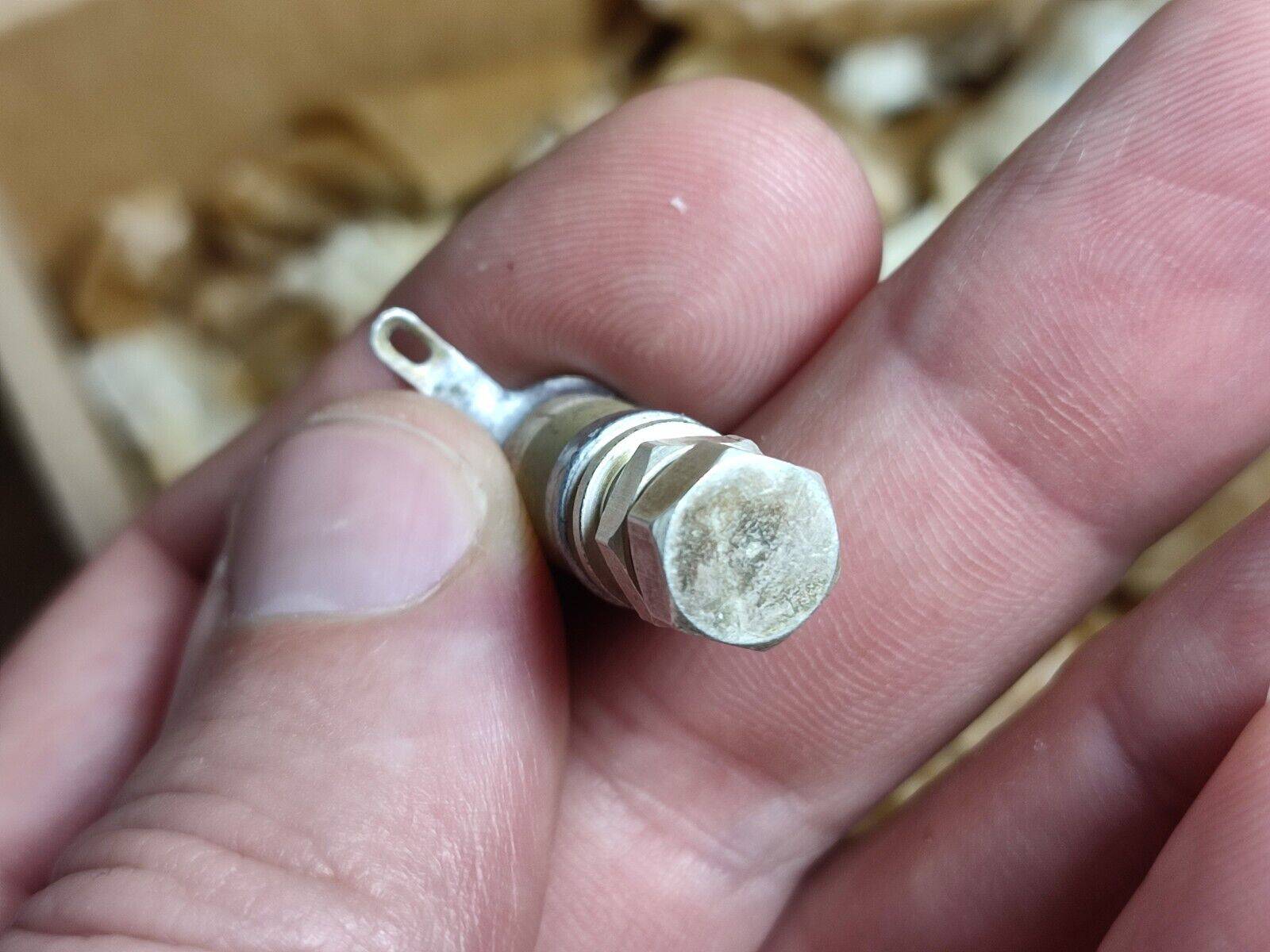

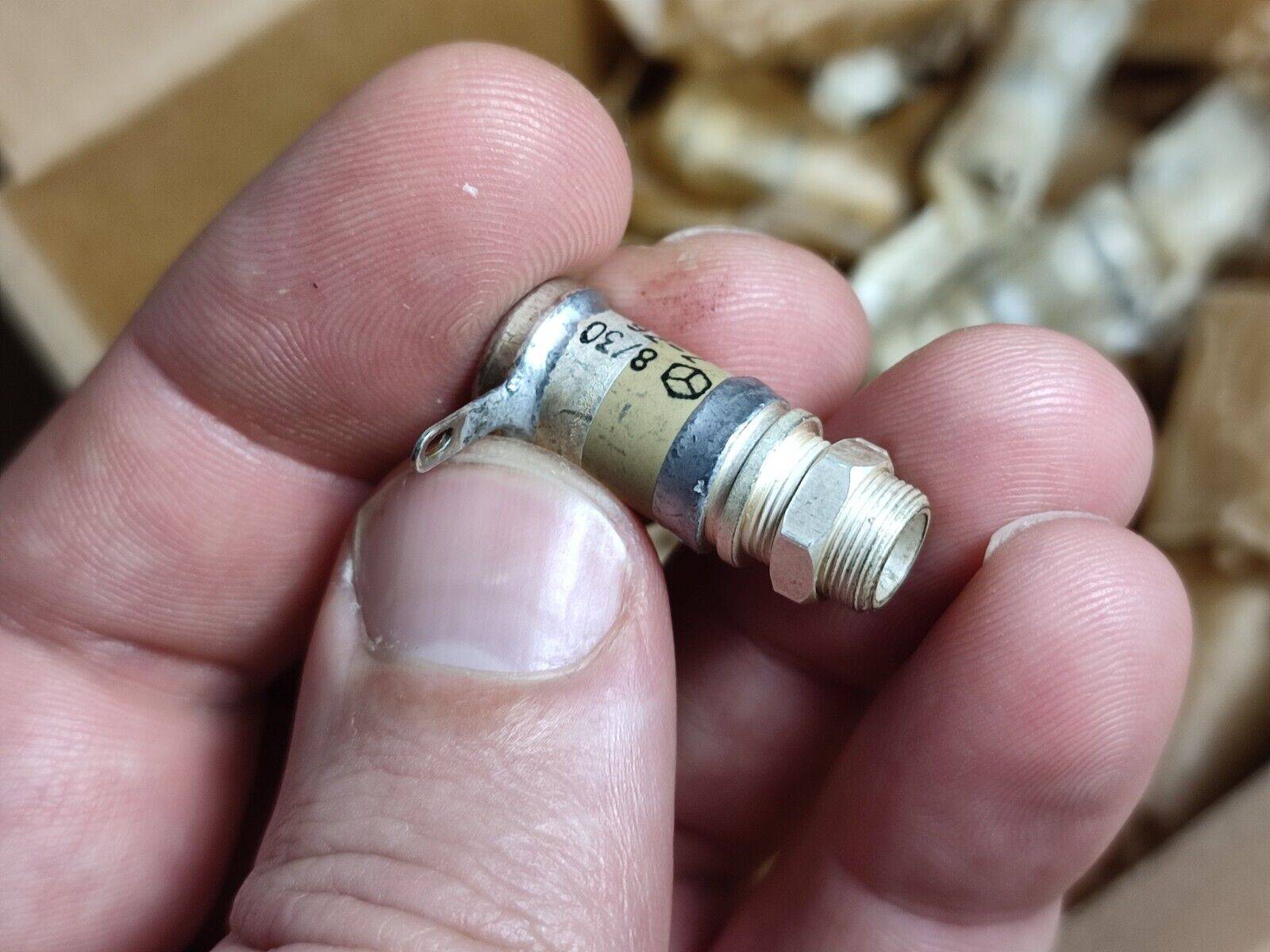

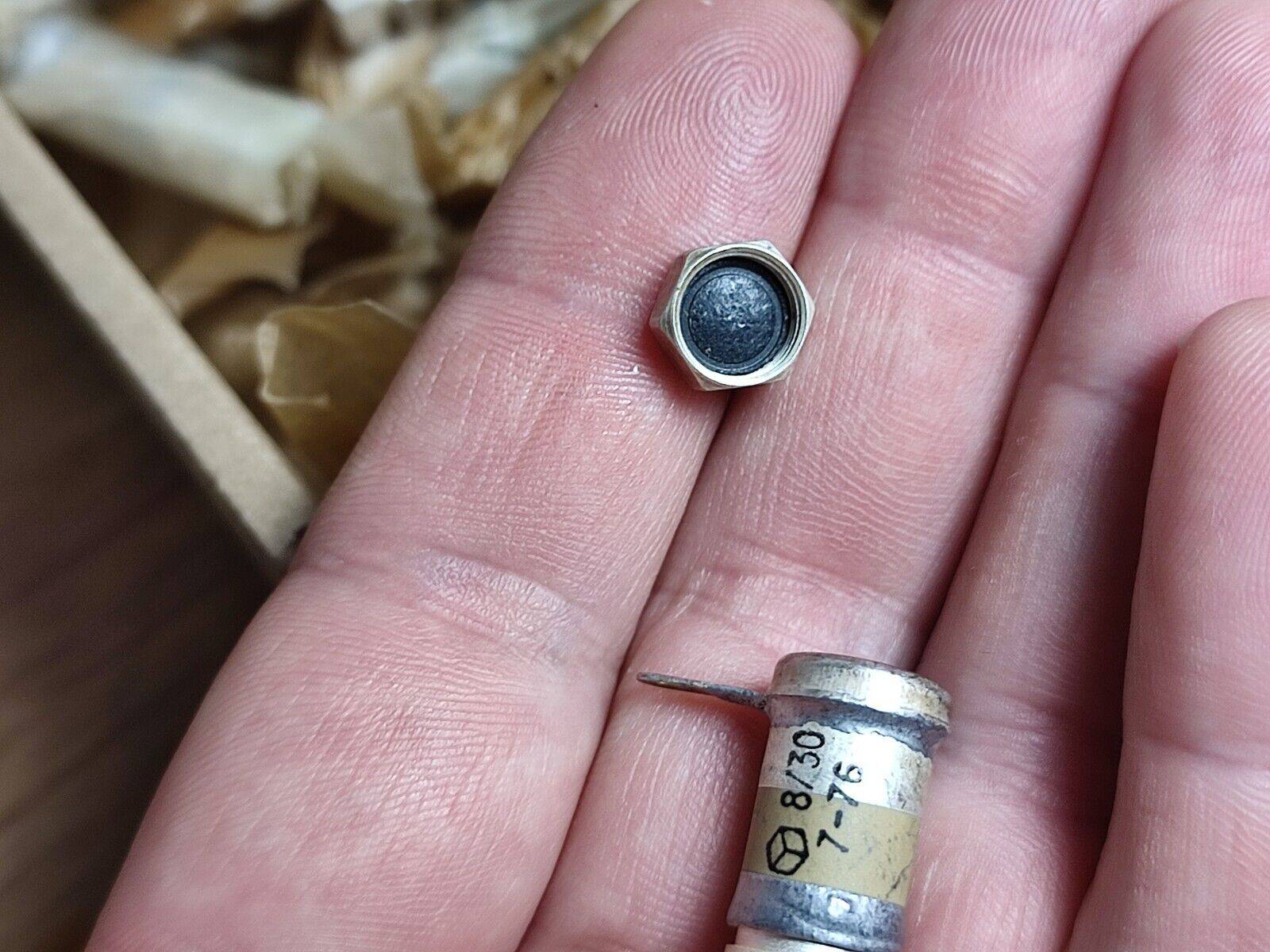

About Item: Precision, variable, air, ceramic, piston, capacitor, (8-30) pF, NOS, with dust caps.

PARAMETERS:

Working Voltage                                            500 V.

Operating Temperature range                       (-60 - 100) oC

Atmospheric pressure  of 5 to 780 mm Hg. of Art.

Vibratory loads with acceleration

in the frequency range 1-2000 Hz up to          10 g.

Multiple shocks with acceleration up to            75 g.

Linear loads with acceleration up to                 50 g.

Dissipation                                                        < 0.003.

Insulation resistance of                                     > 1 000 MOhms.

Minimum operating time                                   > 5 000 h.

Silver plated body. Military equipment. Special Quality.

D = 10 mm.

L = 30 mm.

APPLICATIONS:
- RF amplifiers and oscillators;
- Impedance matching;
- Crystal trimming;
- Filter tuning;
- Interstage coupling;
- Space applications.
------------------------------------------------------------------------

Combine shipping is accepted.
If you need less or more items of this type, or if you need add some other items, contact us, and we will make special listing for you.
Give us the list of items you need, and we'll do the rest.

We have many other vacuum tubes for audio and other, ask us if you need any of them.

Items are shipped from Lithuania Post (Europe Union) via expedited International tracking.
