10PCS. IN-3 nixie cube dot clock indicator neon light bulbs, tubes NOS

10PCS. IN-3 nixie cube dot clock indicator neon light bulbs, tubes NOS

€6,67 EUR
€6,67 EUR
Sale Sold out
Shipping calculated at checkout.

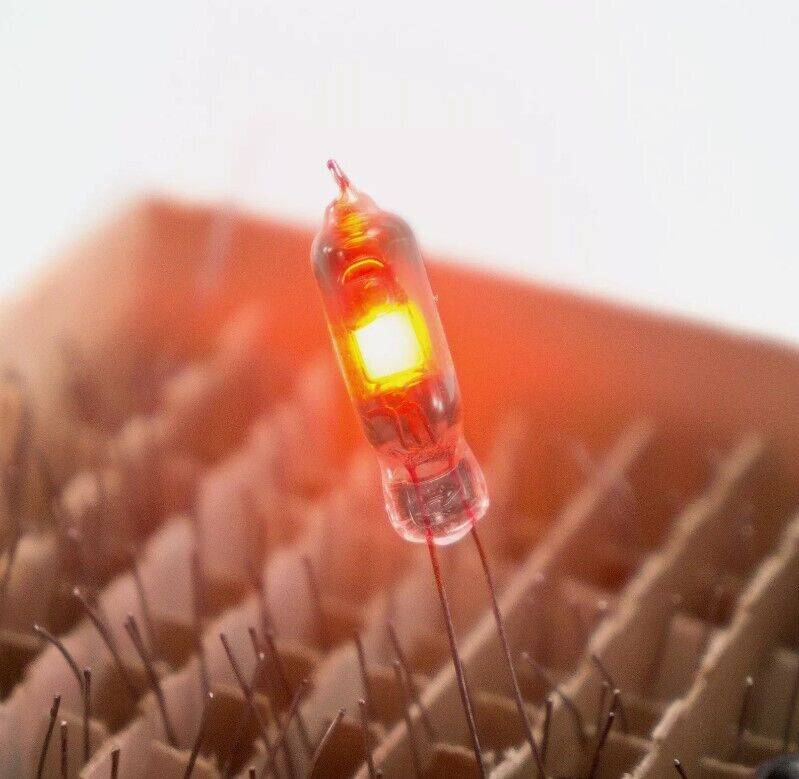

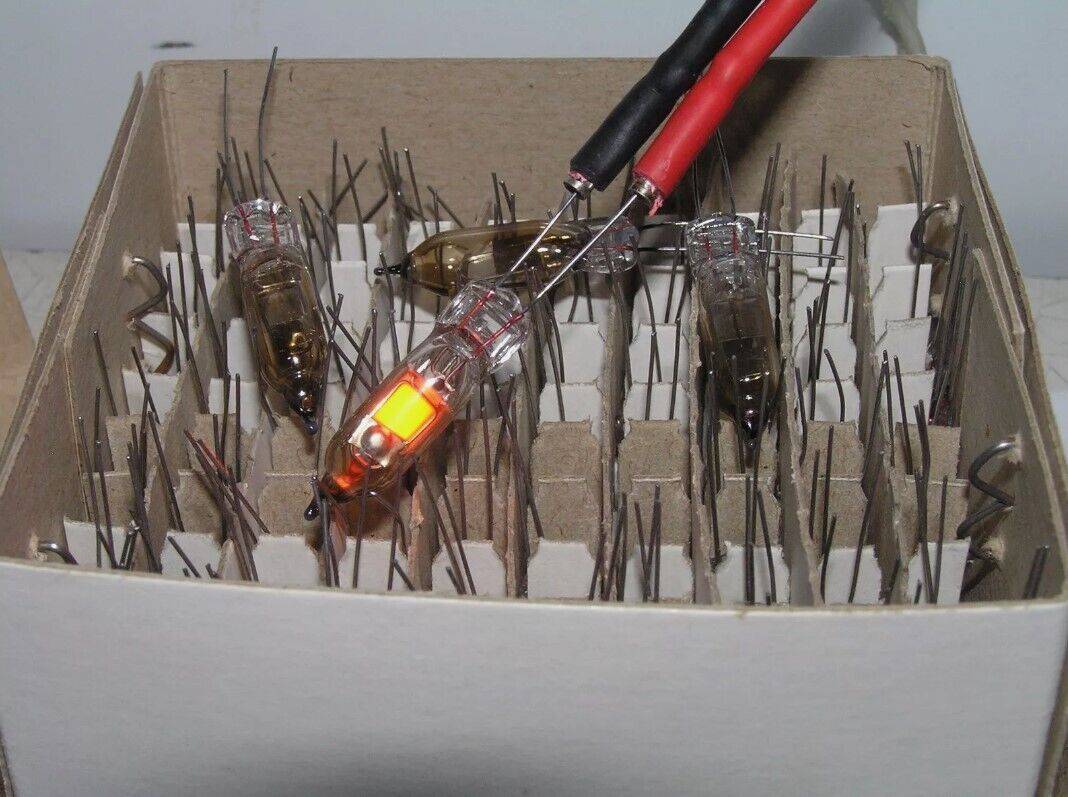

10PCS.  IN-3 nixie cube dot clock indicator neon light bulbs, tubes NOS

The lamp is designed for use on a circuit indicating radio devices and other wireless devices widely used. Often used to create nixies hours as a separator.


Main technical data


The ignition voltage - 60-90

The voltage damping resistance with 300 kOhm - not less than 55 V

Rated Current - 0.8 mA

The warranty period of life - not less than 5000 hours at a voltage not exceeding 95 V

Dimensions:

Height without pins - not less than 27 mm

The length of leads - at least 35 mm

The diameter of the bulb - no more than 6.8 mm

The width of the spatula - not more than 7.2 mm

Weight - not more than 1.5 g


Maximum allowable parameters


The ignition voltage 60-95

The voltage suppression 50-80

Average anode current of 0.2-1.0 mA

Temperature to + 85C -65S

----------------------------------------------------------------------------------------------------------------------------

Import duties, taxes and chargers are not included in the item price or shipping charges. These charges are the buyer's responsibility.
Please check with your country's customs office to determine what these additional costs will be prior to bidding buying.

Combine shipping is accepted.
If you need less or more items of this type, or if you need add some other items, contact us, and we will make special listing for you.
Give us the list of items you need, and we'll do the rest.

We have many other vacuum tubes for audio and other, ask us if you need any of them.

Items are shipped from Lithuania Post (Europe Union) via expedited International tracking.
