10 pcs lot of KD205A [КД205А] Diode Bridges USSR Soviet New NOS

lot 10 pcs

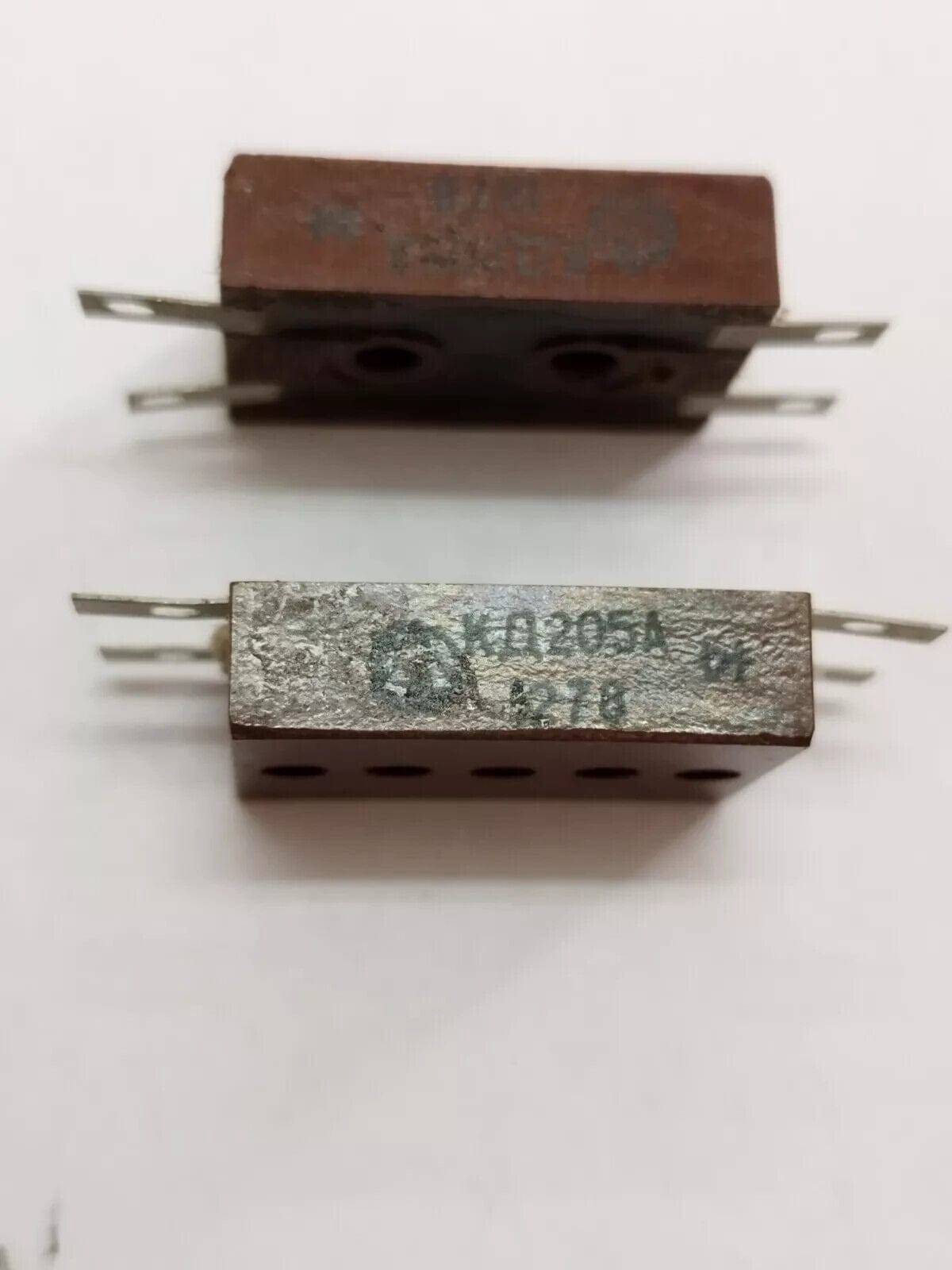

KD205A (rus. КД205А)
Diode assemblies KD205A, each consisting of two silicon diffusion diodes with separate terminals.
Designed to convert alternating voltage with a frequency of up to 5 kHz in power supply units of radio-electronic equipment.

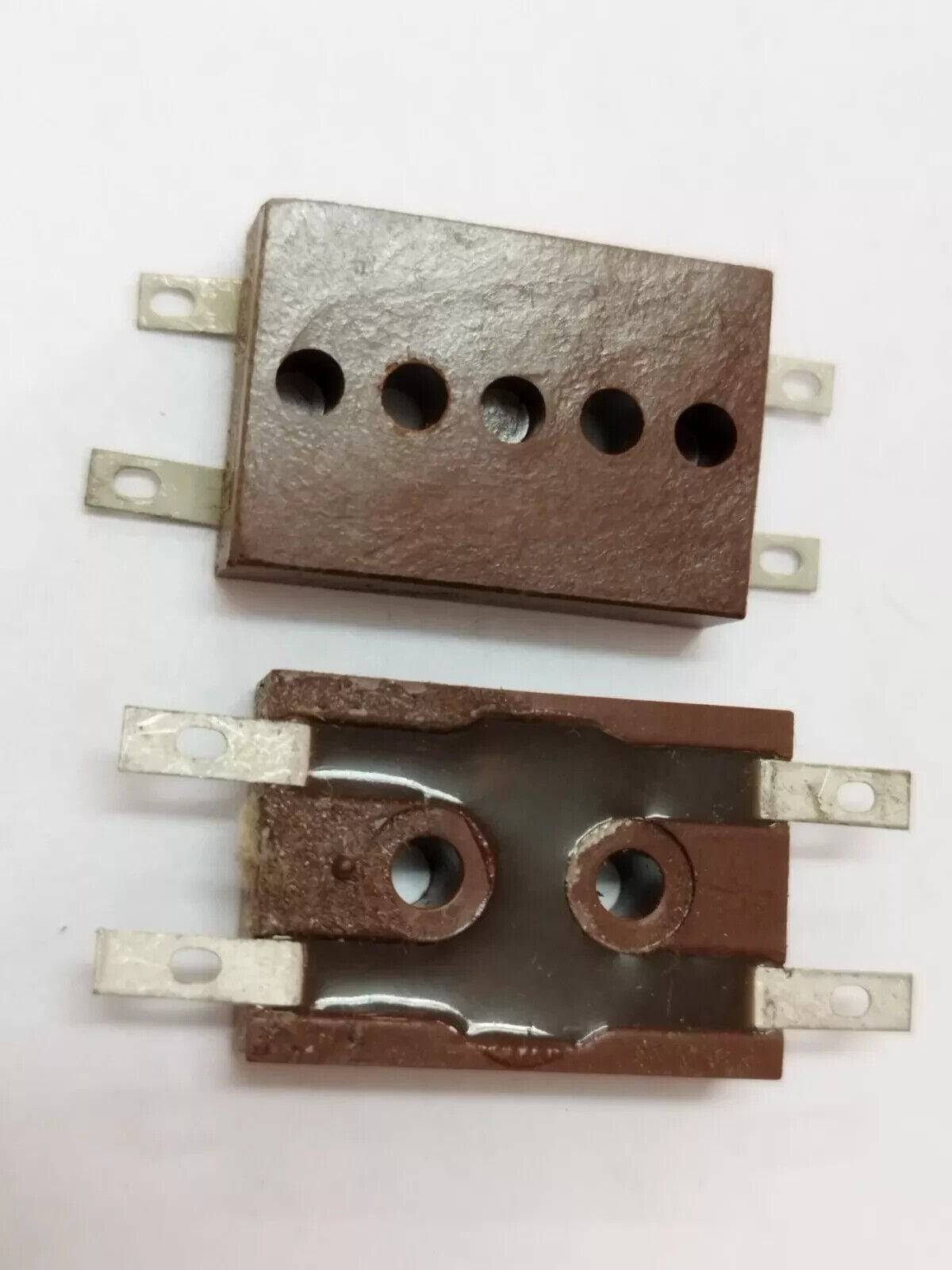

Are issued in the plastic case with rigid conclusions.

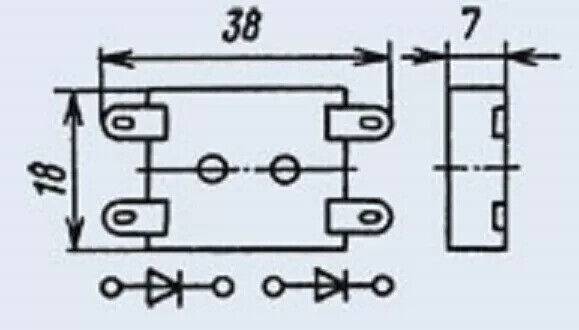

The type of assembly and the connection diagram of the electrodes of the diodes with the leads are given on the case.
Assembly weight no more than 6.0 g.
Climatic modification: "UHL".
Quality category: "OTC"
Specifications:
- acceptance "1" - UF3.362.004TU.
Import analog: 1N1711, 1N1712, 1N2085, 1N3184, 1N3229, 1N554, 1S1231, 1S315, 1S558.

The main technical characteristics of the KD205A diode:
• Uopp max - Maximum direct reverse voltage: 500 V;
• Inp max - Maximum forward current: 500 mA;
• fd - Operating frequency of the diode: 5 kHz;
• Unp - DC forward voltage: no more than 1 V at Inp 500 mA;
• Iobr - Constant reverse current: no more than 100 μA at Uobr 500 V

Characteristics of diode assemblies KD205A, KD205B, KD205V, KD205G, KD205D, KD205E, KD205ZH, KD205I, KD205K, KD205L:

diode
assembly
 Urev max Urev imp max Ipr max Ipr imp max Upr/Ipr t revert Iobr f max P T
IN IN A A B/A ns μA kHz Tue °C
KD205A - 500 0.5 - 1.0/0.5 - 100 5 - -40...+85
KD205B - 400 0.5 - 1.0/0.5 - 100 5 - -40...+85
KD205B - 300 0.5 - 1.0/0.5 - 100 5 - -40...+85
KD205G - 200 0.5 - 1.0/0.5 - 100 5 - -40...+85
KD205D - 100 0.5 - 1.0/0.5 - 100 5 - -40...+85
KD205E - 500 0.8 - 1.0/0.8 - 100 5 - -40...+85
KD205J - 600 0.5 - 1.0/0.5 - 100 5 - -40...+85
KD205I - 700 0.8 - 1.0/0.8 - 100 5 - -40...+85
KD205K - 100 0.7 - 1.0/0.7 - 100 5 - -40...+85
KD205L - 200 0.7 - 1.0/0.7 - 100 5 - -40...+85

Symbols for electrical parameters of diodes:

 • Uopp max - Maximum direct reverse voltage;
 • Uobr imp max - Maximum impulse reverse voltage;
 • Inp max - Maximum forward current;
 • Inp imp max - Maximum impulse forward current;
 • Upr/Ipr - Constant forward voltage (Upr) on the diode at a given forward current (Ipr) through it;
 • tvoc arr - Reverse recovery time;
 • Iobr - Diode reverse current at limit reverse voltage;
 • fmax - Maximum operating frequency of the diode;
 • P- the maximum allowable constant power dissipation on the diode;
 • T  - ambient temperature.




------------------------------------------------------------------------
