About Item: Germanium transistors GT403A (ГТ403А) p-n-p structure reinforcement.
Designed for use in switching devices, the amplifier output stage low-frequency, converters and DC stabilizer.

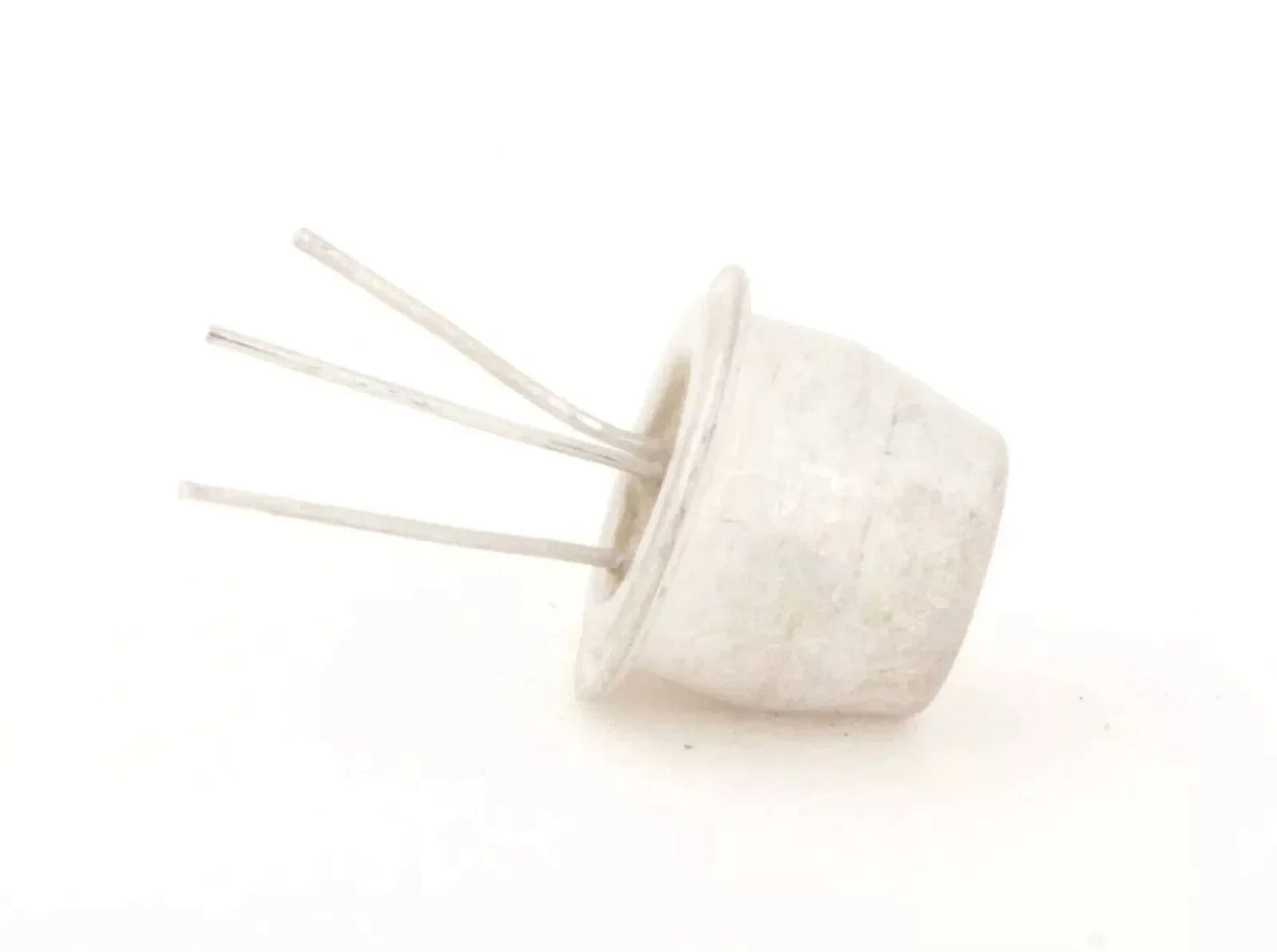

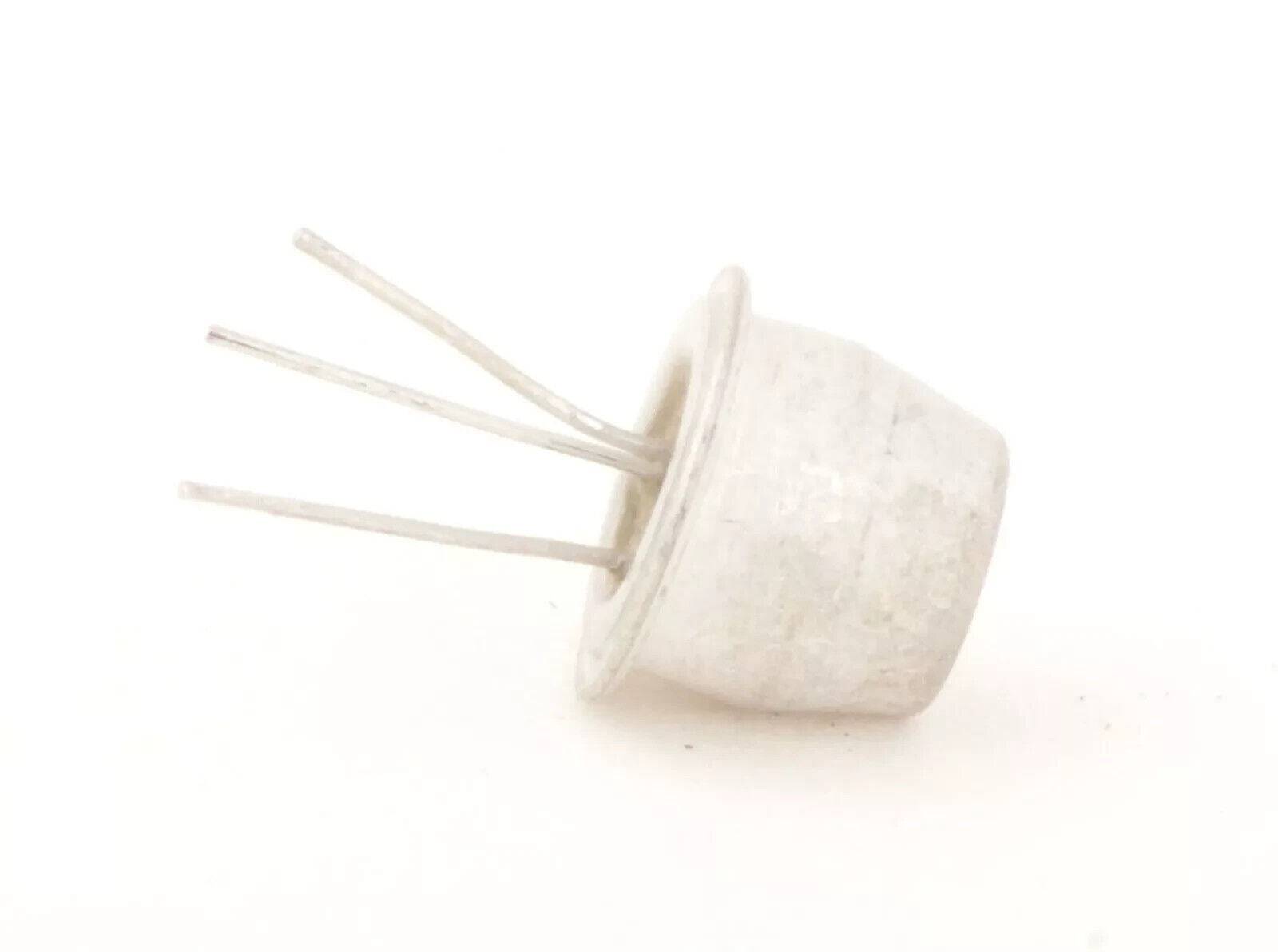

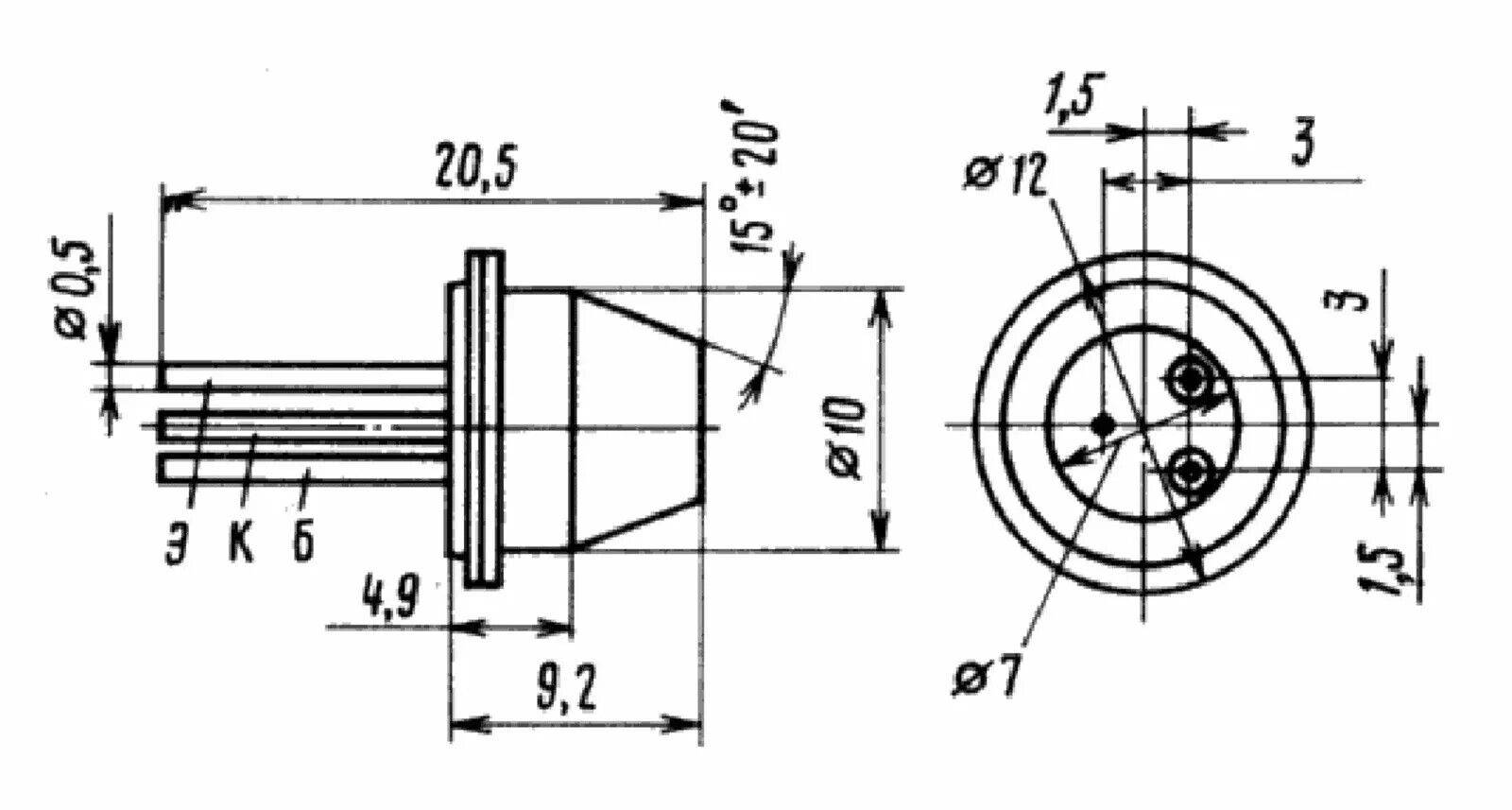

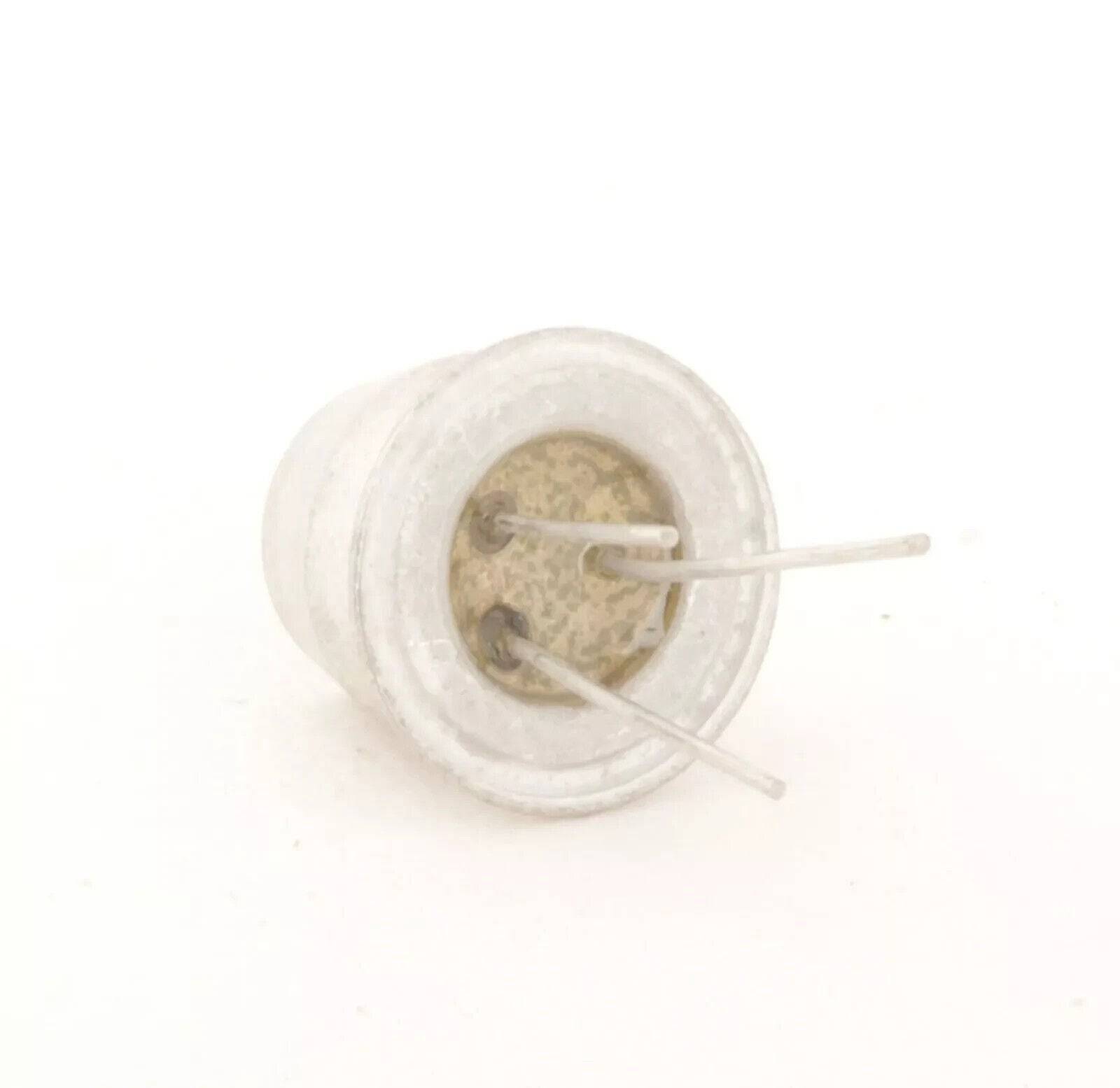

Available in metal packages with wire pins.

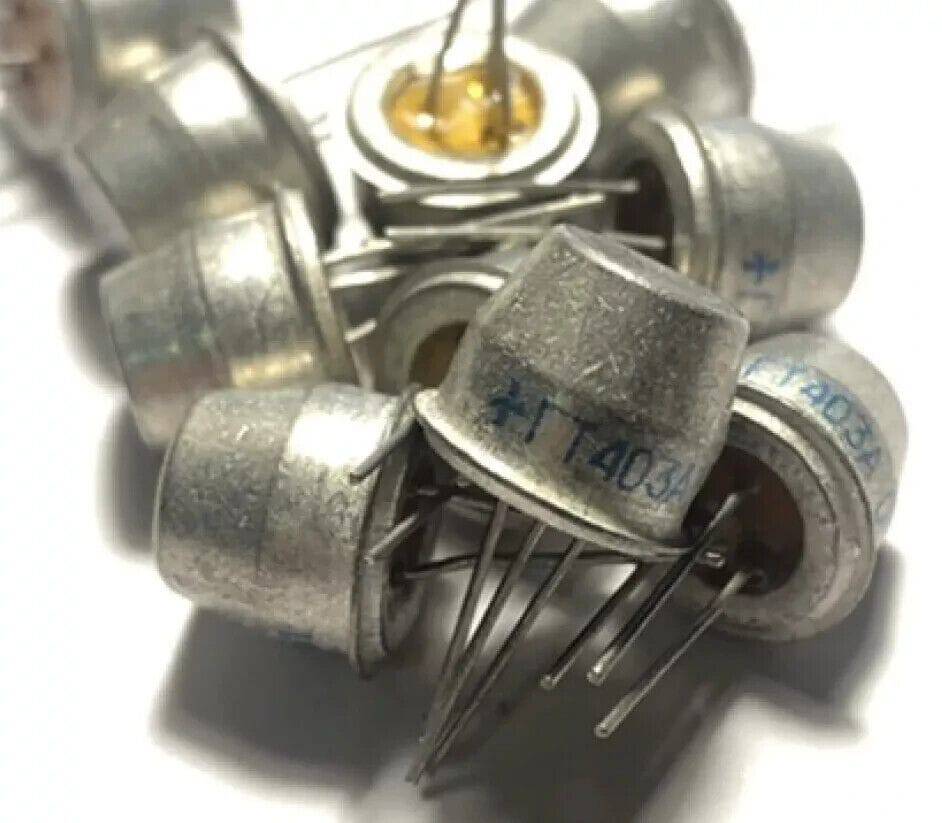

Device type is indicated on the body.
Mass transistor is not more than 4 g.
Main technical characteristics of the transistor ГТ403А:
The limit parameters at T = 25°C
PC max - dissipation 0.6 W
PC max - dissipation with heatsink 4 W
IC max – 1.3 А
UCE0 max - 30 V
UCB0 max - 45 V
UEB0 max - 20 V
Ttransition max - 80 °C
Tcasing - 25 °C
Tcasing max - 70 °C
The parameters at T = 25°C
RCE sat - < 1 Ohm
UCE sat (ICE = 5 mA) - 0.5 V
fmax - maximum frequency generation: 0.008 MHz;
ICBO (UCB0 = 45 V) - <50 uA
Temperature range (-55 to +70) °C.
---------------------------------------------------------------------------------------------------------------------------------------------------
