Ideal for Audio !!!
Military capacitors
Lot of 1pcs

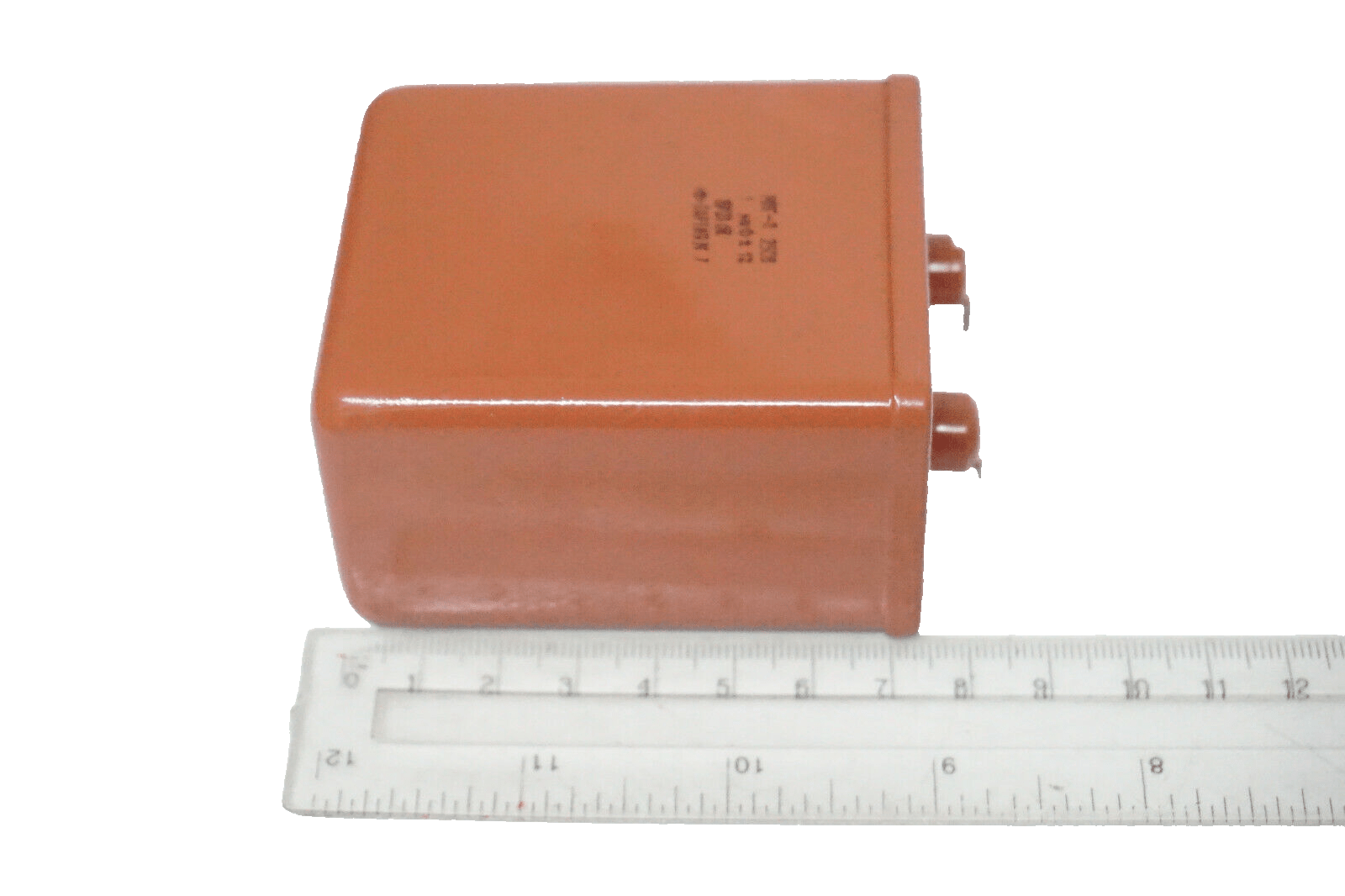

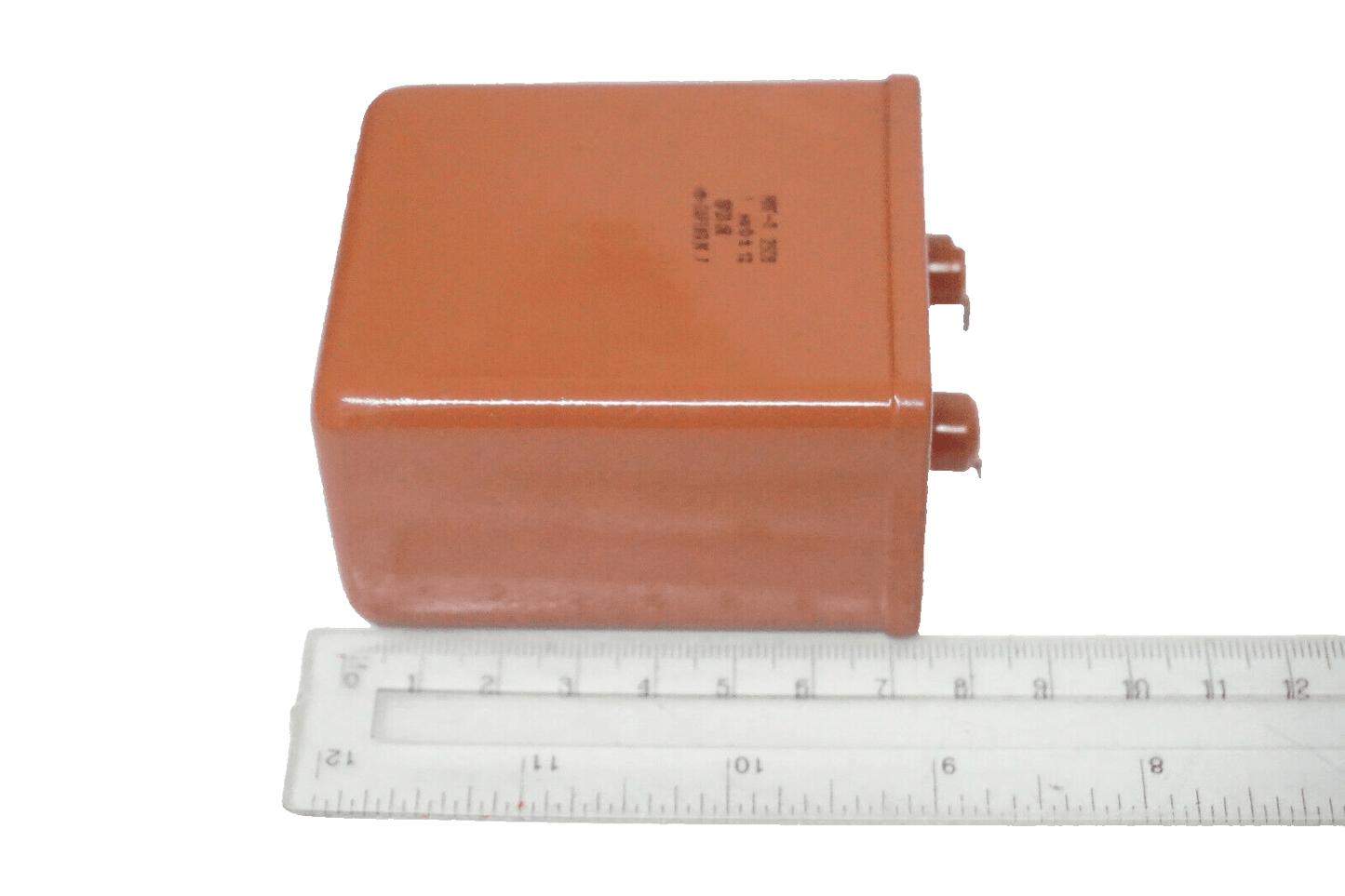

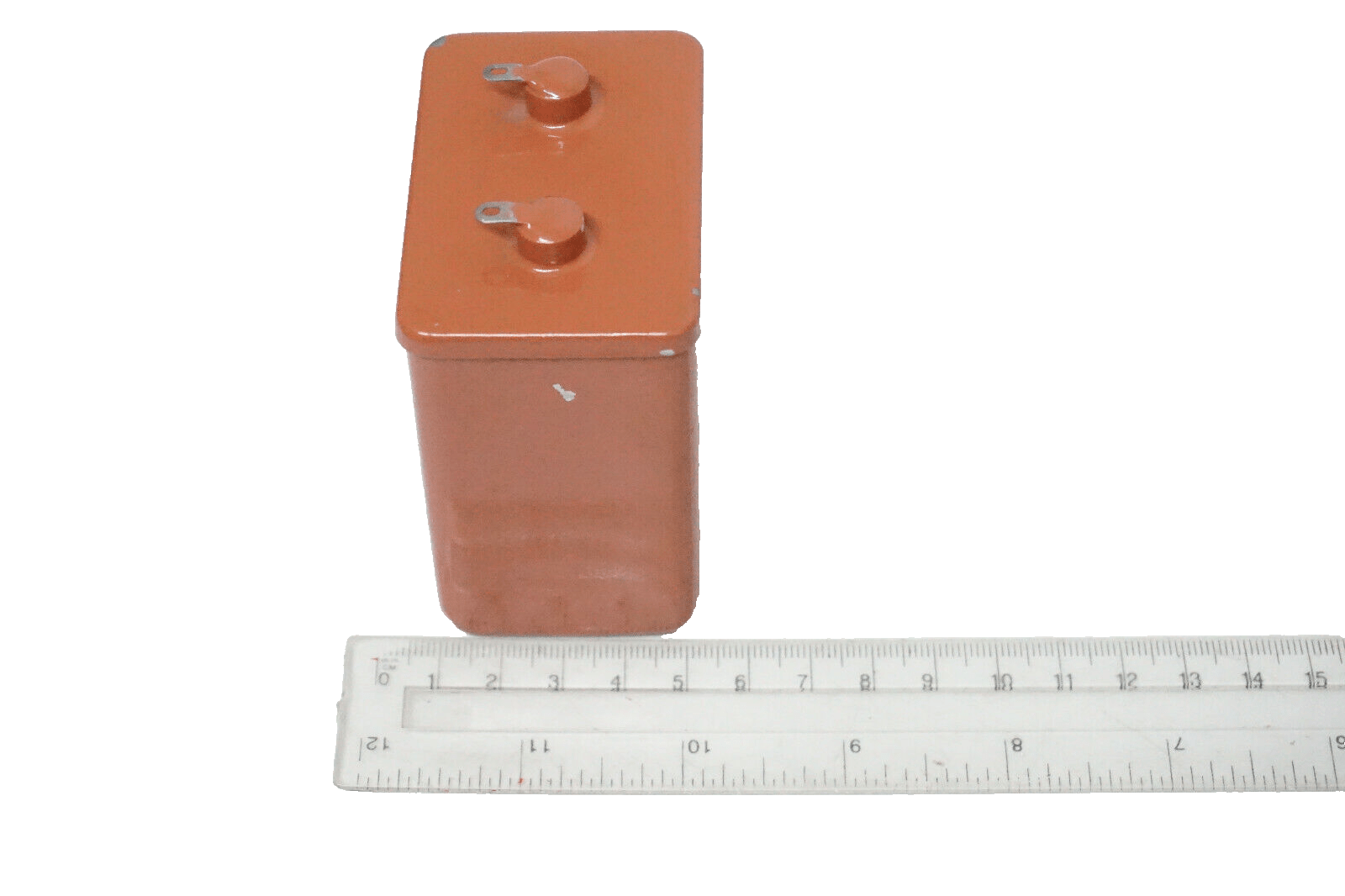

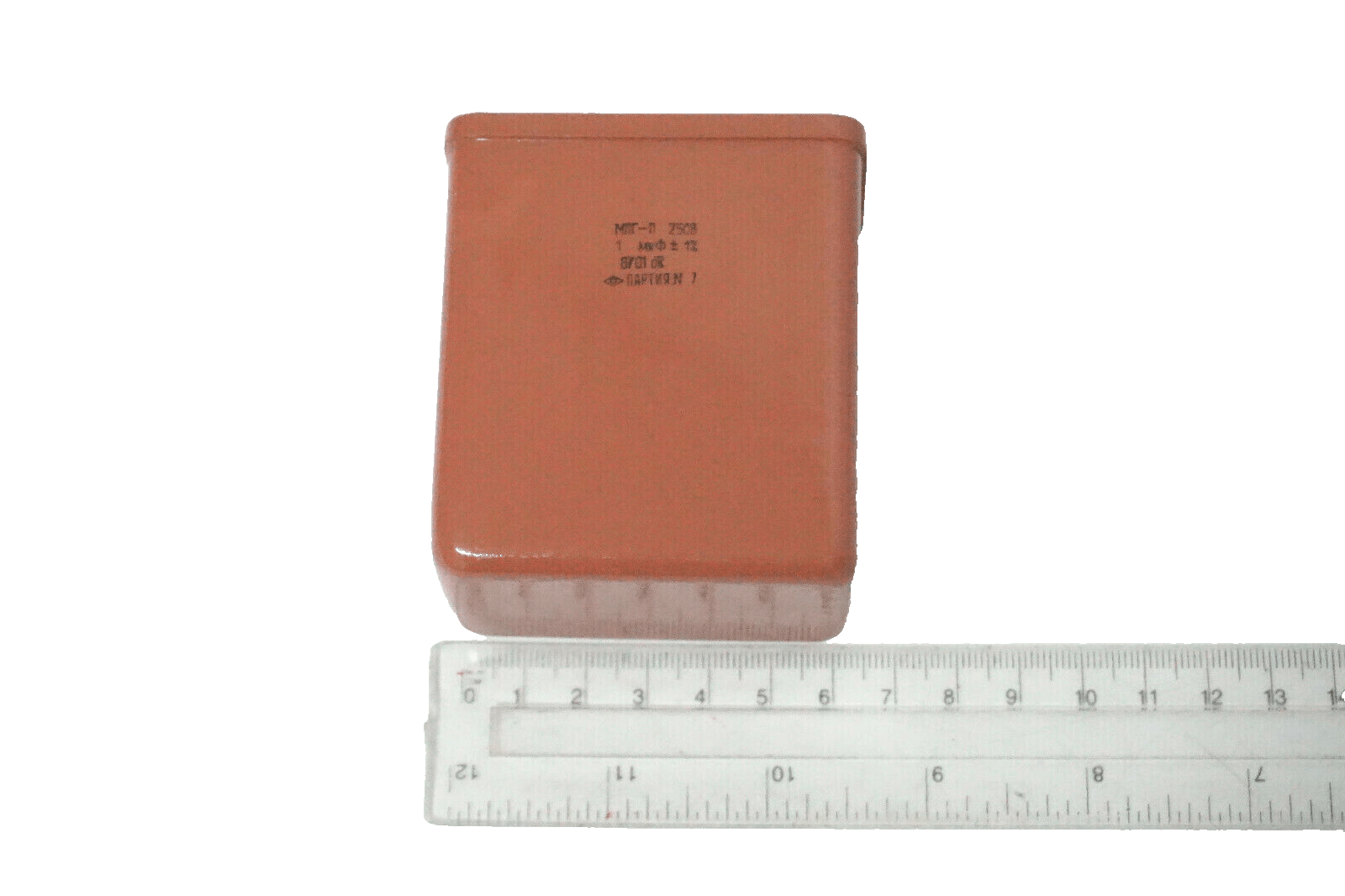

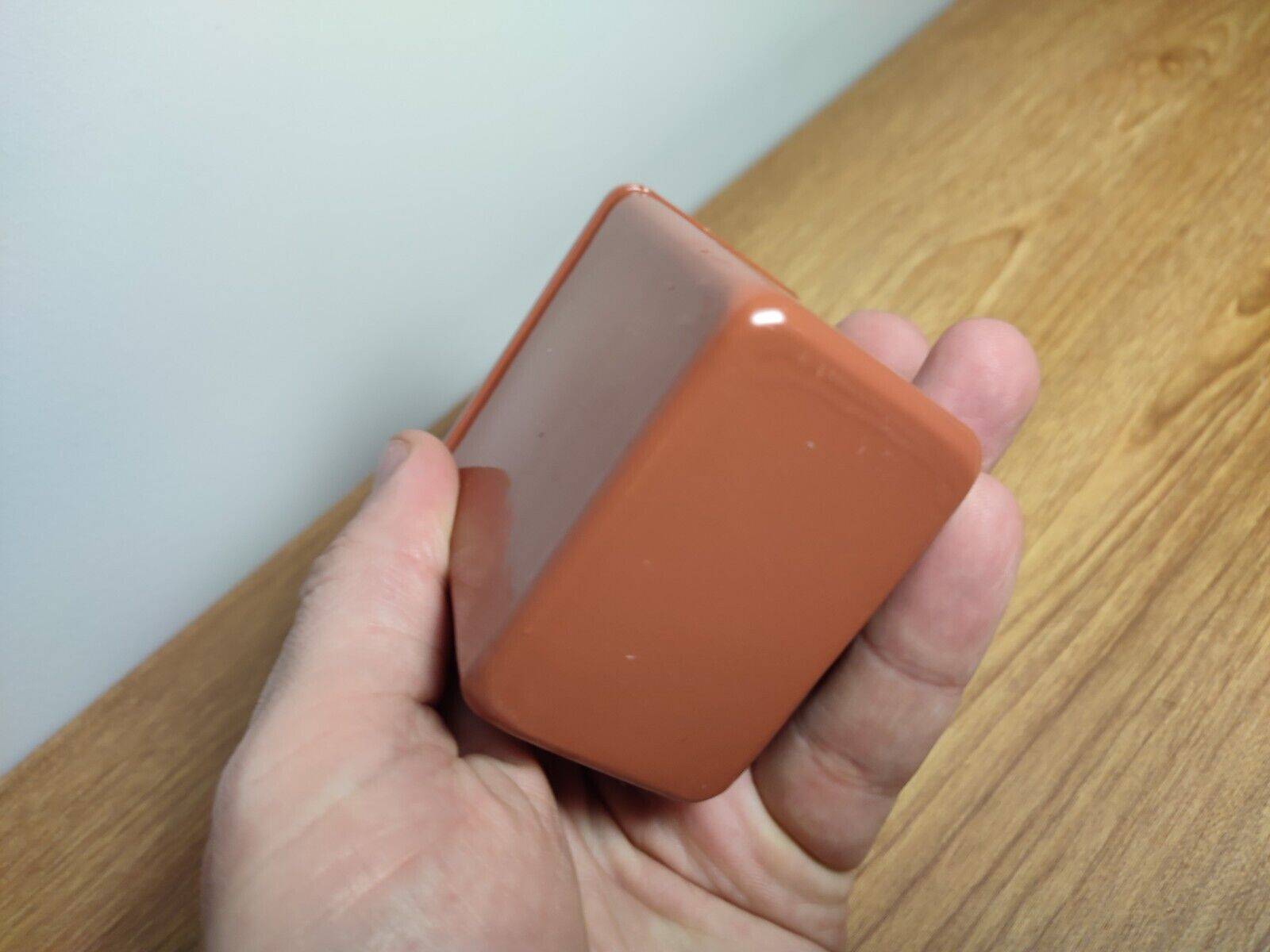

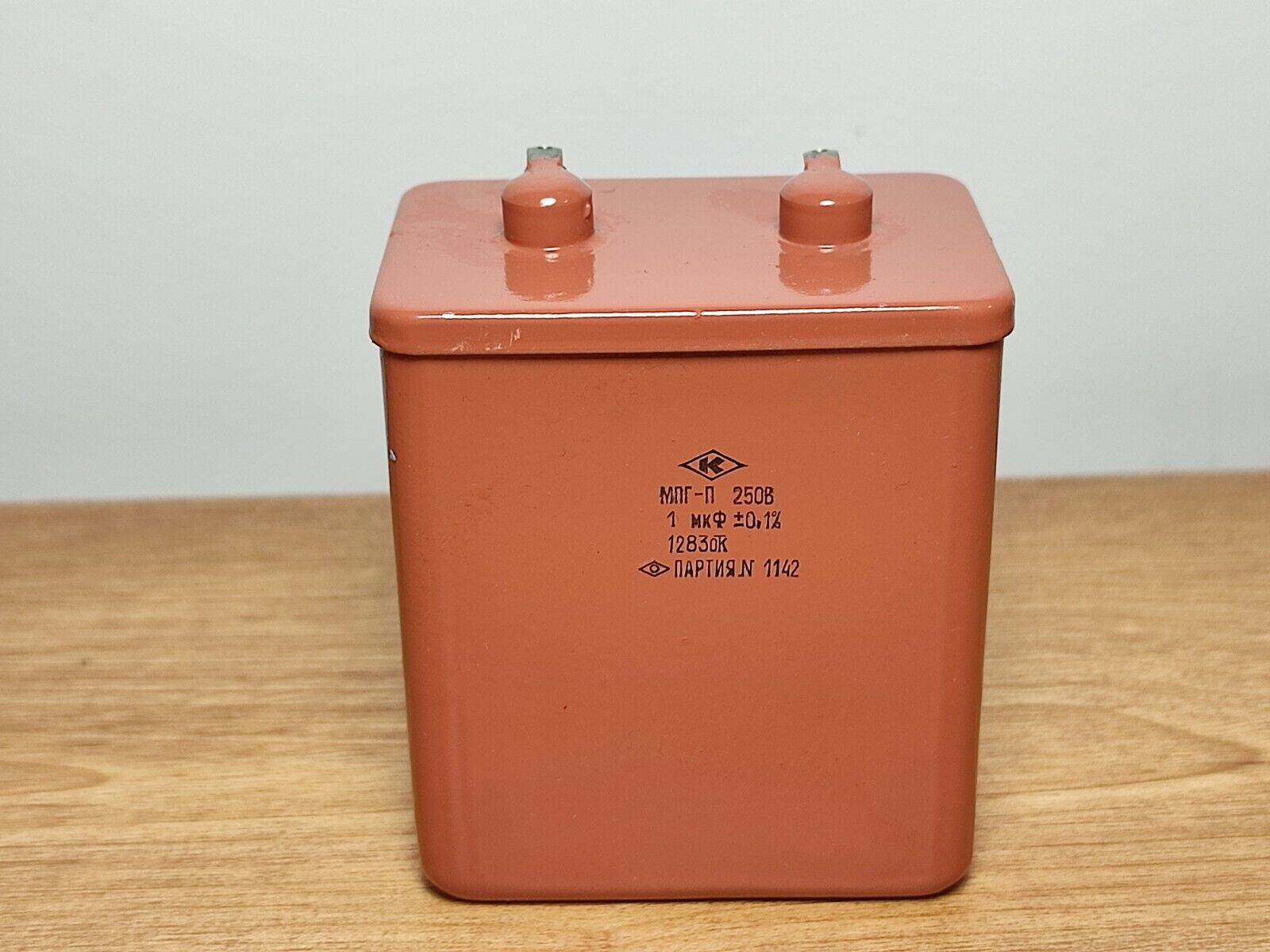

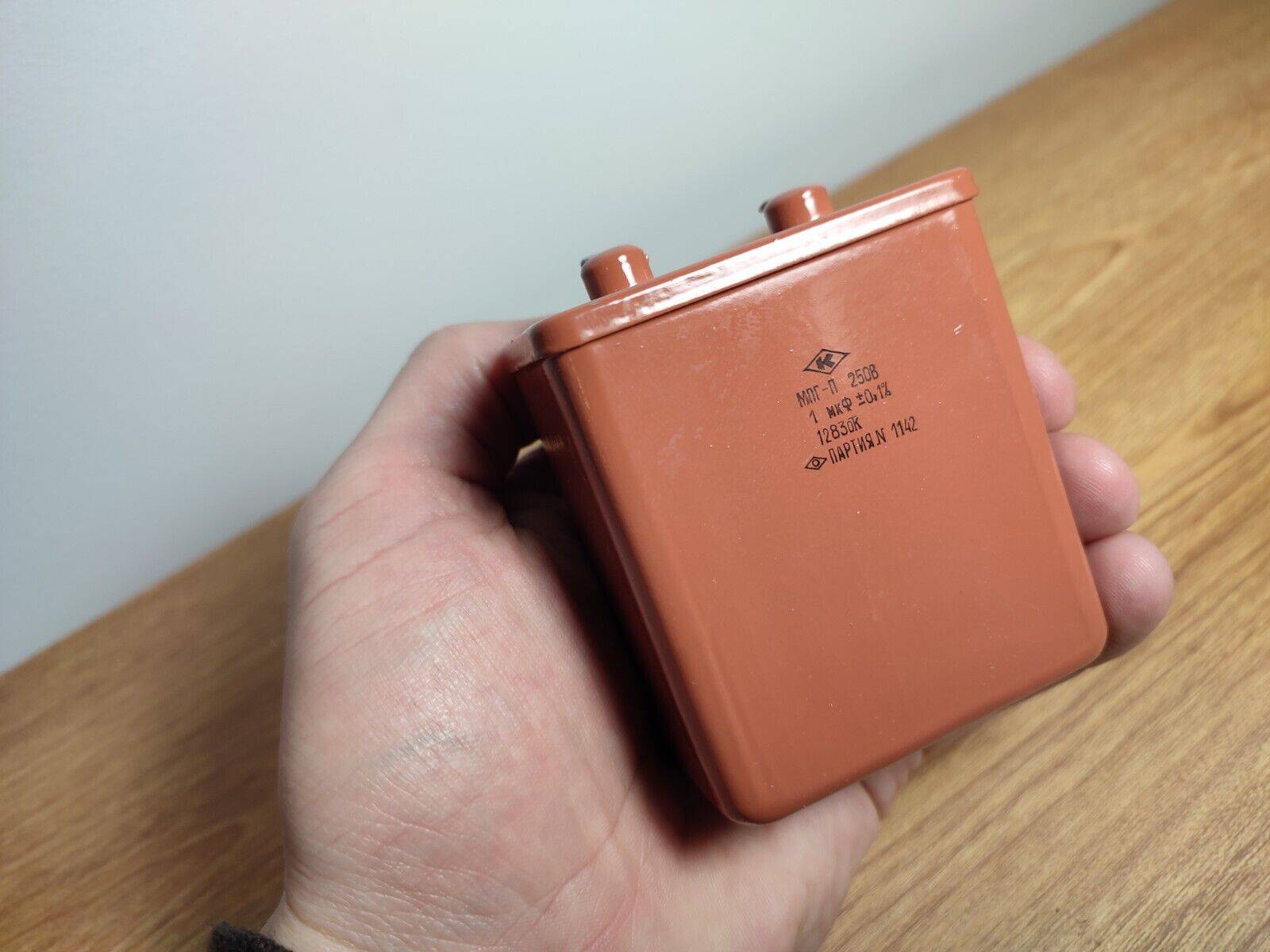

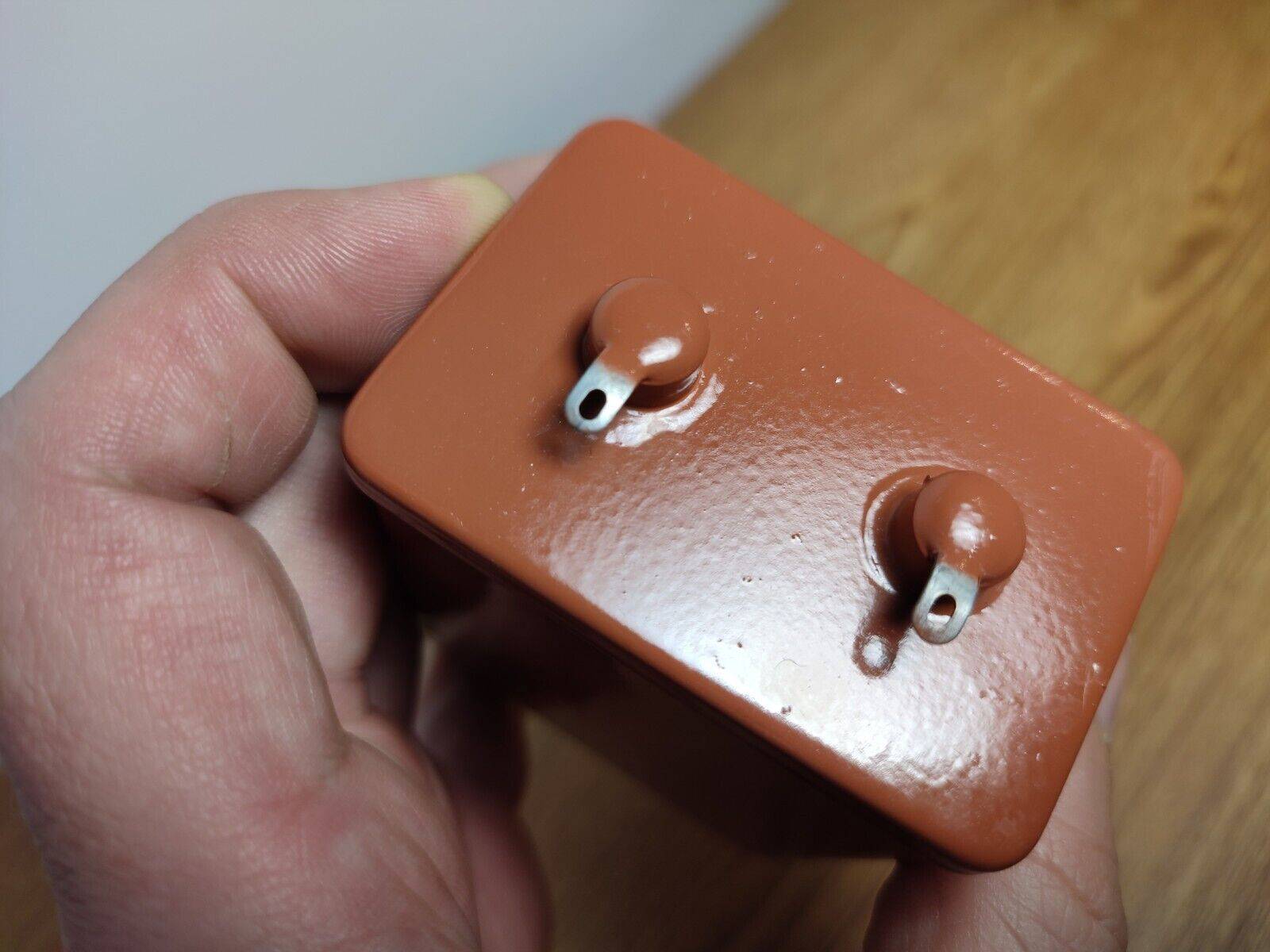

MBGP metal-paper sealed high-voltage pulse capacitors. Designed for operation in DC, AC and pulsed current circuits. Available in rectangular cases with petal leads, single-section (option 1) and two-section (option 2). According to the method of attachment, capacitors differ in the presence or absence of special mounting plates on the body.
Main characteristics:
rated voltage 400, 630, 1000, 1600 V
rated capacity 0.1...10 UF
loss angle Tangent 0.01
capacity tolerance±5%; ±10%; ±20%
insulation Resistance time constant for capacitors with Sleep ≤ 0.24 UF 5000 MOhm
insulation Resistance time constant for capacitors with Sleep > 0.24 UF 1000 MOhm
ambient Temperature - 60...+ 70 °C
relative humidity at 25 °C no more than 98%
atmospheric low pressure 1.3*10-7 kPa
Guaranteed operating time of 10,000 hours
