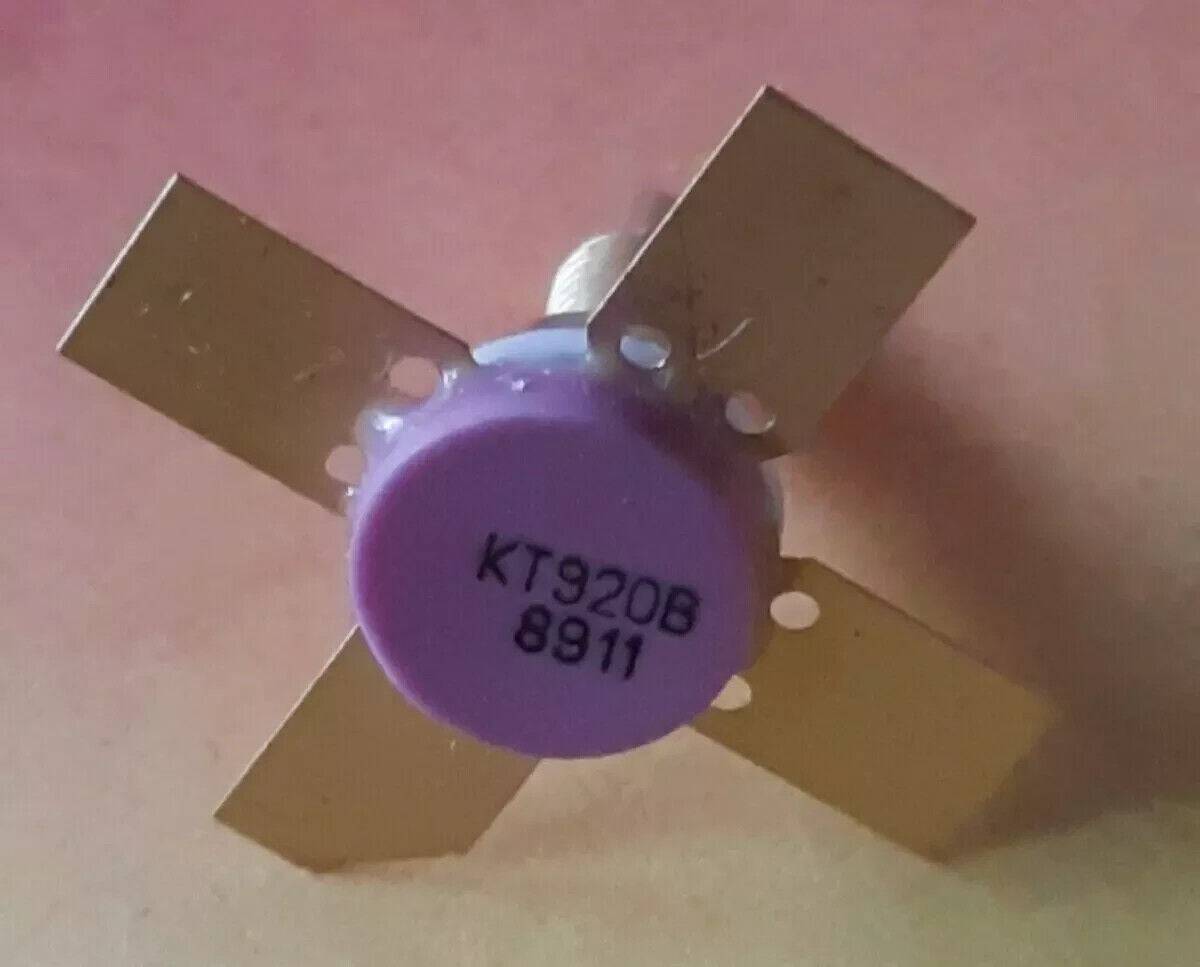

1pcs KT920V КТ920В SILICON VHF RF NPN TRANSISTOR 25W GOLD-PLATED
About Item: KT920V (КТ920В) designed to operate in the VHF circuits at frequencies 30-200 MHz power amplifier.
Equivalent to the 2N6081.
The Transistor contains 0,07 gramme of Pure Gold(9999)
QUICK REFERENCE DATA:
Structure: NPN
Max. Ucb for a given back to the current and open circuit e. (Ucb max) - 36 V
Max. Uce at a given current, and given to the conj. in the chain b-e. (Uce max) – 36 V
The maximum allowable current of (Ic max) - 3 A
Static coefficient of current transfer h21e > 25
Max. frequency of the current transfer ratio - 400 MHz
Maximum power dissipation at (P) - 25 W
Manufacturer: Russia
Electrical parameters for acceptance and delivery (t case - 25 °C).
---------------------------------------------------------------------------------------------------------------------------------------------------
