10x 6J8 / 6Ж8 = 6SJ7 HF Pentode Tube NEVZ Soviet Diff DATE NEW NOS RADIO TUBES

10x 6J8 / 6Ж8 = 6SJ7 HF Pentode Tube NEVZ Soviet Diff DATE NEW NOS RADIO TUBES

€12,50 EUR
€12,50 EUR
Sale Sold out
Shipping calculated at checkout.
10x 6J8 / 6Ж8 = 6SJ7 HF Pentode Tube NEVZ Soviet Diff DATE NEW NOS RADIO TUBES
6Ж8
Pentod 6Ж8 is designed to amplify high frequency voltage.
Used in the cas cades UHF and Ombudsman as a grid detector in the receiving and measuring apparatus.
Works in any position.

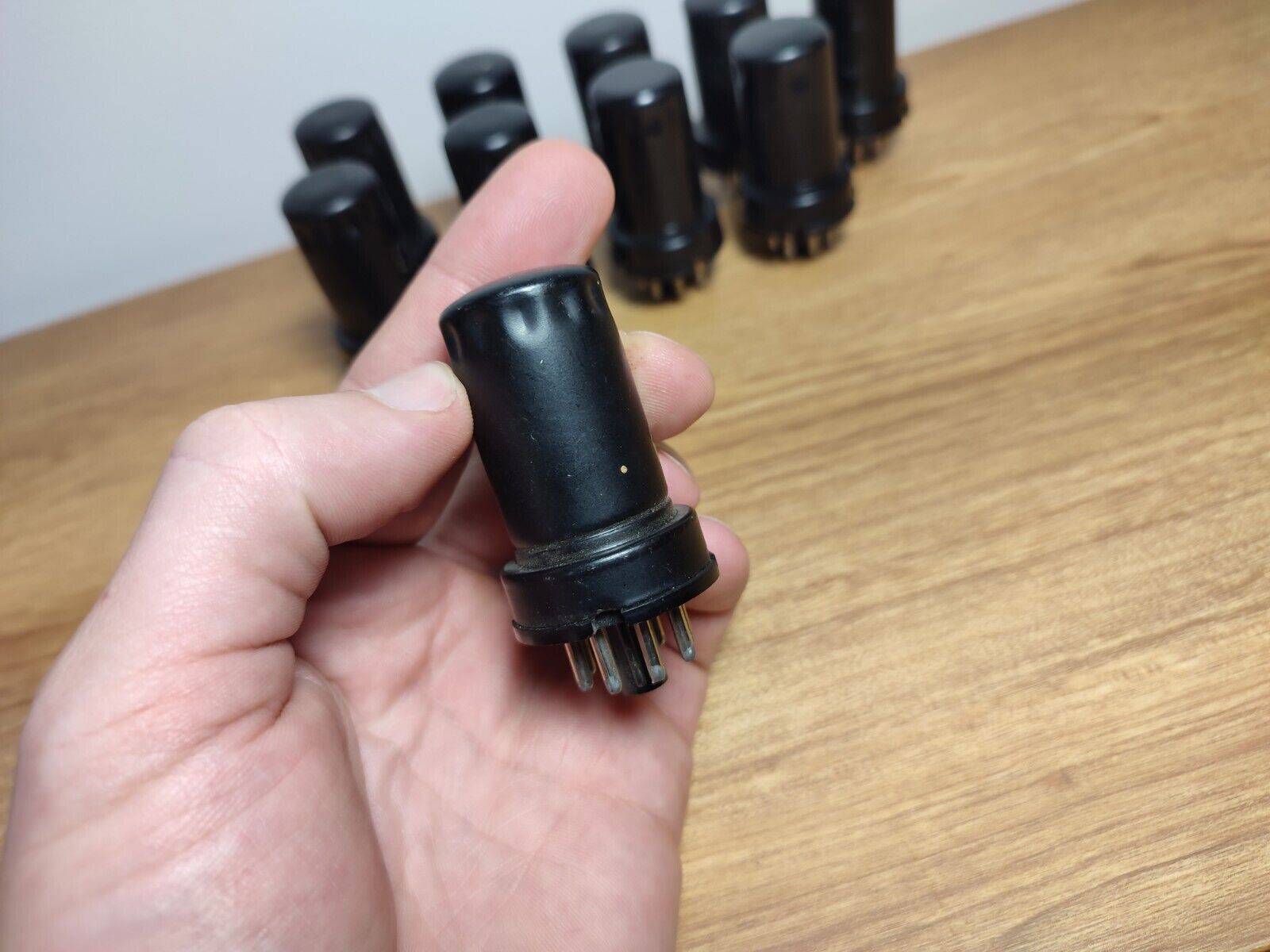

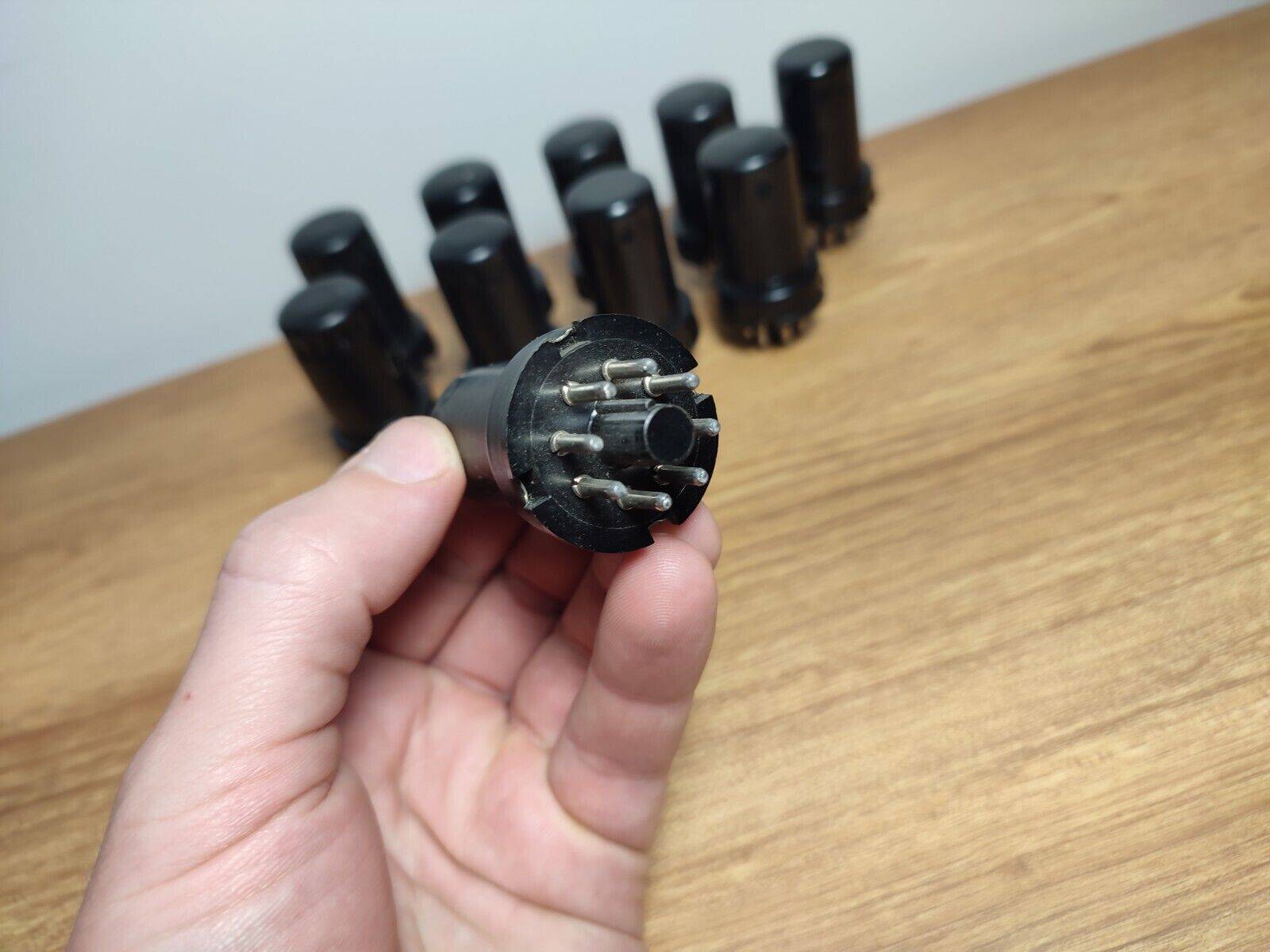

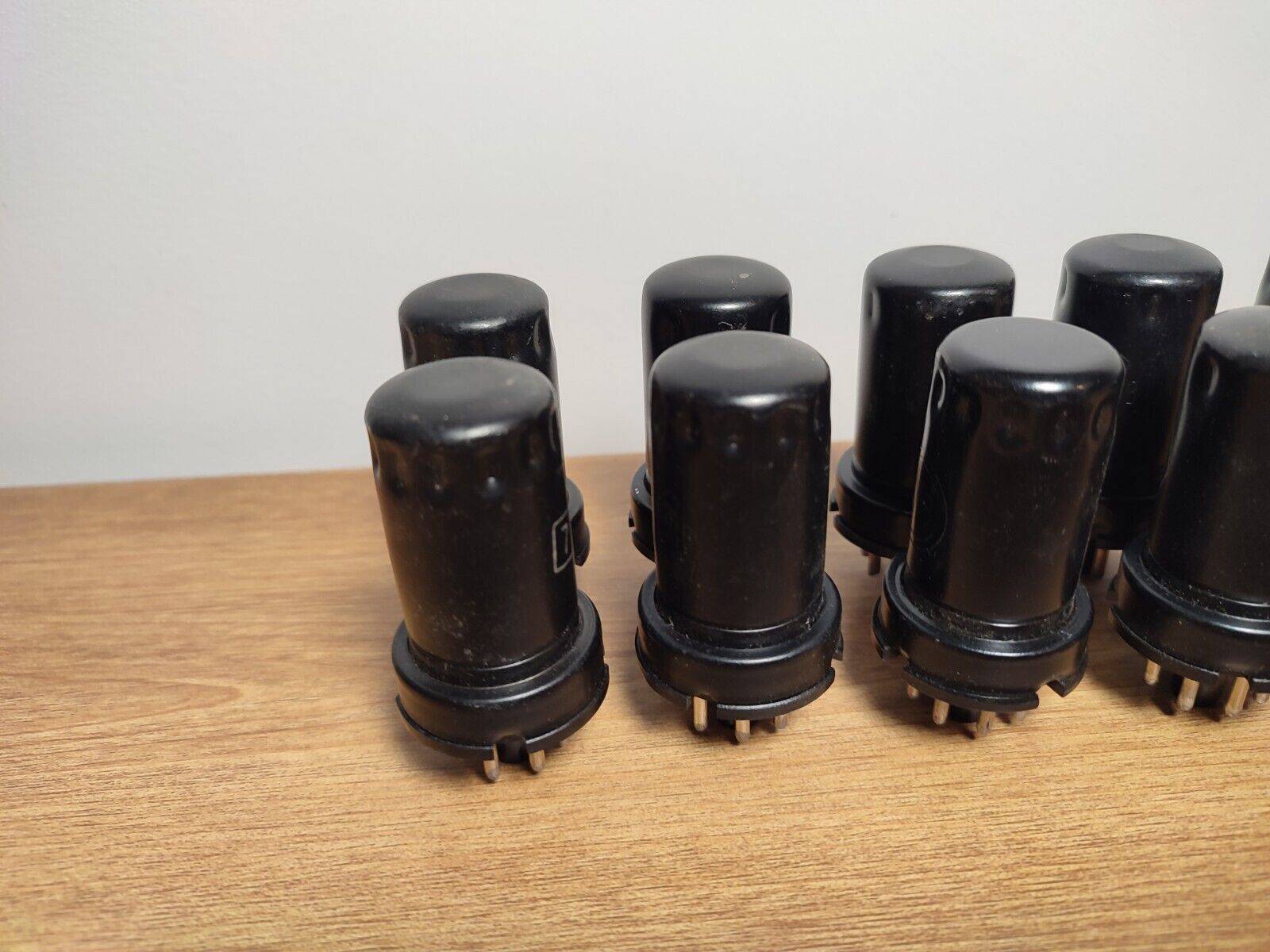

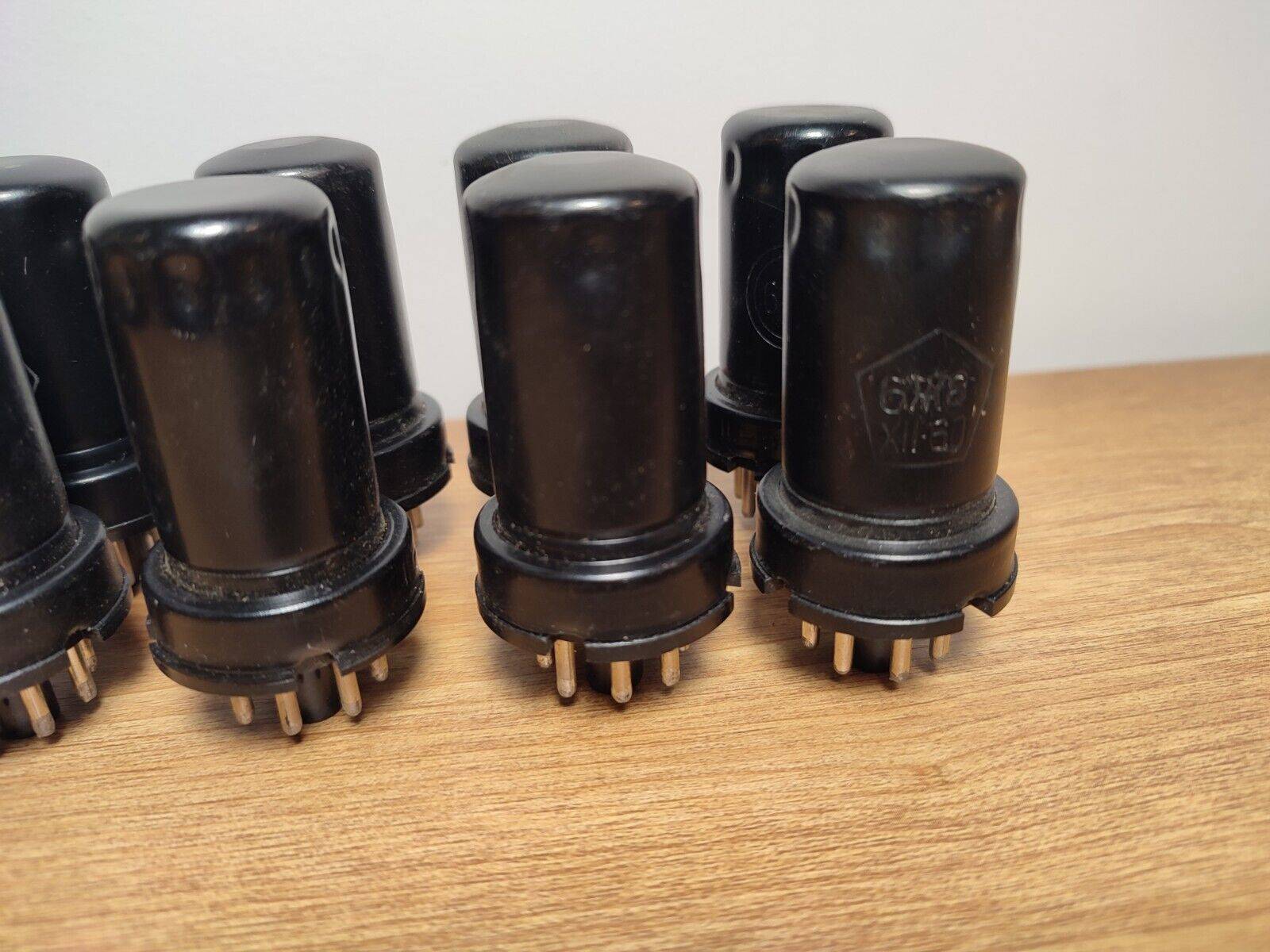

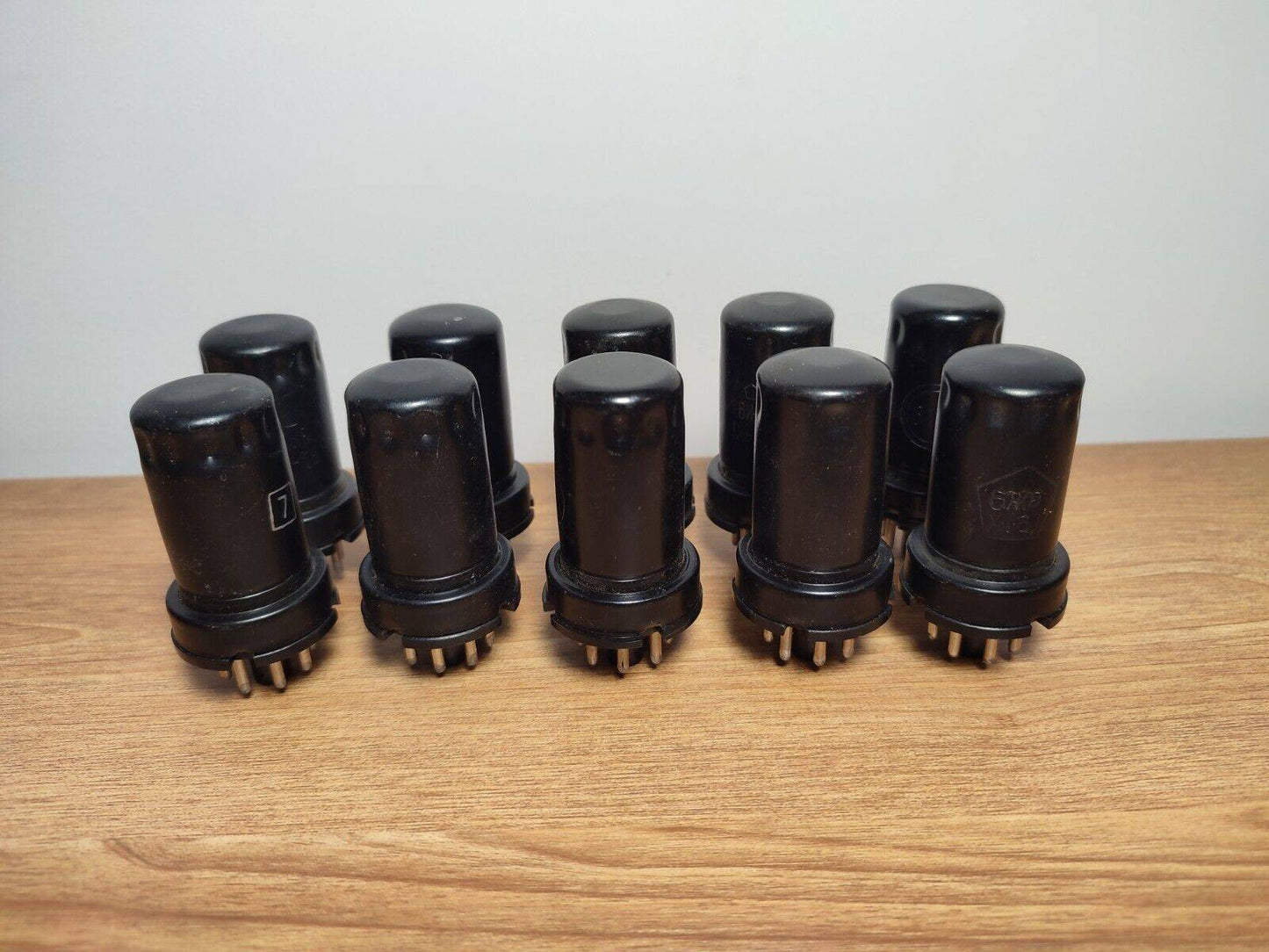

Manufactured in metal design.
Service life at least 500 hours

Main technical characteristics 6Ж8:
• Rated electrical data
• Filament voltage, ...... 6,3
• The voltage on the anode, ...... 250
• The voltage on the second grid In ...... 100
• The voltage on the third grid ...... 0
• The bias voltage on the first grid, ...... -3
• Filament current, mA ...... 300 ±25
• The current in the anode circuit, mA ...... 3 ±1
• The current in the circuit of the second grid, mA ...... 0,8 ±0,4
• Slope, mA/V ...... A 1.65 ±0,35

Maximum permissible electrical values
• The maximum stress intensity, In ...... 6,9
• The smallest filament voltage, ...... 5,7
• The highest voltage at the anode, ...... 330
• The highest voltage of the PA second grid, ...... 140
• The highest power dissipated at the anode, W ...... 2,8
• The highest power dissipation in the second grid, W ...... 0,7
• The highest DC voltage between the cathode and the heater, ...... 100
• The highest leakage current between the cathode and heater, ua ...... 20


---------------------------------------------------------------------------------------------------------------------------------------------------

Import duties, taxes and chargers are not included in the item price or shipping charges. These charges are the buyer's responsibility.
Please check with your country's customs office to determine what these additional costs will be prior to bidding buying.

Combine shipping is accepted.
If you need less or more items of this type, or if you need add some other items, contact us, and we will make special listing for you.
Give us the list of items you need, and we'll do the rest.

We have many other vacuum tubes for audio and other, ask us if you need any of them.

Items are shipped from Lithuania Post (Europe Union) via expedited International tracking.


Returns

We guarantee you complete satisfaction with all our high quality products.
If you receive an item you did not order, or if an item you ordered is received damaged or defective, we will refund you the price you paid for it or replace it with identical one.

The item should come to the above address within 30 days after you received it.
After 30 days we will no longer be responsible and the item won't be taken back.

Item for returning must have the original tags and packing, otherwise it won't be accepted.
View full details
