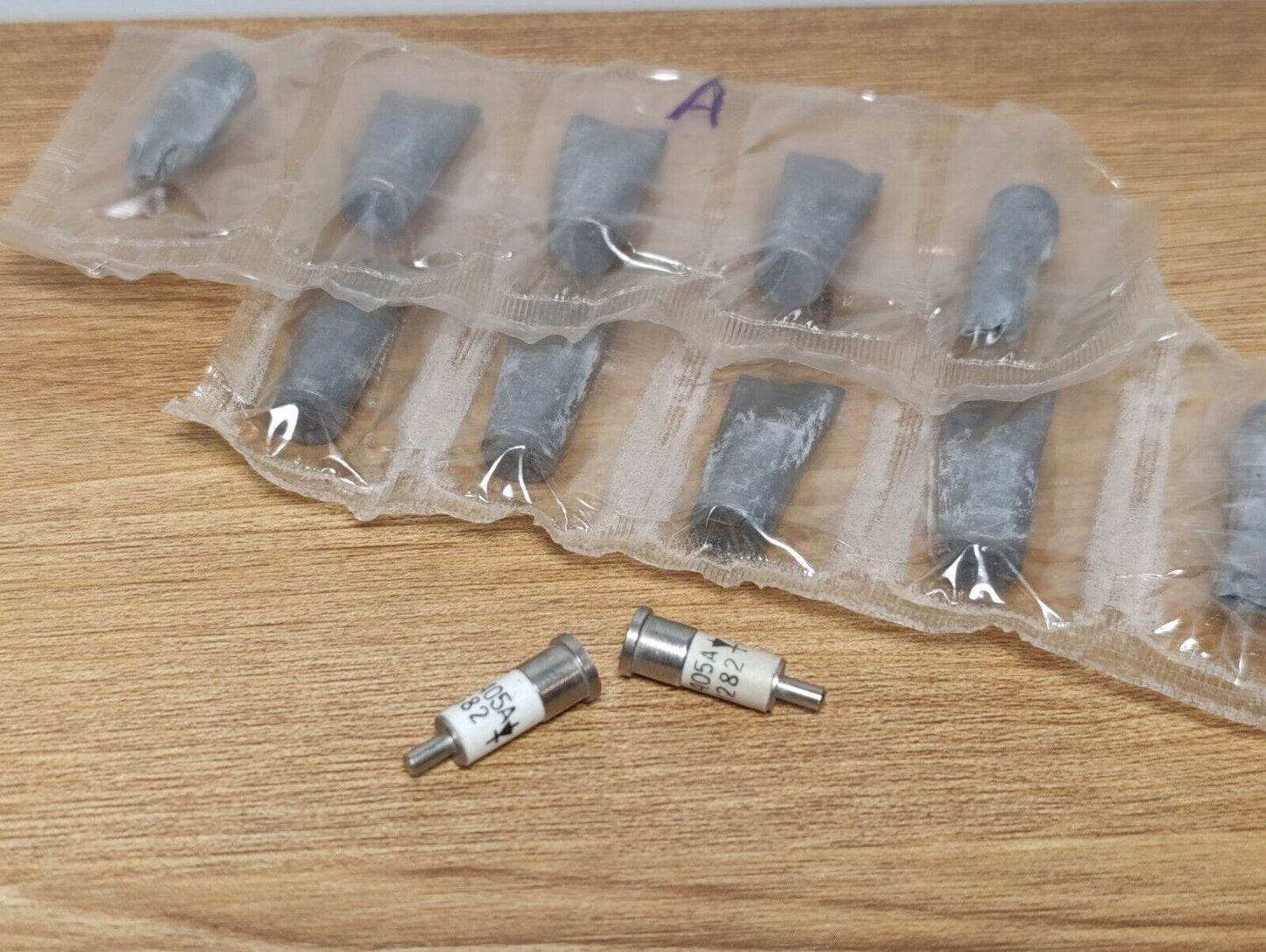

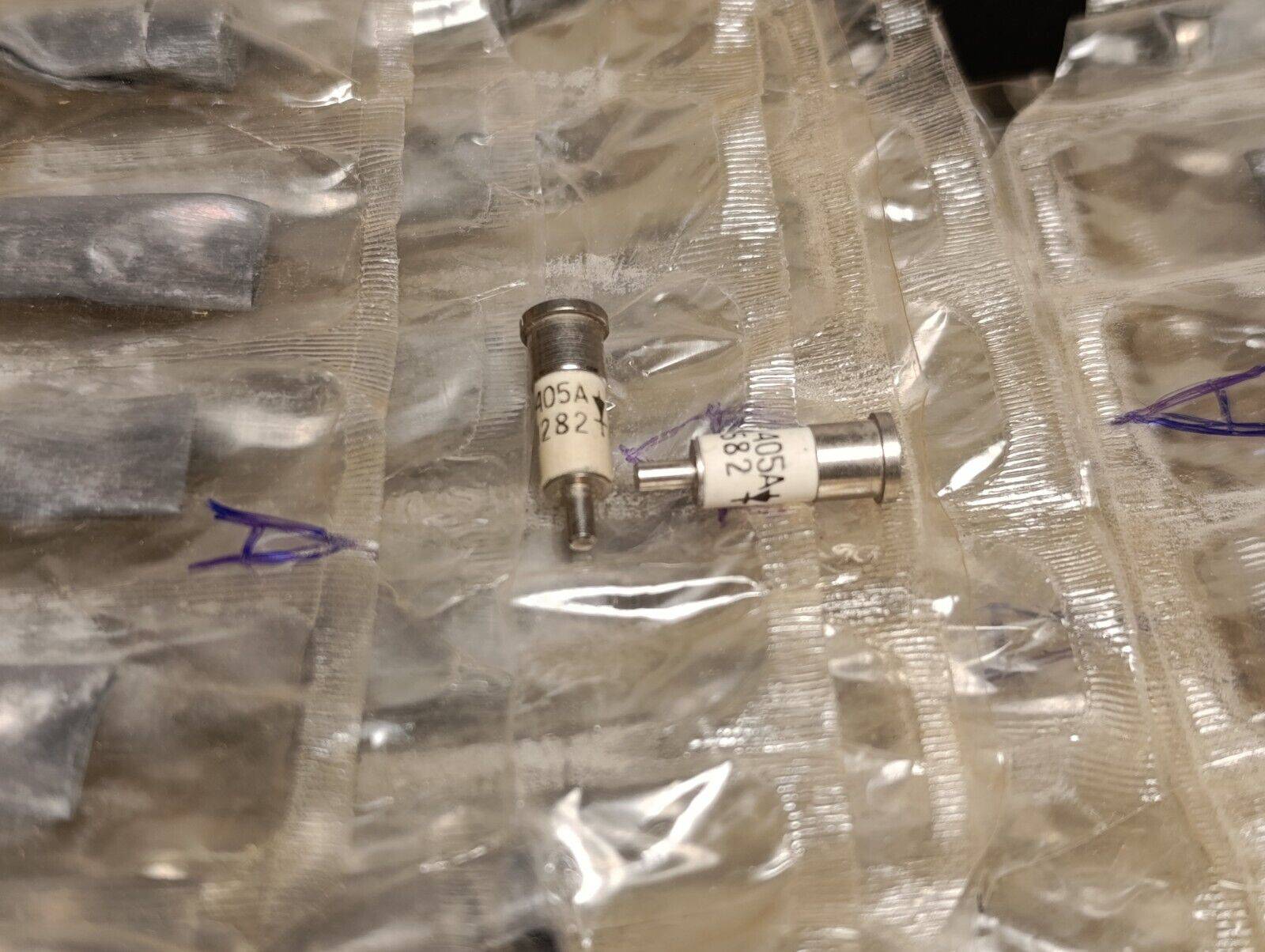

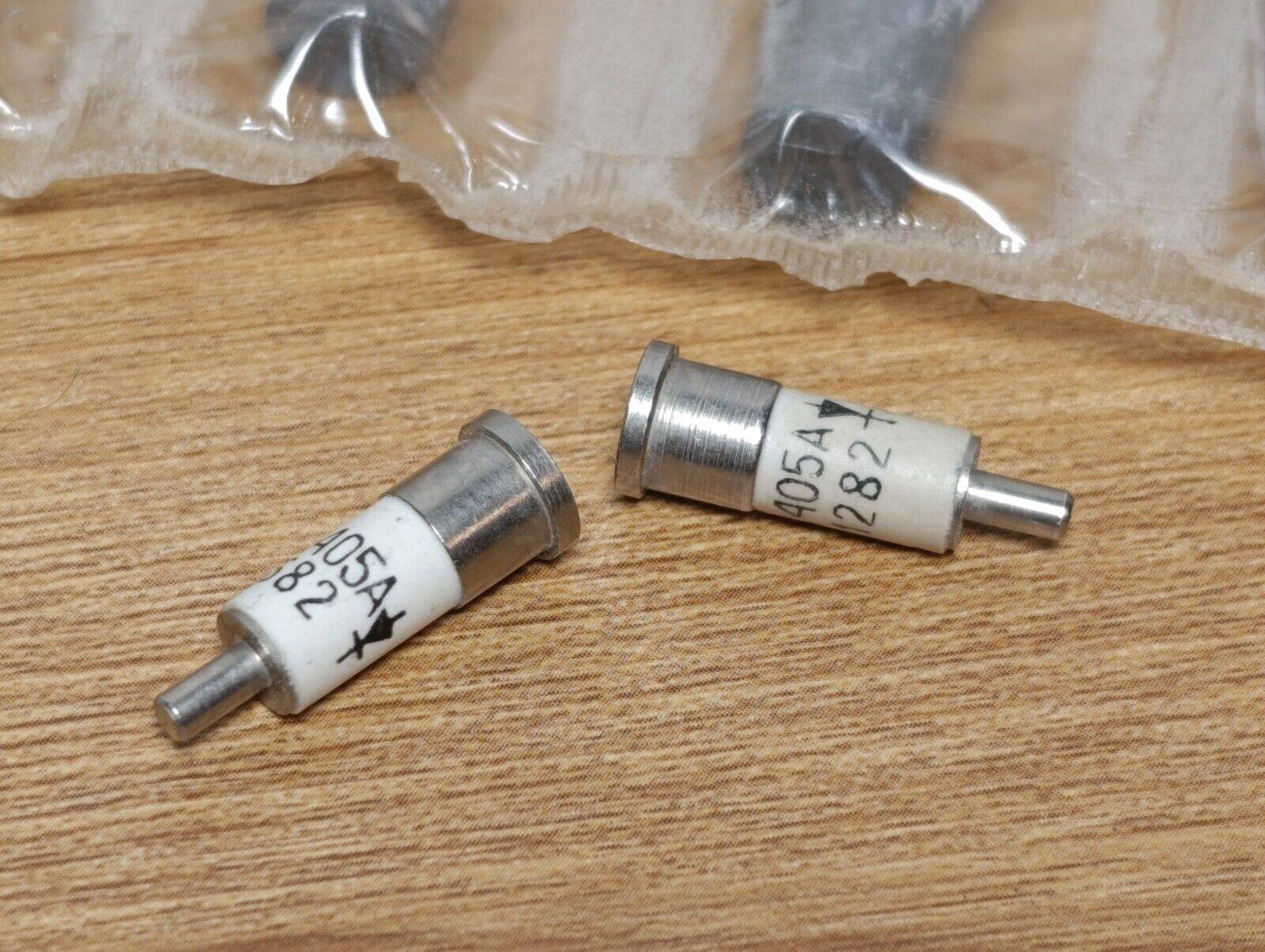

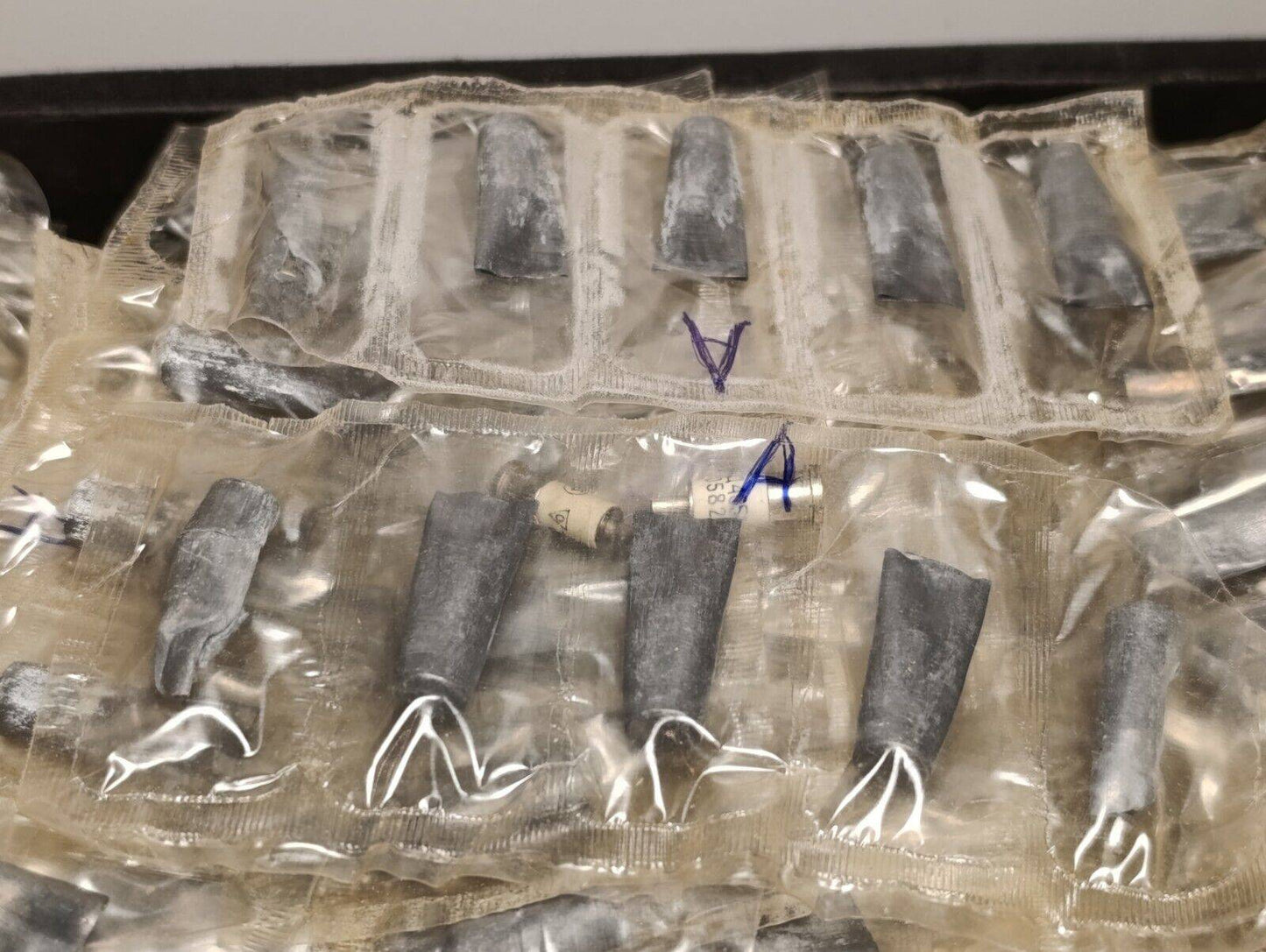

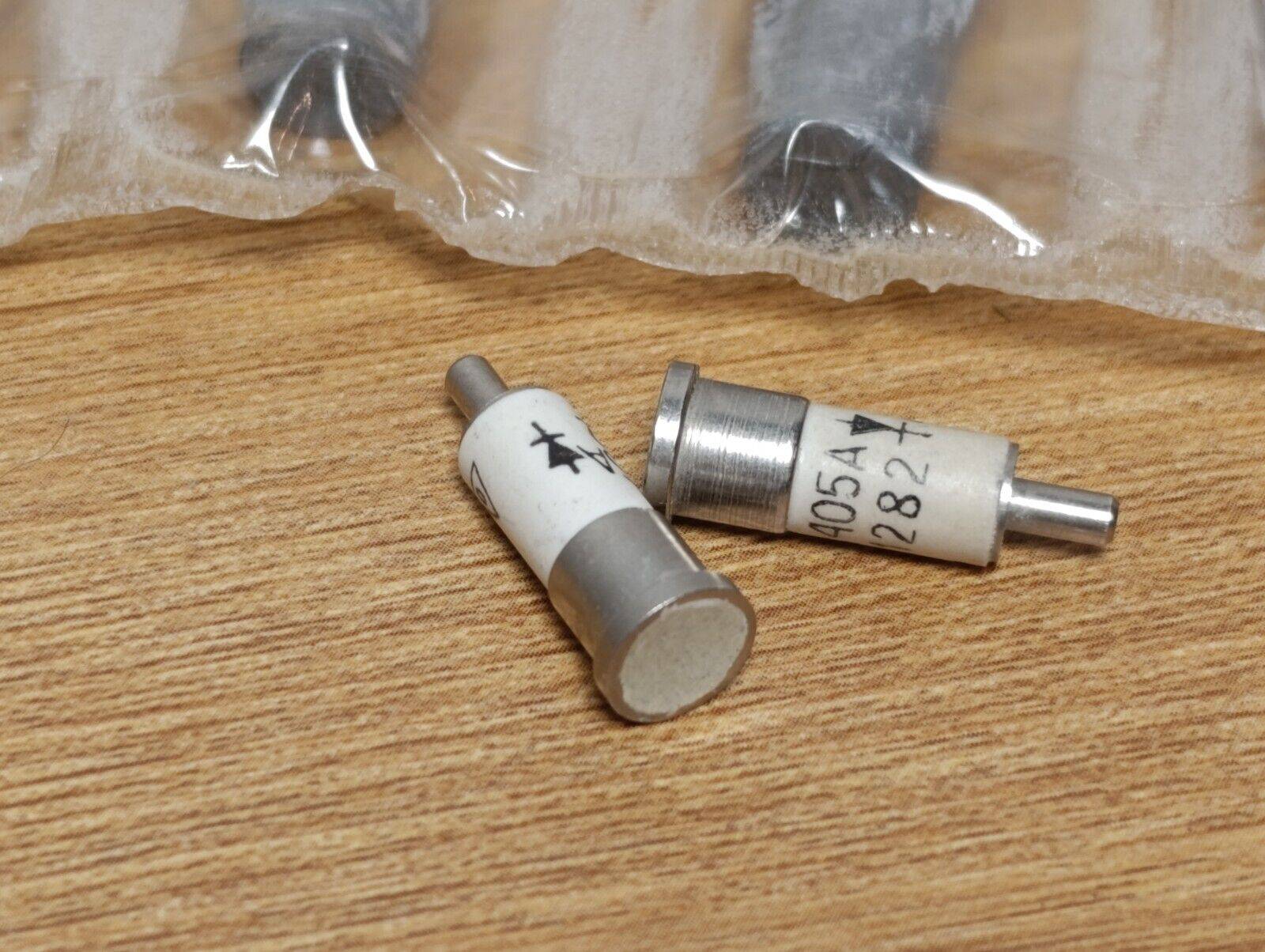

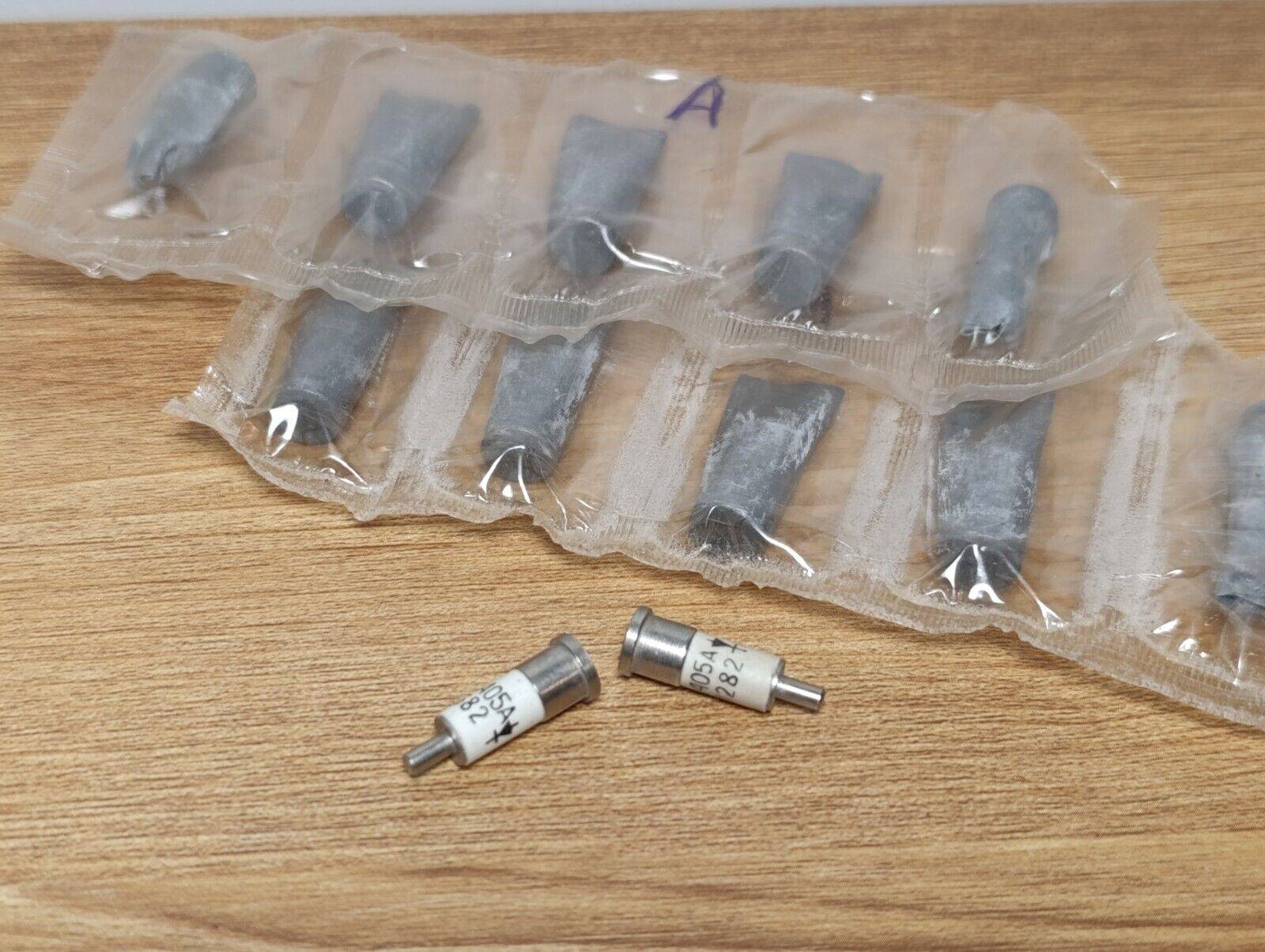

10pc D405A USSR Д405A Military Microwave Mixer Diode 8.2...14.2GHz military


 D405A

(Д405A)

Price is for 10pc


USSR

 Military Microwave Mixer Diode 8.2...14.2GHz


Диод Д405Б  кремниевый точечный смесительный.

Предназначен для применения в преобразователях частоты на длине волны 3 см.
Выпускаются в металлокерамическом корпусе с жесткими выводами.
Тип диода и схема соединения приводятся на корпусе.
Диоды прямой полярности: Д405, Д405А, Д405Б.
Диоды обратной полярности: Д405АП, Д405БП.
Диоды, подобранные в пары: Д405АР, Д405БР, Д405АПР, Д405БПР.
Масса диода не более 4.5 гр.



Основные технические параметры СВЧ диода Д405Б:


• Выпрямленный ток: не менее 1 мА;
• Нормированный коэффициент шума: 8,5 дБ;
• Выходное шумовое отношение: не более 2;
• Коэффициент стоячей волны по напряжению: не более 1,4;
• Выходное сопротивление: 300...450 Ом;
• Непрерывная рассеиваемая СВЧ-мощность: 5 мВт;
• Импульсная рассеиваемая мощность: 300 мВт;
• Температура окружающей среды: -60...+100 °С



D405B diode silicon mixing point.

Designed for use in frequency converters at a wavelength of 3 cm.
.
Type of diode and circuit connections are on the case.
Diodes straight polarity: D405, D405A, D405B.
Reverse polarity diodes: D405AP, D405BP.
Diodes, matched in pairs: D405AR, D405BR, D405APR, D405BPR.
Diode Weight not more than 4.5 grams.


The main technical parameters of microwave diode D405B:


• The rectified current is not less than 1 mA;
• The normalized noise figure: 8.5 dB;
• Output noise ratio: not more than 2;
• Standing Wave Ratio voltage: not more than 1.4;
• Output impedance: 300 ... 450 Ohm;
• Continuous dissipated microwave power: 5 mW;
• Pulse Power Dissipation: 300 mW;
• Ambient temperature: -60 ... + 100 ° C

---------------------------------------------------------------------------------------------------------------------------------------------------
